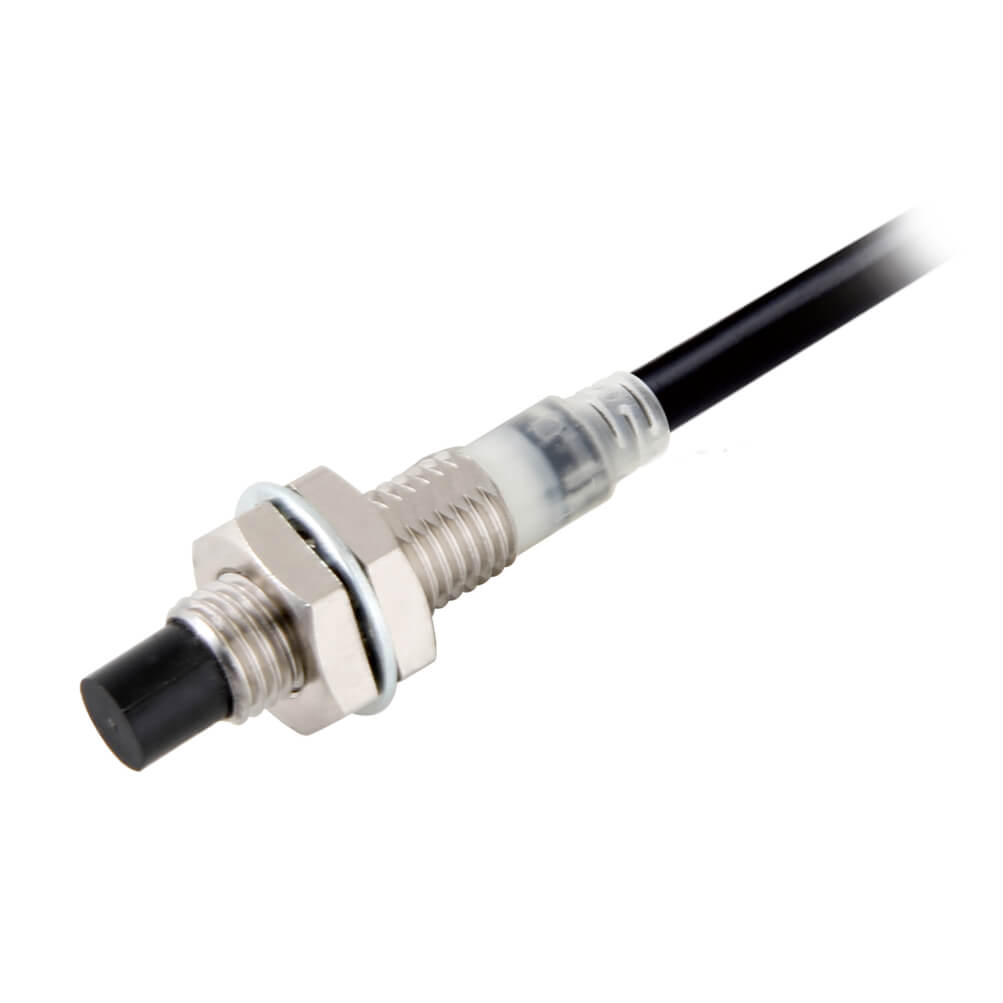

Omron E2E-X4MC18 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Sensing Distance | 4 mm |
| Mounting Type | Non-flush |
| Output Type | NPN Normally Open |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | Pre-wired Cable |
| Cable Length | 2 m |
| Housing Size | M8 |
| Housing Material | Stainless Steel |
| Response Frequency | 1 kHz |
| Protection Rating | IP67 / IP69K |
| Operating Temperature | -40°C to +85°C |
Technical Description
The Omron E2E-X4MC18 2M Inductive Proximity Sensor is a compact sensing device engineered for the detection of metallic objects in industrial environments. Its M8 cylindrical housing allows installation in space-constrained equipment while maintaining dependable sensing performance.
The Omron E2E-X4MC18 2M Inductive Proximity Sensor features a 4 mm sensing distance and an NPN normally open output. The integrated 2-meter cable offers a practical connection method for machinery where control components are located relatively close to the sensing point.
Working Principle
The sensor creates an electromagnetic field through an internal oscillator. When a metallic target enters the active sensing zone, induced eddy currents affect the field characteristics. The sensor electronics evaluate these changes and activate the output accordingly.
This operating principle enables highly repeatable detection without requiring physical contact. As a result, mechanical wear is minimized and maintenance requirements are reduced compared with contact-based detection methods.
Omron E2E-X4MC18 2M Usage Areas
- Automated assembly stations
- Machine tool positioning
- Part presence detection
- Metal fixture monitoring
- Conveyor control systems
- Pneumatic cylinder feedback
- Production line automation
- Material transfer equipment
The Omron E2E-X4MC18 2M Inductive Proximity Sensor is commonly used wherever metallic object detection must be performed consistently within limited installation space.
Industrial Applications
Manufacturing Equipment
Machine builders use the sensor to verify mechanical positions, detect workpieces, and monitor moving assemblies.
Assembly Lines
The sensor can confirm component presence before fastening, inspection, or transfer operations.
Robotic Cells
Metal fixture and gripper position verification can be performed using non-contact sensing technology.
Packaging Machinery
Detection of metal machine elements supports coordinated machine movement and process sequencing.
Omron E2E-X4MC18 2M Advantages
- Compact M8 cylindrical housing
- Reliable metal detection technology
- 2-meter integrated cable connection
- High environmental resistance
- IP67 and IP69K protection ratings
- Stainless-steel construction
- Suitable for demanding industrial environments
- Fast response performance for automation systems
Sector-Specific Usage Examples
In automated electronics assembly systems, the sensor can verify fixture placement before precision assembly processes begin. In machinery used for component manufacturing, it can monitor actuator positions throughout repetitive operating cycles.
In logistics equipment, the sensor can detect metallic transfer carriers arriving at defined positions. In packaging operations, it can confirm the movement of metal machine parts used in product transport systems.
Product Selection Considerations
- Output compatibility with PLC inputs
- Target material and dimensions
- Available installation space
- Environmental protection requirements
- Cable routing distance
- Required response speed
- Mounting configuration
- Maintenance accessibility
Engineers should ensure sufficient clearance around the sensing face because the Omron E2E-X4MC18 2M Inductive Proximity Sensor is designed for non-flush installation.
For additional sensor technologies and related product families, visit Omron sensor solutions.
Frequently Asked Questions
What is the sensing distance?
The rated sensing distance is 4 mm.
Which output type does this model provide?
It uses an NPN normally open output configuration.
What is the cable length?
The integrated cable length is 2 meters.
Can the sensor detect non-metallic objects?
No. Inductive sensing technology is designed primarily for metallic targets.
Is the housing suitable for industrial environments?
Yes. The stainless-steel housing supports industrial use in demanding conditions.
What protection ratings are available?
The sensor is rated IP67 and IP69K.
Does the sensor require contact with the target?
No. Detection occurs through electromagnetic field interaction.
Where is this sensor commonly installed?
It is commonly installed in assembly machinery, packaging systems, robotic cells, conveyors, and manufacturing equipment.
