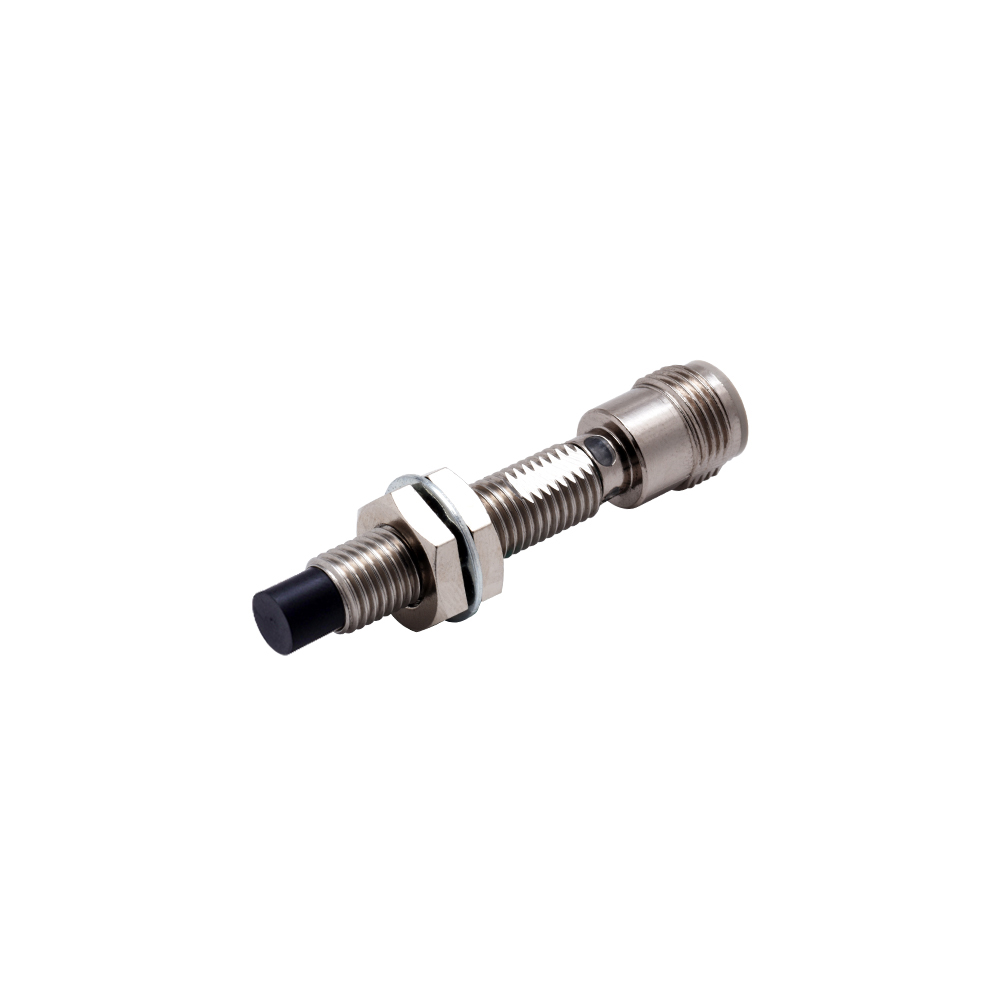

Omron E2E-X4MB3DL8-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Size | M8 |
| Mounting Type | Non-flush |
| Sensing Distance | 4 mm |
| Output Type | IO-Link, PNP |
| Operation Mode | Normally Open and Normally Closed |
| Connection Method | M12 Connector |
| Overall Length | 53 mm |
| Thread Length | 30 mm |
| Housing Material | Stainless Steel |
| IO-Link Baud Rate | COM2, 38.4 kbps |
| Protection Rating | IP67 / IP69K |
Technical Description
The Omron E2E-X4MB3DL8-M1 Inductive Proximity Sensor is an M8 non-flush inductive sensor with IO-Link communication and PNP output capability. It is designed for metal target detection while also supporting data-oriented integration in automation systems.
This model provides a 4 mm sensing distance and uses a stainless-steel housing suitable for demanding machine environments. Unlike conventional switching-only proximity sensors, the Omron E2E-X4MB3DL8-M1 Inductive Proximity Sensor supports IO-Link COM2 communication, allowing compatible control systems to access diagnostic and device-related information.
Working Principle
The sensor creates an electromagnetic field at the active sensing surface. When a metallic target approaches, the field changes due to eddy current losses in the metal. The sensor electronics evaluate this change and produce an output signal.
With IO-Link capability, the sensor can also exchange structured data with an IO-Link master. This can support device identification, parameter management, and maintenance-oriented diagnostics depending on the system architecture.
Usage Areas
This sensor is suitable for machines where metal detection and data visibility are both required. It can be integrated into PLC systems, IO-Link masters, distributed I/O stations, and condition-monitoring architectures.
- Metal position detection in automated assembly
- Smart sensor integration through IO-Link masters
- Machine condition monitoring support
- Robotic cell reference position detection
- Tooling presence confirmation
- Compact conveyor positioning
- Production line changeover assistance
- Maintenance data collection in industrial networks
Industrial Applications
In automotive production, the sensor can verify metal fixture positions while IO-Link communication supports structured sensor identification during maintenance. In flexible manufacturing systems, it can help reduce setup errors by enabling device-level parameter visibility.
In logistics automation, the sensor may be used on compact transfer modules where metal carriers or mechanical stops must be detected. In machine building, it can be applied in modular equipment where diagnostic access simplifies service operations.
Advantages
- Inductive metal detection without physical contact
- IO-Link COM2 communication support
- PNP output with normally open and normally closed operation
- Compact M8 body with stainless-steel housing
- M12 connector for industrial cabling compatibility
- IP67 and IP69K protection ratings
- Useful for machines requiring sensor diagnostics
- Suitable for modern PLC and remote I/O architectures
Sector-Specific Usage Examples
In a robotic welding fixture, the sensor can confirm clamp position before the weld sequence begins. In a modular packaging machine, it can detect the position of a metal indexing element and provide device-level information through IO-Link.
In a machining cell, it can verify that a metal workpiece support or guard element is in the expected position. In automated assembly, it can be used for component nest detection where repeatable switching and service data are both relevant.
Selection Considerations
Before selecting this model, engineers should confirm that the control system supports PNP inputs or IO-Link communication through a compatible master. The M12 connector layout should be reviewed against existing cabling standards.
Because this is a non-flush sensor, surrounding metal clearance must be considered. Target size, material, approach direction, switching margin, and installation tolerance should be evaluated during machine design.
Omron E2E-X4MB3DL8-M1 For related sensor families, see Omron sensor series.
Omron E2E-X4MB3DL8-M1 Frequently Asked Questions
What is the main function of the Omron E2E-X4MB3DL8-M1?
It detects metallic targets using inductive sensing and supports IO-Link communication for compatible automation systems.
What is the sensing distance?
The rated sensing distance is 4 mm.
Does this model support IO-Link?
Yes. It supports IO-Link COM2 communication at 38.4 kbps.
What output type is available?
The sensor provides IO-Link and PNP output capability.
What operation modes are supported?
This model supports normally open and normally closed operation.
Which connector is used?
It uses an M12 connector.
Is it suitable for harsh industrial areas?
The stainless-steel housing and IP67/IP69K ratings make it suitable for many demanding machine environments.
What should be checked before using IO-Link?
The system must include a compatible IO-Link master, suitable cabling, and controller configuration for device communication.
