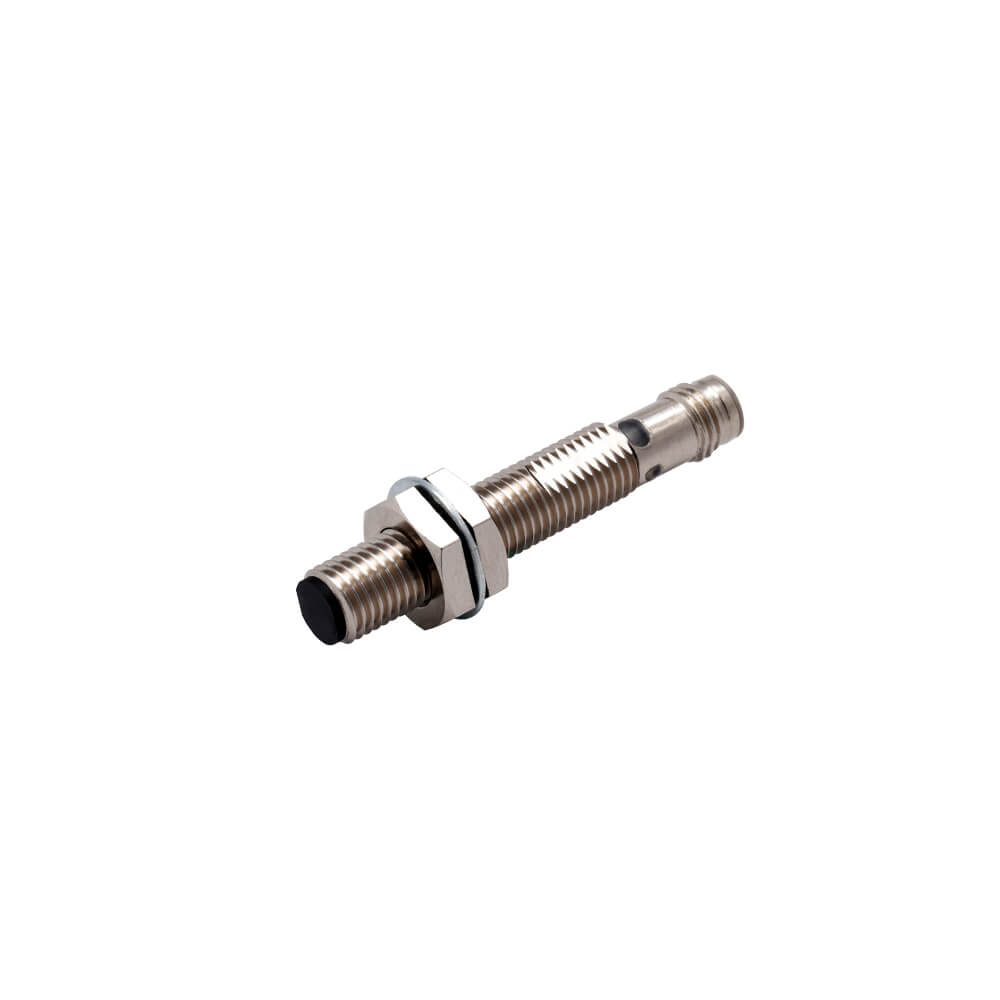

Omron E2E-X4C1L8-M5 Inductive Proximity Sensor

Technical Description

The Omron E2E-X4C1L8-M5 Inductive Proximity Sensor is a cylindrical inductive sensor developed for reliable metallic object detection in industrial automation systems. As part of the E2E NEXT product family, it incorporates enhanced sensing stability, environmental resistance, and long-term operational reliability in a compact M8 housing.

Unlike connector-based variants, this model features an integrated 5-meter cable, making it suitable for installations where the control cabinet or junction box is located at a greater distance from the sensing point. The extended cable design can simplify machine wiring layouts and reduce the need for additional connection accessories.

The Omron E2E-X4C1L8-M5 Inductive Proximity Sensor combines a 4 mm sensing distance with an NPN normally open output, supporting integration into various PLC-controlled automation architectures.

Working Principle

The sensing face generates a high-frequency electromagnetic field. When a conductive metallic target enters this field, induced eddy currents create energy losses that affect the internal oscillator circuit.

The sensor continuously evaluates these changes. Once the detection threshold is reached, the output switches state and communicates the presence of the target to the connected controller.

This non-contact operating method eliminates physical wear between the sensing device and the detected object, supporting stable performance over extended operating periods.

Construction and Performance Characteristics

Extended Wiring Capability

The integrated 5-meter cable is advantageous in large machinery, conveyor systems, and distributed automation installations where sensor locations are physically separated from control hardware.

Compact Cylindrical Design

The M8 threaded housing enables installation in restricted spaces while maintaining a practical sensing distance for metallic targets.

Environmental Protection

With IP67 and IP69K protection ratings, the sensor is suitable for environments exposed to water spray, dust accumulation, and routine industrial cleaning procedures.

High Switching Frequency

A response frequency of up to 700 Hz allows the sensor to detect rapidly moving metallic components in dynamic automation processes.

Applications

The Omron E2E-X4C1L8-M5 Inductive Proximity Sensor is widely used for position monitoring, object verification, and machine feedback functions.

• Automated conveyor systems
• Machine tool positioning
• Part transfer equipment
• Packaging machinery
• Industrial assembly lines
• Material sorting systems
• Metal component verification
• Automated handling stations

Industrial Application Areas

In logistics automation systems, the sensor can monitor the position of metallic carriers, guide mechanisms, and transfer devices. Its long cable length is particularly useful when sensing points are distributed throughout extensive conveyor layouts.

Food and beverage equipment manufacturers may use inductive sensing for machine position feedback where sealed sensor construction is required due to cleaning procedures.

In machine-building projects, engineers often install the Omron E2E-X4C1L8-M5 Inductive Proximity Sensor for end-position confirmation of actuators, slides, and moving mechanical assemblies.

For additional industrial sensing technologies and related products, users may explore Omron sensor series.

Advantages

• Long 5-meter cable reduces wiring complexity
• Reliable metallic object detection
• Compact M8 installation footprint
• Non-contact operation minimizes wear
• High environmental protection ratings
• Suitable for demanding industrial environments
• Compatible with common automation platforms
• Supports high-speed machine operation

Sector-Based Usage Examples

Warehouse Automation

Used for monitoring metallic transport mechanisms and positioning devices within automated material flow systems.

Packaging Industry

Provides switching feedback for machine components operating at high cycle rates.

Industrial Machinery

Supports actuator position confirmation and machine sequencing tasks.

Metal Processing Facilities

Detects workpiece carriers and mechanical components throughout production workflows.

Factors to Consider During Selection

• Verify compatibility with NPN input modules.
• Confirm that metallic targets fall within the sensing range.
• Evaluate available mounting space for the M8 housing.
• Consider cable routing requirements and environmental exposure.
• Check required response speed for the application.
• Review installation conditions near surrounding metal structures.

The Omron E2E-X4C1L8-M5 Inductive Proximity Sensor is particularly suitable for automation systems that require a compact inductive sensor with extended cable reach and reliable detection performance.

Frequently Asked Questions

1. What objects can this sensor detect?

The sensor is designed for detecting metallic objects without physical contact.

2. What is the rated sensing distance?

The rated sensing distance is 4 mm.

3. Which output type does the sensor provide?

It uses an NPN normally open output configuration.

4. What supply voltage range is supported?

The sensor operates from 10 to 30 VDC.

5. What makes this model different from connector versions?

This version includes a factory-attached 5-meter cable rather than an M12 connector.

6. Is it suitable for harsh industrial environments?

Yes. IP67 and IP69K protection ratings support operation in demanding industrial conditions.

7. Can it be used on high-speed machinery?

Its response frequency of 700 Hz supports many fast-cycle industrial applications.

8. Where is the Omron E2E-X4C1L8-M5 Inductive Proximity Sensor commonly installed?

It is frequently used in conveyors, packaging machines, industrial automation systems, and machine-building projects.
