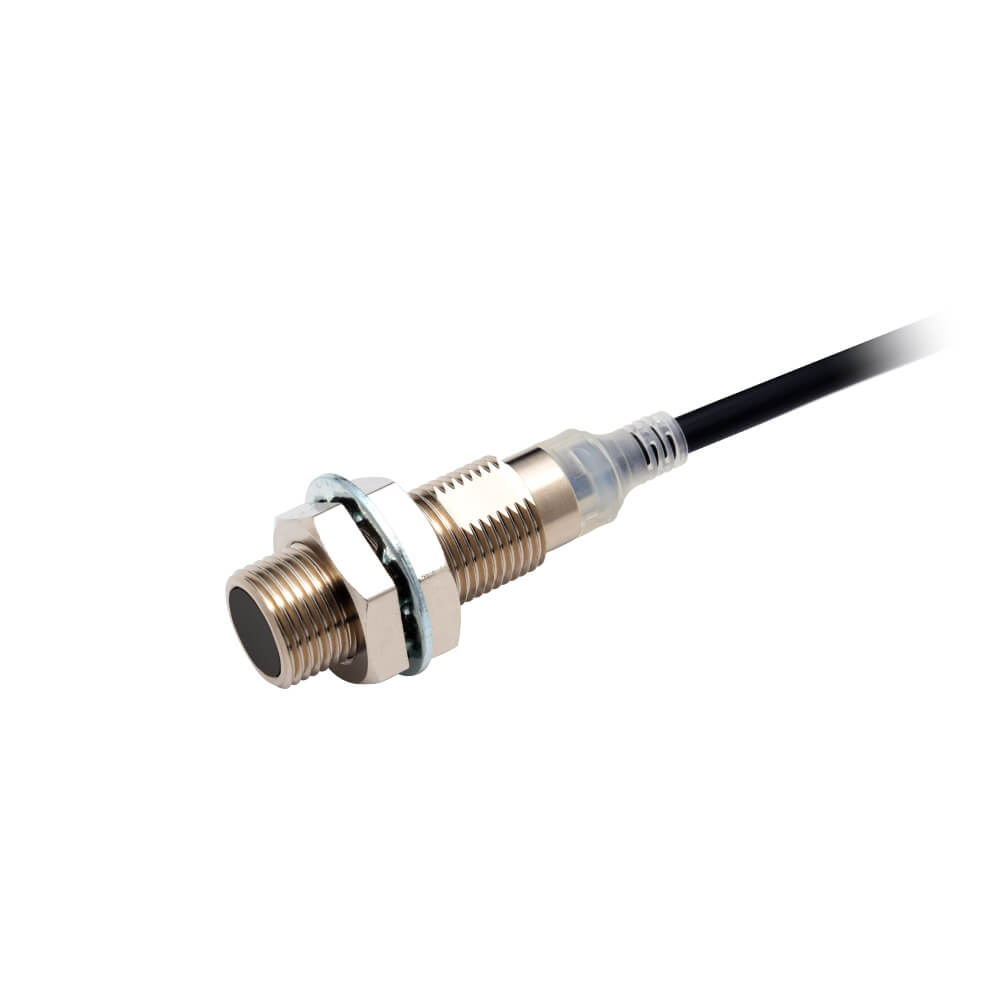

Omron E2E-X4B3D12 2M Inductive Proximity Sensor

Technical Overview

The Omron E2E-X4B3D12 2M Inductive Proximity Sensor is a cylindrical M12 sensing device designed for non-contact detection of metallic targets in industrial automation systems. As part of the E2E NEXT family, it combines a compact mechanical design with advanced sensing technology and integrated IO-Link communication capabilities.

This sensor features a 4 mm sensing distance and a shielded sensing structure, allowing installation in confined machinery layouts while maintaining stable detection characteristics. The nickel-plated brass housing provides mechanical durability, while the oil-resistant PVC cable supports installation in environments exposed to lubricants, coolants, and routine washdown procedures.

The Omron E2E-X4B3D12 2M Inductive Proximity Sensor is commonly integrated into machine automation platforms where accurate position monitoring and digital sensor diagnostics are required.

Working Principle

Inductive proximity sensors operate by generating an electromagnetic field from the sensing face. When a conductive metal object enters this field, eddy currents are induced within the target material. These currents alter the oscillator characteristics inside the sensor.

The internal electronics continuously monitor these changes and switch the output state when the target reaches the specified sensing range. The sensor supports both normally open and normally closed output functions, offering flexibility during system design.

In addition to standard switching operation, IO-Link communication enables process data exchange, parameter configuration, diagnostics, and condition monitoring through compatible controllers and IO-Link masters.

Key Features and Functional Characteristics

Reliable Metal Detection

The 4 mm sensing distance allows accurate detection of metallic machine components, workpieces, fixtures, and moving assemblies while reducing the likelihood of physical contact between the target and sensing surface.

Advanced Protection Ratings

The combination of IP67, IP67G, and IP69K protection ratings supports operation in environments exposed to water spray, dust, oil contamination, and frequent cleaning procedures.

Integrated IO-Link Communication

IO-Link functionality provides access to sensor status information, parameter settings, maintenance data, and operational diagnostics. This supports predictive maintenance strategies and improved equipment visibility.

Compact Mechanical Design

The M12 threaded housing simplifies installation in machine frames, transfer systems, conveyors, and assembly equipment where space is limited.

Application Areas

• Automated assembly systems
• Packaging machinery
• Material handling equipment
• Conveyor positioning systems
• Robotic manufacturing cells
• Metal processing machinery
• Automotive production lines
• Machine tool installations

The Omron E2E-X4B3D12 2M Inductive Proximity Sensor is frequently used to monitor component presence, end positions, machine states, and mechanical movement within automated production environments.

Omron E2E-X4B3D12 2M Industrial Applications

Automotive Manufacturing

Production systems use inductive sensors to verify fixture positions, confirm part presence, and monitor automated transfer mechanisms throughout assembly operations.

Packaging and Logistics

Packaging machines rely on proximity sensors for actuator position feedback, carton transport verification, and product indexing functions.

Machine Building

OEM equipment manufacturers incorporate inductive sensors to provide reliable position sensing without mechanical wear, improving overall machine reliability.

Metalworking Facilities

The robust housing and high ingress protection make the sensor suitable for environments containing cutting fluids, metal particles, and vibration.

Omron E2E-X4B3D12 2M Advantages

• Non-contact detection reduces mechanical wear
• Compact M12 design simplifies integration
• IO-Link enables diagnostics and parameterization
• Multiple protection ratings support harsh environments
• Oil-resistant cable construction improves durability
• PNP NO+NC output configuration increases flexibility
• Fast switching performance supports dynamic machinery
• Nickel-plated brass housing provides mechanical strength

Sector-Specific Use Examples

• Detecting pallet stop positions in warehouse automation systems
• Monitoring metal carriers in transfer lines
• Position verification in robotic welding cells
• Detecting fixture locking mechanisms in assembly stations
• Monitoring indexing tables in manufacturing equipment
• Detecting machine guard positions for process control

Omron E2E-X4B3D12 2M Considerations When Selecting This Sensor

When specifying an inductive proximity sensor, engineers should evaluate target material characteristics, available mounting space, environmental conditions, communication requirements, and required sensing distance.

The Omron E2E-X4B3D12 2M Inductive Proximity Sensor is particularly suitable when an M12 shielded sensor with IO-Link communication, 4 mm sensing capability, and high environmental protection is required.

For additional sensing technologies and related products, explore Omron sensor product ranges.

Frequently Asked Questions

What type of sensor is the E2E-X4B3D12 2M?

It is an inductive proximity sensor designed for non-contact detection of metallic objects.

What is the sensing distance?

The rated sensing distance is 4 mm.

Does the sensor support IO-Link?

Yes. It supports IO-Link communication with COM2 transmission speed.

What output configuration does it provide?

The sensor provides PNP outputs with both normally open and normally closed operating modes.

What is the cable length?

The pre-wired cable length is 2 meters.

Can it operate in washdown environments?

Yes. IP69K protection supports operation in demanding washdown conditions.

Which industries commonly use this sensor?

Automotive, packaging, logistics, machine building, and metal processing industries frequently use this model.

What housing material is used?

The sensor housing is manufactured from nickel-plated brass for improved mechanical durability.

Can the sensor be used for predictive maintenance systems?

Yes. IO-Link communication enables access to diagnostic and status information that can support maintenance planning.
