Omron E2E-X4B2L8-M1 Inductive Proximity Sensor

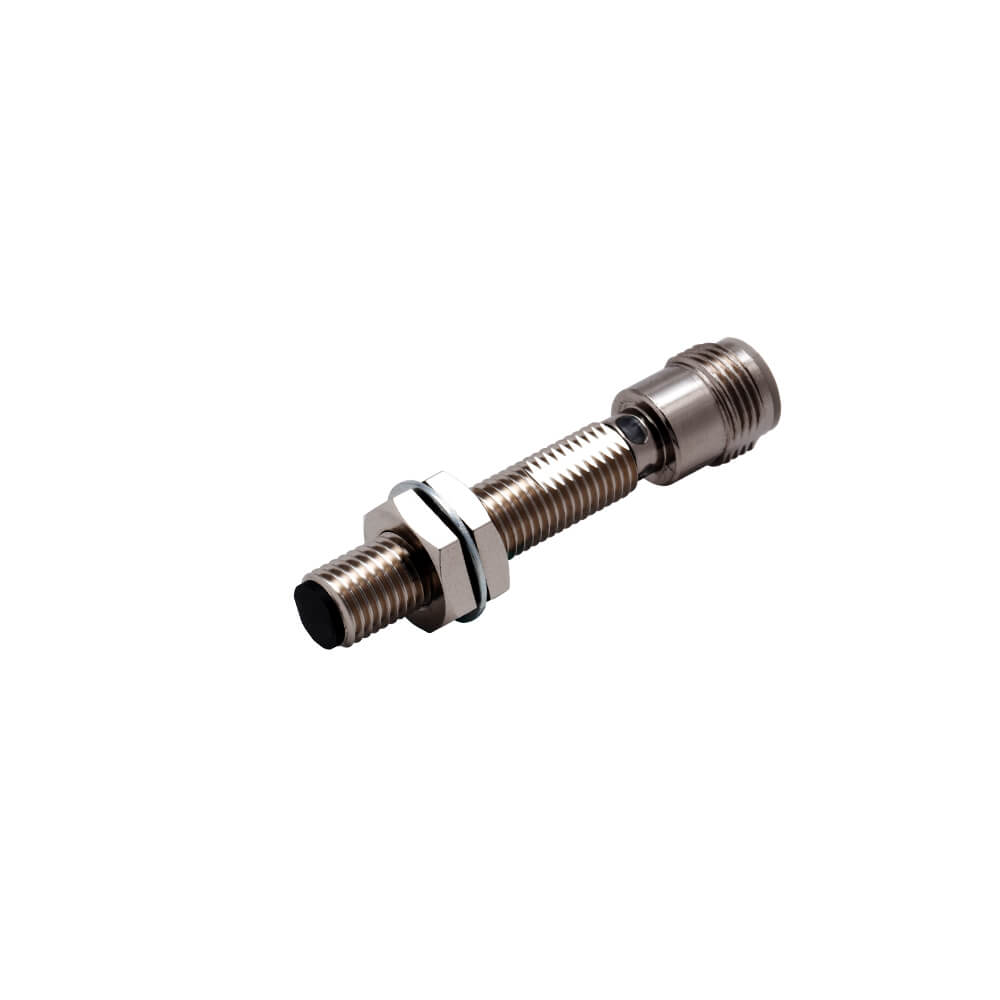

The Omron E2E-X4B2L8-M1 Inductive Proximity Sensor is an M8 cylindrical sensor designed for non-contact detection of ferrous metal targets in industrial automation systems. With a 4 mm sensing distance, PNP output, normally closed switching logic, and M12 connector interface, it is suitable for compact machine areas where reliable metal presence detection is required.

Technical Description

This sensor belongs to the Omron E2E NEXT family and uses a nickel-plated brass housing with a shielded, quasi-flush mounting structure. The M8 format allows installation in restricted mechanical spaces, while the M12 connector supports structured wiring in control panels, junction boxes, and distributed I/O systems.

The device operates from 10 to 30 VDC and provides a PNP normally closed output. In practical terms, the output state changes when a suitable metal object enters the sensing zone. This makes the sensor useful for detecting machine position, confirming part presence, monitoring actuator travel, and verifying metal workpiece alignment.

Operating Principle

Inductive proximity sensors generate a high-frequency electromagnetic field at the sensing face. When a ferrous metal target approaches this field, eddy currents are induced in the target surface. These currents reduce the oscillation energy inside the sensor circuit. The internal electronics evaluate this change and switch the output when the target reaches the defined operating distance.

Because the sensing method is contactless, there is no mechanical wear between the sensor and the target. This is important in repetitive machine cycles, especially where limit switches may be exposed to vibration, coolant mist, oil residue, or frequent actuator movement.

Omron E2E-X4B2L8-M1 Usage Areas

• Metal part presence detection on assembly stations
• Cylinder and actuator end-position monitoring
• Tool seating confirmation in compact fixtures
• Index table position verification
• Conveyor stop-point detection for metal carriers
• Machine guarding feedback where metal flags are used

Industrial Applications

In packaging machinery, the sensor can be used to confirm the position of metal guide elements or indexing mechanisms. In metalworking equipment, it may detect fixture closure or workpiece presence before a machining cycle begins. In automated handling systems, the 4 mm sensing range supports repeatable detection of brackets, cams, stops, or small metal targets.

Omron E2E-X4B2L8-M1 For related product families and compatible sensing solutions, Omron sensor products can be reviewed as part of a broader automation component selection process.

Advantages in Engineering Use

• Compact M8 body for limited installation space
• 4 mm sensing distance for shielded metal detection
• PNP normally closed output for common DC control architectures
• M12 connector for serviceable field wiring
• IP67 and IP69K ratings for demanding industrial environments
• Nickel-plated brass housing for mechanical durability

Sector-Based Use Examples

Automotive Fixtures

The sensor can verify whether a metal clamp has reached its intended position before a welding or assembly step is allowed to continue.

Food and Packaging Equipment

When installed away from direct product contact, the IP69K rating supports use in machinery areas exposed to intensive cleaning processes.

Material Handling Systems

The sensor can monitor metal pallets, transfer plates, or stopper mechanisms in conveyor-based automation lines.

Selection Considerations

When selecting this model, engineers should confirm the target material, sensing distance, wiring logic, controller input type, available installation depth, and environmental exposure. The Omron E2E-X4B2L8-M1 Inductive Proximity Sensor should be selected where PNP NC output behavior, M8 mounting, M12 connection, and 4 mm sensing distance match the electrical and mechanical design requirements.

Omron E2E-X4B2L8-M1 Frequently Asked Questions

What does this sensor detect?

It detects ferrous metal objects without physical contact by using an inductive electromagnetic field.

What is the sensing distance?

The rated sensing distance is 4 mm under specified target conditions.

Is the output normally open or normally closed?

This model has a normally closed PNP output.

Can it be connected to a PLC?

Yes, it can be connected to compatible DC PLC input modules that accept PNP sensor signals.

What type of connector does it use?

It uses an M12 connector, which supports modular wiring and easier replacement during maintenance.

Is it suitable for wet environments?

The sensor has IP67 and IP69K ratings, but installation conditions, connector sealing, and cable routing must be correctly managed.

What should be checked before installation?

Engineers should verify target size, mounting clearance, supply voltage, output logic, connector orientation, and mechanical protection.

Does it support contactless operation?

Yes. The sensing method does not require physical contact with the metal target, reducing mechanical wear in repetitive applications.
