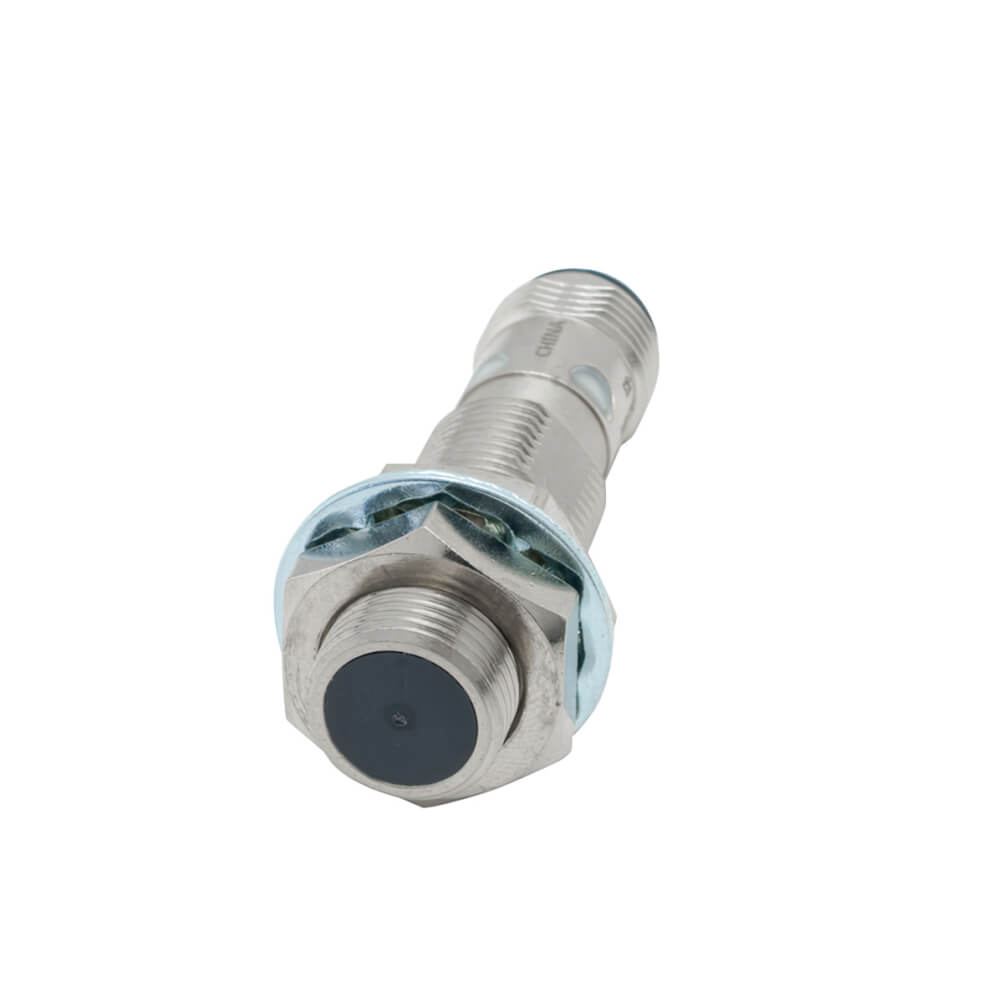

Omron E2E-X4B212-M1 Inductive Proximity Sensor

The Omron E2E-X4B212-M1 Inductive Proximity Sensor is designed for industrial applications requiring accurate metallic object detection and flexible wiring arrangements. Equipped with an M12 connector interface, this model simplifies installation, replacement, and maintenance procedures in automated systems. Its compact cylindrical design allows integration into machinery where installation space is limited while maintaining stable sensing performance.

Technical Description

The Omron E2E-X4B212-M1 Inductive Proximity Sensor belongs to the E2E NEXT family, a series developed for consistent sensing performance in demanding industrial environments. The sensor uses electromagnetic induction to identify metallic objects without physical contact. This operating principle eliminates mechanical wear and supports long service life in applications involving frequent machine cycles.

With a rated sensing distance of 4 mm and a shielded sensing structure, the sensor can be mounted close to surrounding metal surfaces while maintaining predictable detection characteristics.

How the Sensor Operates

The sensing face continuously emits a high-frequency electromagnetic field. When a conductive metallic target enters the detection zone, eddy currents are generated within the object. These currents absorb energy from the oscillation field, creating a measurable change in the sensor’s internal circuitry.

The electronics process this variation and switch the output signal accordingly. In the Omron E2E-X4B212-M1 Inductive Proximity Sensor, the PNP normally closed output changes state whenever a valid metallic target is detected.

This method enables reliable position detection without requiring physical contact between the sensor and the target.

Main Features

• 4 mm sensing distance
• Compact M12 cylindrical housing
• PNP normally closed output
• M12 connector connection system
• 10 to 30 VDC operating range
• 1 kHz response frequency
• IP67 and IP69K protection ratings
• Nickel-plated brass housing construction
• Suitable for automated machinery
• Designed for industrial environments

Common Areas of Use

The Omron E2E-X4B212-M1 Inductive Proximity Sensor is frequently installed in automated production systems that require dependable metallic target detection.

• Assembly automation equipment
• Conveyor monitoring systems
• Automated packaging machines
• Machine tool applications
• Material transfer equipment
• Industrial robotic systems
• Pallet handling stations
• Manufacturing process control systems

The M12 connector design is particularly beneficial in facilities where sensors must be replaced quickly to reduce maintenance time.

Industrial Application Examples

Automotive Production Facilities

Manufacturers use inductive sensors to verify fixture positions, monitor component carriers, and confirm actuator movement during automated assembly operations.

Electronics Manufacturing

Production equipment often requires compact sensors for detecting metallic tooling components and positioning mechanisms within precision assembly stations.

Packaging Automation

Packaging systems use proximity sensors to monitor indexing mechanisms, metal guides, and moving machine parts that support continuous production cycles.

Material Handling Systems

Transfer stations and conveyor networks rely on inductive sensing technology to monitor moving carriers and metallic positioning components.

Advantages of the Omron E2E-X4B212-M1 Inductive Proximity Sensor

• Quick replacement through connectorized installation
• Reduced downtime during maintenance activities
• Non-contact sensing operation
• Resistance to vibration and mechanical wear
• High environmental protection levels
• Stable sensing performance over time
• Suitable for high-cycle industrial applications
• Compatibility with modern PLC systems

The Omron E2E-X4B212-M1 Inductive Proximity Sensor is often selected for machine designs where serviceability and efficient maintenance procedures are important engineering considerations.

Additional sensing technologies can be explored through Omron sensor products when developing comprehensive automation solutions.

Sector-Specific Usage Scenarios

• Detecting clamp positions in automated assembly lines
• Monitoring metal carriers in conveyor systems
• Verifying actuator travel limits in machine tools
• Position sensing in packaging equipment
• Tracking shuttle movement in logistics systems
• Monitoring transfer mechanisms in production cells

Factors to Consider During Product Selection

Several technical factors should be reviewed before integrating the sensor into a control system.

• Required sensing range
• Target material properties
• Output configuration requirements
• Environmental exposure conditions
• Connector compatibility
• Machine cycle frequency
• Available mounting space
• PLC input specifications

Careful evaluation of these parameters helps ensure optimal performance throughout the equipment lifecycle.

Frequently Asked Questions

Omron E2E-X4B212-M1 What type of connection does this model use?

The sensor is equipped with an M12 connector connection system.

What is the rated sensing distance?

The rated sensing distance is 4 mm.

What output configuration is provided?

The sensor uses a PNP normally closed output.

What supply voltage is required?

The operating voltage range is 10 to 30 VDC.

Omron E2E-X4B212-M1 Can the sensor detect non-metallic materials?

No. The sensing principle is designed specifically for metallic targets.

What protection ratings are available?

The sensor is rated IP67 and IP69K.

Where is the Omron E2E-X4B212-M1 Inductive Proximity Sensor commonly used?

It is commonly installed in packaging machinery, robotics, assembly equipment, machine tools, and conveyor systems.

What benefit does the connector version provide?

The connector interface simplifies installation and enables faster sensor replacement during maintenance.

Is the sensor suitable for washdown environments?

Yes. Its IP69K protection rating supports operation in environments requiring intensive cleaning procedures.

What housing material is used?

The housing is manufactured from nickel-plated brass for durability and resistance to industrial conditions.
