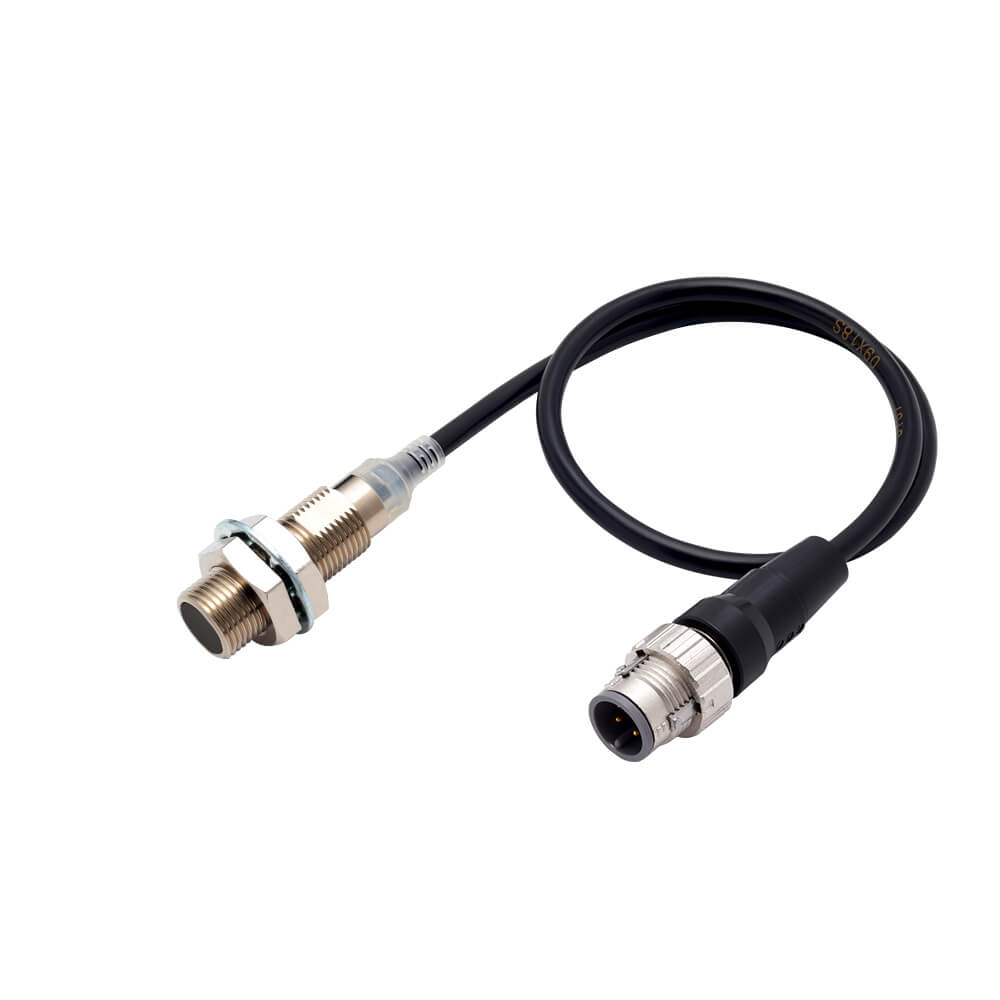

Omron E2E-X4B1T12-M1TJ 0.3M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Sensing Distance | 4 mm |
| Housing Size | M12 |
| Output Type | PNP Normally Open (NO) |
| Communication | IO-Link COM3 |
| Operating Voltage | 10 to 30 VDC |
| Protection Rating | IP67, IP67G, IP69K |
| Housing Material | Nickel-Plated Brass |
| Connection Style | SmartClick Pigtail Connector |
| Cable Length | 0.3 m |
| Operating Temperature | -25°C to +70°C |
Technical Description
The Omron E2E-X4B1T12-M1TJ 0.3M Inductive Proximity Sensor is designed for industrial automation systems requiring compact sensor integration and flexible connectivity. Unlike traditional fixed cable models, this version incorporates a SmartClick pigtail connection that simplifies installation and maintenance activities while supporting modern machine architectures.
Featuring a shielded M12 cylindrical housing, the sensor provides a nominal sensing distance of 4 mm for metallic targets. The integration of IO-Link COM3 communication enables access to process information, diagnostics, and parameter management functions through compatible automation platforms.
How the Sensor Operates
The sensing mechanism is based on inductive technology. An electromagnetic field is generated at the active sensing surface. When a conductive metal object enters this field, eddy currents are induced in the target material.
The resulting changes within the sensor oscillator circuit are continuously monitored. Once the configured detection threshold is reached, the sensor activates its PNP normally open output signal.
Because there is no physical contact between the target and the sensing element, the Omron E2E-X4B1T12-M1TJ 0.3M Inductive Proximity Sensor provides reliable long-term operation with minimal mechanical wear.
Omron E2E-X4B1T12-M1TJ 0.3M Primary Application Areas
- Modular automation equipment
- Machine building projects
- Compact assembly systems
- Industrial robotics
- Automated production cells
- Packaging equipment
- Material positioning systems
- Flexible manufacturing platforms
The SmartClick connection system is particularly useful in applications where fast sensor replacement and simplified maintenance procedures are important operational requirements.
Industrial Usage Examples
Machine Building
Machine manufacturers often prefer connector-based sensor solutions because they reduce installation time and simplify service procedures. The SmartClick connection supports these requirements while maintaining reliable signal transmission.
Automated Assembly Stations
Assembly equipment can use the sensor to verify fixture positions, detect metal carriers, and confirm actuator movements during production sequences.
Robotic Handling Systems
Industrial robots frequently require compact sensors near grippers, positioning devices, and workpiece transfer mechanisms. The short pigtail design facilitates integration in limited installation spaces.
Omron E2E-X4B1T12-M1TJ 0.3M Flexible Manufacturing Cells
Production lines requiring periodic reconfiguration can benefit from connector-based sensor designs that support easier replacement and maintenance activities.
Advantages
- Compact M12 sensor housing
- SmartClick pigtail connectivity
- Reliable 4 mm sensing distance
- Integrated IO-Link COM3 communication
- High environmental protection ratings
- Nickel-plated brass construction
- Non-contact metal detection
- Simplified maintenance procedures
The Omron E2E-X4B1T12-M1TJ 0.3M Inductive Proximity Sensor supports digital manufacturing environments by enabling access to diagnostic and operational data through IO-Link networks.
Omron E2E-X4B1T12-M1TJ 0.3M Selection Considerations
When selecting a connector-based inductive sensor, engineers should evaluate environmental conditions, mounting requirements, communication needs, and maintenance accessibility.
The SmartClick pigtail configuration is particularly suitable for applications where rapid replacement or modular machine construction is required.
Proper evaluation of target size, material characteristics, and mounting clearances remains essential for achieving reliable detection performance.
Omron E2E-X4B1T12-M1TJ 0.3M For additional sensing technologies and related products, visit More Omron sensor solutions.
Frequently Asked Questions
What is the sensing distance?
The sensor provides a nominal sensing distance of 4 mm.
Does it support IO-Link communication?
Yes. The device supports IO-Link COM3 communication.
What is the output configuration?
The sensor uses a PNP normally open output.
What is the benefit of the SmartClick connection?
It simplifies installation, replacement, and maintenance procedures compared with permanently wired configurations.
Can the sensor operate in washdown environments?
Yes. It is rated IP67, IP67G, and IP69K.
What material is used for the housing?
The housing is manufactured from nickel-plated brass.
Where is the Omron E2E-X4B1T12-M1TJ 0.3M Inductive Proximity Sensor typically used?
The Omron E2E-X4B1T12-M1TJ 0.3M Inductive Proximity Sensor is commonly used in modular machinery, robotics, assembly equipment, and flexible automation systems.
How does the Omron E2E-X4B1T12-M1TJ 0.3M Inductive Proximity Sensor improve maintenance efficiency?
The Omron E2E-X4B1T12-M1TJ 0.3M Inductive Proximity Sensor utilizes a SmartClick connection system that allows faster replacement and reduced machine downtime.
,
