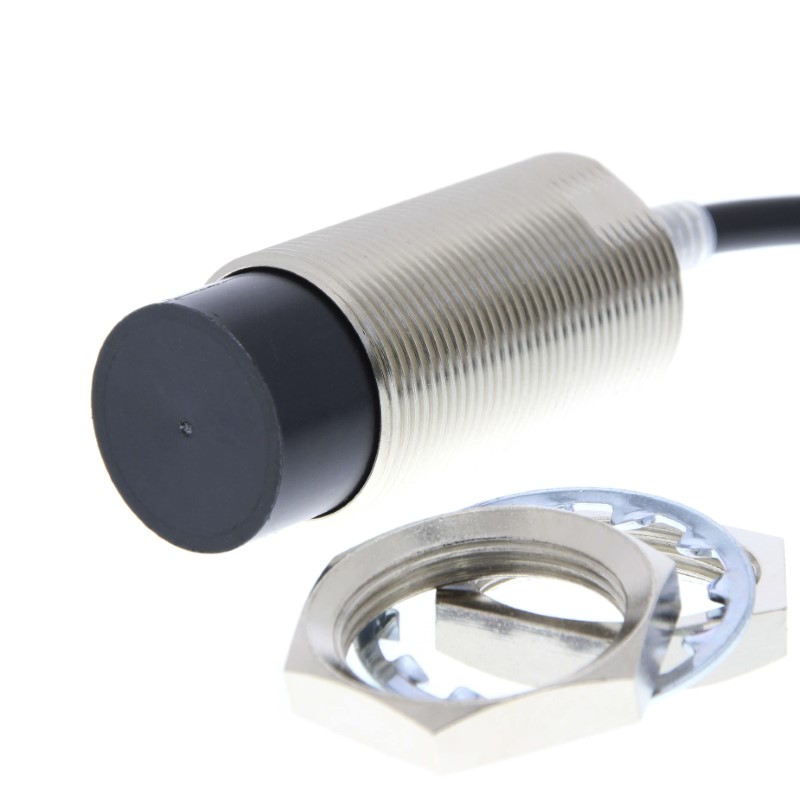

Omron E2E-X40MD1L30-T 5M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | Omron E2E NEXT |
| Housing Size | M30 |
| Sensing Distance | 40 mm |
| Mounting | Non-flush |
| Output Type | 3-wire DC PNP |
| Output Operation | Normally Open |
| Supply Voltage | 10 to 30 VDC |
| Cable Length | 5 m |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP67G / IP69K |
| Switching Frequency | 100 Hz |
| Operating Temperature | -25°C to +70°C |
Sensor Overview
The Omron E2E-X40MD1L30-T 5M Inductive Proximity Sensor is engineered for long-distance metal target detection in automated production environments. The combination of a 40 mm sensing range and a 5-meter cable provides installation flexibility in larger machines and production cells.
Its robust housing and environmental protection ratings support operation in manufacturing facilities where dust, moisture, and cleaning processes are part of daily operations.
Working Technology
The sensor generates a controlled electromagnetic field. When a conductive metal object enters the sensing area, energy transfer occurs through induced eddy currents. Internal circuitry evaluates these changes and activates the output signal accordingly.
The Omron E2E-X40MD1L30-T 5M Inductive Proximity Sensor performs this process continuously, allowing reliable monitoring of moving machine components and metallic workpieces.
Application Areas
- Automated conveyor systems
- Machine tool equipment
- Industrial robotics
- Metal fabrication lines
- Packaging automation
- Warehouse automation
- Transfer and indexing systems
- Production monitoring equipment
Industrial Benefits
- Extended sensing distance
- Long cable for flexible installation
- Reliable non-contact operation
- Reduced mechanical wear
- Stable detection performance
- Compatibility with PLC systems
- Durable industrial construction
For additional sensing technologies, engineers may review more Omron sensor solutions used in industrial automation environments.
Frequently Asked Questions
What sensing technology is used?
Inductive sensing technology for metallic object detection.
What is the sensing distance?
40 mm nominal sensing distance.
What output type is available?
3-wire DC PNP normally open output.
What cable length does this model include?
5 meters.
Can it operate in harsh environments?
Yes, the housing and protection ratings support industrial operation.
Which industries commonly use this sensor?
Automotive, packaging, logistics, metalworking and general automation industries.
How does the Omron E2E-X40MD1L30-T 5M Inductive Proximity Sensor detect targets?
It monitors changes in an electromagnetic field caused by nearby metallic objects.
Can the Omron E2E-X40MD1L30-T 5M Inductive Proximity Sensor be integrated into PLC systems?
Yes, it is commonly connected to industrial control systems.
