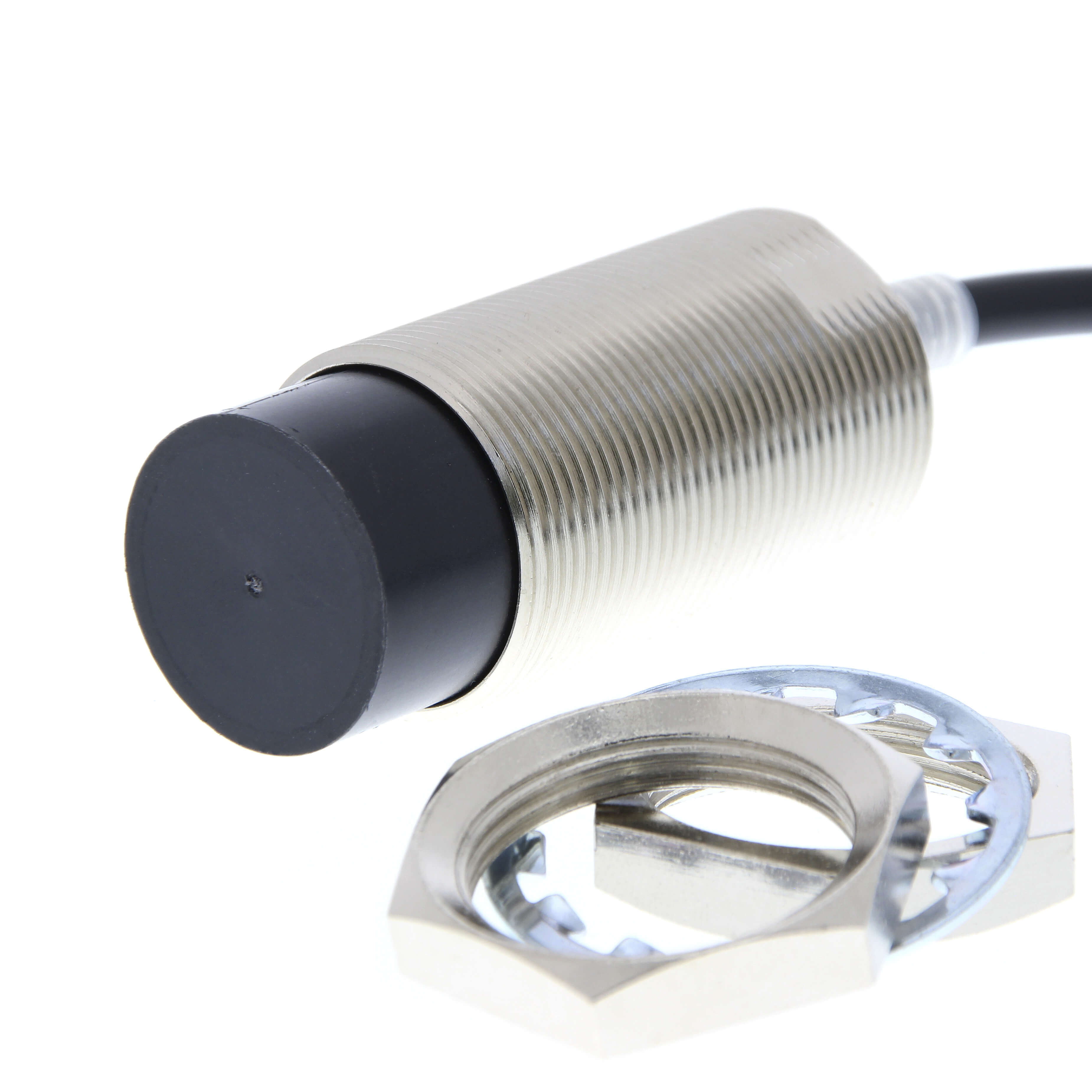

Omron E2E-X40MD1L30 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Size | M30 |
| Mounting Type | Non-flush |
| Sensing Distance | 40 mm |
| Output Type | 2-wire DC |
| Operation Mode | NO |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | Cable |
| Cable Length | 2 m |
| Cable Specification | PVC oil-resistant cable |
| Housing Material | Nickel-plated brass |
| Sensing Face Material | PBT |
| Thread Length | 50 mm |
| Overall Length | 82.3 mm |
| Protection Rating | IP67, IP67G, IP69K |
Technical Description
The Omron E2E-X40MD1L30 2M Inductive Proximity Sensor is an M30 cylindrical sensor designed for non-contact detection of metallic objects in industrial automation systems. It belongs to the E2E NEXT family and uses a non-flush sensing structure with a 40 mm detection distance. This makes it suitable for applications where the target cannot pass very close to the sensing face.
The nickel-plated brass housing provides mechanical strength, while the PBT sensing surface supports operation in demanding production environments. The 2 m oil-resistant PVC cable is useful for machine panels, conveyor frames, and compact equipment layouts where the cable route is short and controlled.
Operating Principle
Inductive proximity sensors generate an electromagnetic field from the sensing face. When a metallic target enters this field, eddy currents are created in the material. The sensor detects the change in oscillation and switches its normally open output.
The Omron E2E-X40MD1L30 2M Inductive Proximity Sensor does not require physical contact with the target. This helps reduce mechanical wear in repetitive detection tasks such as position confirmation, metal part presence detection, and machine cycle monitoring.
Application Areas
- Metal part detection on automated conveyors
- Position confirmation in machine tools
- Fixture detection in assembly equipment
- Actuator end-position monitoring
- Handling system position control
- Production line presence detection
Omron E2E-X40MD1L30 2M Industrial Use Cases
In automotive assembly, this sensor can detect steel brackets or fixture plates before a process step starts. In metalworking equipment, it can monitor the position of sliding tables, clamps, and transport arms. In packaging machinery, it can confirm the movement of metallic machine parts without relying on mechanical limit switches.
Omron E2E-X40MD1L30 2M For engineers comparing related models, Omron sensor products can be reviewed as part of a broader sensor selection process.
Advantages
- 40 mm long sensing distance for M30 installations
- Non-contact operation for reduced mechanical wear
- 2-wire DC output for simplified wiring
- Oil-resistant cable for industrial machine environments
- IP67, IP67G, and IP69K protection ratings
- Durable nickel-plated brass housing
Selection Considerations
Before selecting this model, engineers should confirm the target material, sensing distance, installation clearance, cable routing, supply voltage, and input compatibility of the controller. Because this is a non-flush sensor, sufficient free space around the sensing head must be considered during mechanical design.
Omron E2E-X40MD1L30 2M Frequently Asked Questions
What does this sensor detect?
It detects metallic objects using inductive sensing technology.
What is the sensing distance?
The rated sensing distance is 40 mm.
Is this model flush mountable?
No. It is a non-flush M30 inductive sensor.
What output type does it use?
It uses a 2-wire DC output with normally open operation.
What is the cable length?
This version has a 2 m cable.
Omron E2E-X40MD1L30 2M Can it be used in wet environments?
Yes. It has IP67, IP67G, and IP69K protection ratings.
What housing material is used?
The housing is nickel-plated brass.
Where is the Omron E2E-X40MD1L30 2M Inductive Proximity Sensor commonly used?
It is commonly used in conveyors, machine tools, automated fixtures, and industrial handling systems.
