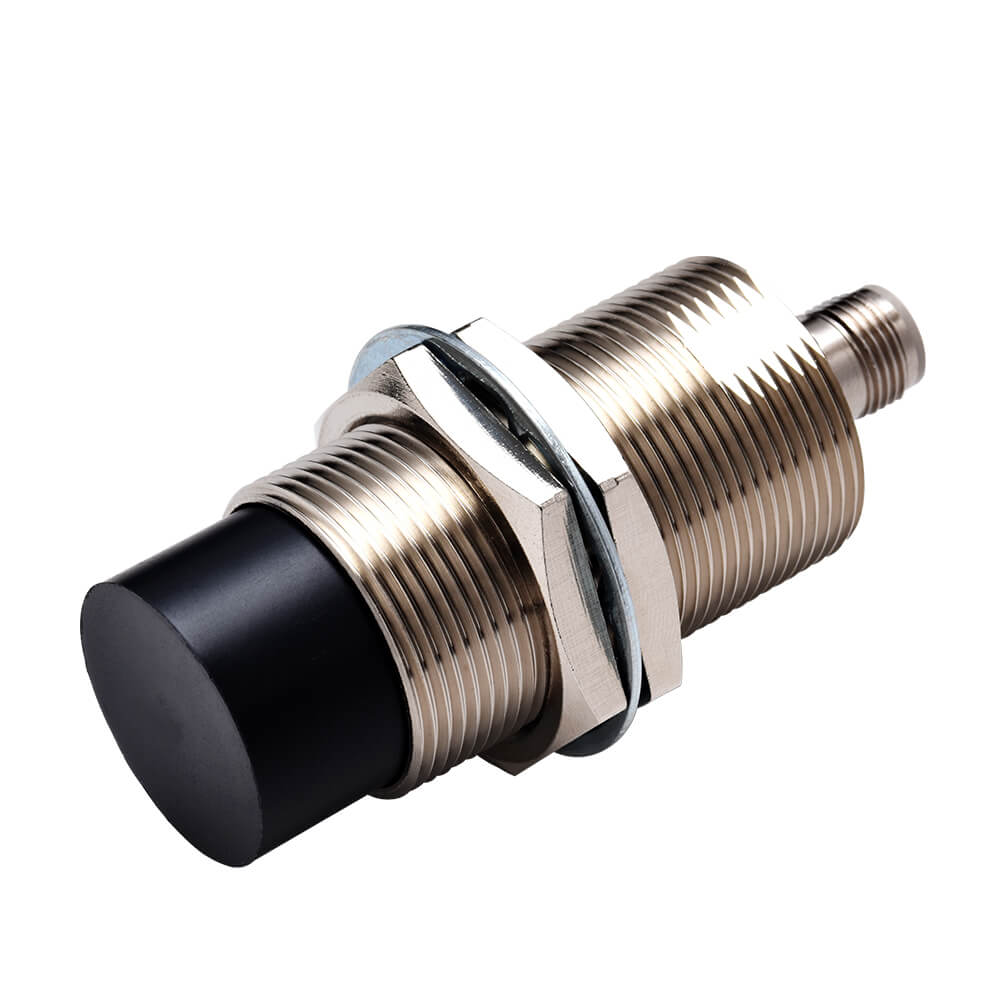

Omron E2E-X40MB3DL30-M1 Inductive Proximity Sensor

Introduction to the Sensor

Reliable object detection plays a critical role in modern industrial automation. The Omron E2E-X40MB3DL30-M1 Inductive Proximity Sensor is designed to detect metallic targets without direct physical contact, supporting stable machine operation and accurate process control. Its combination of long sensing distance, rugged housing, and connector-based installation makes it suitable for a wide variety of industrial environments.

As part of the Omron E2E family, this sensor is engineered for position monitoring, machine sequencing, material handling systems, and automated production equipment. The device offers a 40 mm sensing distance and an NPN normally closed output configuration, allowing integration into numerous control architectures.

The Omron E2E-X40MB3DL30-M1 Inductive Proximity Sensor is frequently used where continuous monitoring of metallic machine components is required under demanding operating conditions.

Technical Description

The sensor utilizes inductive sensing technology to identify the presence of conductive metallic objects. A high-frequency oscillator generates an electromagnetic field at the sensing surface. When a metal object enters this field, eddy currents are induced within the target material.

These eddy currents absorb energy from the electromagnetic field, causing measurable changes in the oscillator circuit. The internal electronics detect these changes and switch the output accordingly.

The Omron E2E-X40MB3DL30-M1 Inductive Proximity Sensor features an M30 threaded housing and an M12 connector interface, enabling straightforward installation and maintenance. The IP67-rated enclosure provides protection against dust ingress and temporary water exposure commonly encountered in industrial facilities.

Working Principle

The sensor continuously emits an electromagnetic field through its active sensing face. When a metallic target enters the sensing range, electromagnetic interaction occurs between the sensor and the target.

The resulting eddy currents alter the oscillator characteristics, allowing the sensor electronics to determine whether a target is present. Once the switching threshold is reached, the output state changes and a signal is transmitted to the connected controller or PLC.

This non-contact operating principle eliminates mechanical wear and contributes to consistent performance throughout the service life of the sensor.

Main Features

• 40 mm sensing distance.
• NPN normally closed output.
• M30 threaded cylindrical housing.
• M12 connector connection.
• IP67 environmental protection.
• 10 to 30 VDC operating voltage.
• Unshielded sensing design.
• Suitable for industrial automation systems.

Typical Areas of Use

The Omron E2E-X40MB3DL30-M1 Inductive Proximity Sensor can be implemented across numerous industrial sectors where metal object detection is essential.

• Automated manufacturing equipment
• Conveyor systems
• Machine tools
• Packaging machinery
• Industrial robotics
• Material transfer systems
• Automated assembly stations
• Warehouse automation equipment

The sensor provides dependable feedback signals that assist control systems in monitoring machine position and process status.

Industrial Applications

Automated Material Handling

Material transfer systems frequently use inductive sensors to verify the location of metal pallets, carriers, and transfer mechanisms. Accurate position confirmation helps maintain process synchronization.

Production Equipment Monitoring

Manufacturing machinery can use proximity sensors to confirm actuator positions, machine cycle stages, and tooling movement throughout automated processes.

Industrial Robotics

Robotic systems often rely on metal detection sensors to validate fixture locations and workpiece presence before initiating programmed tasks.

Packaging and Processing Systems

Packaging equipment benefits from proximity sensors that monitor moving components, machine status, and mechanical positioning throughout production cycles.

Advantages of the Sensor

• Non-contact operation minimizes wear.
• Suitable for continuous industrial use.
• Stable detection performance.
• Resistant to vibration and mechanical stress.
• Low maintenance requirements.
• Simple connector-based replacement.
• Reliable operation in dusty environments.
• Compatible with common industrial control platforms.

Engineers evaluating broader sensing solutions may also review Omron sensor series for additional industrial automation applications.

Omron E2E-X40MB3DL30-M1 Considerations When Selecting the Sensor

Proper sensor selection requires evaluation of several technical factors to ensure compatibility with the application.

• Required sensing distance.
• Output logic requirements.
• Available installation space.
• Target material characteristics.
• Electrical system compatibility.
• Environmental conditions.
• Maintenance requirements.
• Connector preferences.

The Omron E2E-X40MB3DL30-M1 Inductive Proximity Sensor is commonly selected for applications requiring long sensing range and normally closed output functionality.

Maintenance Guidelines

Routine maintenance should include inspection of mounting hardware, connector condition, and sensor alignment. The sensing face should remain free from excessive contamination that may affect installation clearances.

Since the sensor operates without physical contact, maintenance requirements are generally lower than those associated with mechanical limit switches.

Frequently Asked Questions

What type of sensing technology does this model use?

The sensor uses inductive sensing technology for detecting metallic targets.

Omron E2E-X40MB3DL30-M1 What is the nominal sensing distance?

The sensor provides a 40 mm sensing distance.

What output configuration is available?

This model features an NPN normally closed output.

How is the sensor connected to the control system?

An M12 connector is used for electrical connection.

What operating voltage does the sensor require?

The sensor operates between 10 and 30 VDC.

Can it be used in harsh industrial environments?

Yes. The IP67 protection rating supports operation in environments exposed to dust and moisture.

What materials can be detected?

The sensor is designed primarily for conductive metallic objects.

Where is the Omron E2E-X40MB3DL30-M1 Inductive Proximity Sensor commonly used?

Typical applications include conveyor systems, robotics, packaging machinery, assembly equipment, and industrial automation installations.
