Omron E2E-X3D2-N 2M Inductive Proximity Sensor: Technical Guide and Application Manual
Ask an automation engineer which sensors they trust, and Omron comes up first. The E2E-X3D2-N 2M Inductive Proximity Sensorwith supply voltage 12-24V DC, designed for metal part detection applications, built to run trouble-free for years.
For projects where sensing and control decisions must be made together, Omron’s Omron Sensor products are a natural companion to this unit. Both families are built to the same quality standards.

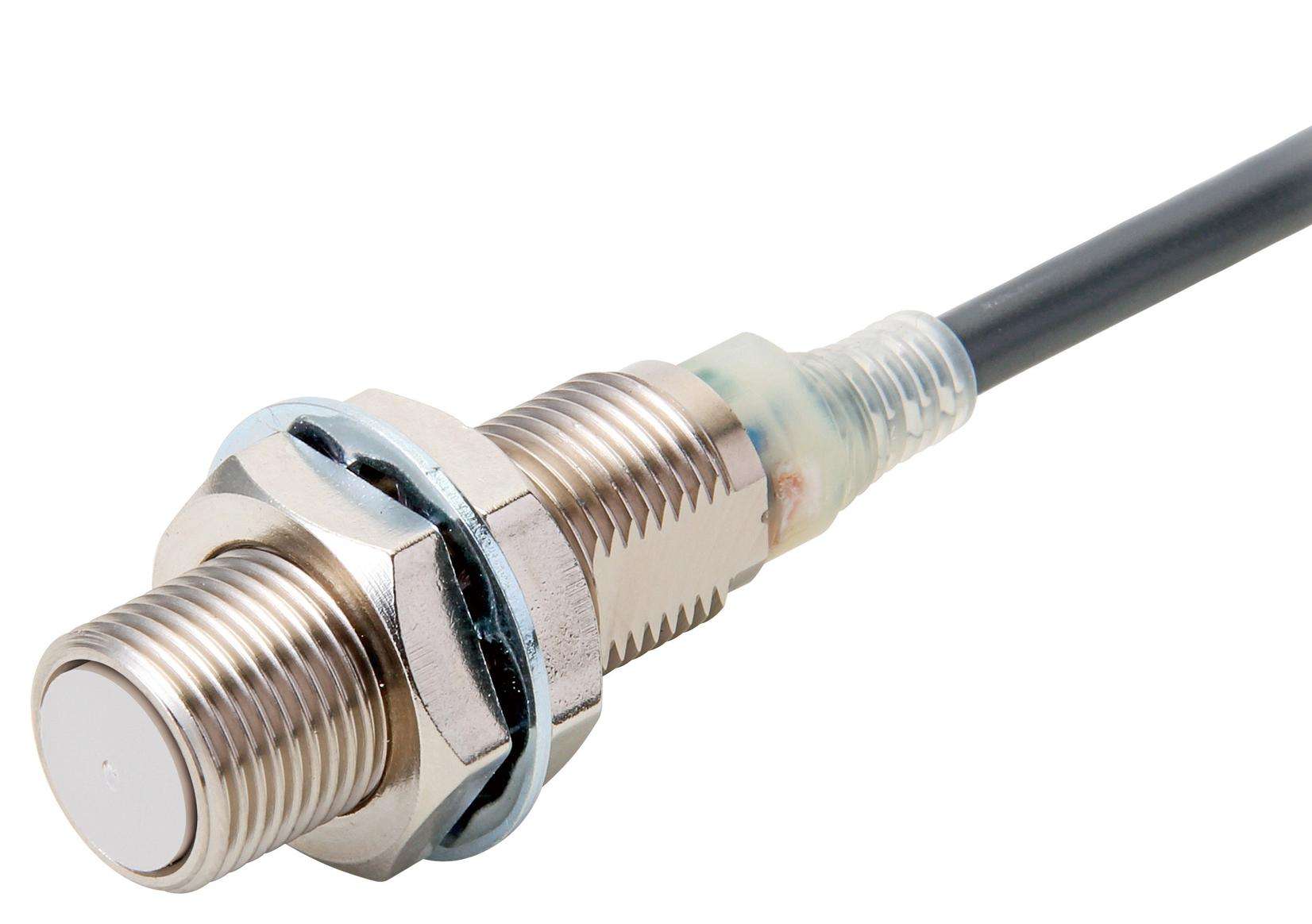

Omron E2E-X3D2-N 2M — Product Profile
The Omron E2E-X3D2-N 2M is a Inductive Proximity Sensor rated at 12-24V DC, with 2 m cable length, designed to reliably handle metal part detection applications. Key engineering features include m12 body, 3 mm sensing distance, cable 2 m, wide switching frequency, ip67.
In the field, m12 body, 3 mm sensing distance, cable 2 m, wide switching frequency, ip67 stands out immediately. 12-24V DC supply voltage and 2 m cable length aligns with industrial automation standards.
Technical Data Summary
The table below summarises the main technical parameters of the Omron E2E-X3D2-N 2M. For complete specifications, refer to the official Omron product datasheet.
| Parameter | Value |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Operating Voltage | 12-24V DC |
| Cable Length | 2 m |
| Output Type | PNP output |
| Output Current | 200 mA |
| Key Features | M12 body, 3 mm sensing distance, cable 2 m, wide switching frequency, IP67 |
| Mounting | Screw mount |
| Lifetime | Semiconductor |
| Operating Temperature | -25°C to +70°C |
| Compatible Accessory | Mounting bracket |
Where This Product Fits
The Omron E2E-X3D2-N 2M Inductive Proximity Sensor is commonly specified for the following applications:
- Metal part detection
- Position control
- Cnc machine tool limit switch
Across these use cases, the consistent requirement is reliable detection — often in environments where an unplanned fault would create significant disruption. The Omron E2E-X3D2-N 2M is designed with exactly those conditions in mind.
Practical Installation Tips
A few installation details make a tangible difference with the Omron E2E-X3D2-N 2M Inductive Proximity Sensor. Mount the sensor at a location free from vibration. Keep the cable route away from sharp edges. Adjust the target distance to operate at 80% of the nominal sensing range.
For ongoing maintenance, keep the sensor lens clean, check cable connections, and periodically test that the LED indicator functions correctly. Early intervention avoids the much larger cost of an unplanned production stop.
Performance You Can Rely On
From a total cost of ownership perspective, the Omron E2E-X3D2-N 2M Inductive Proximity Sensor makes financial sense even when its purchase price is higher than alternatives. Reduced unplanned downtime and fewer replacement cycles add up to a clear advantage.
Frequently Asked Questions
How do I install the Omron E2E-X3D2-N 2M?
Mount the Omron E2E-X3D2-N 2M Inductive Proximity Sensor using a mounting bracket to a stable surface, make cable connections, and adjust the target distance.
What is the service life of the Omron E2E-X3D2-N 2M?
As the Omron E2E-X3D2-N 2M Inductive Proximity Sensor uses semiconductor technology with no moving mechanical parts, it has a very long service life.
Is the Omron E2E-X3D2-N 2M sensitive to inductive loads?
The Omron E2E-X3D2-N 2M Inductive Proximity Sensor includes short-circuit and overcurrent protection in its output circuit.
Is the Omron E2E-X3D2-N 2M RoHS compliant?
Omron products conform to RoHS Directive requirements. Specific compliance documentation can be requested from authorised distributors.
What periodic maintenance does the Omron E2E-X3D2-N 2M require?
Keep the sensor lens clean, check cable connections, and ensure the mounting screw is tight.
