Omron E2E-X3D18-TR 2M Inductive Proximity Sensor

Technical Description

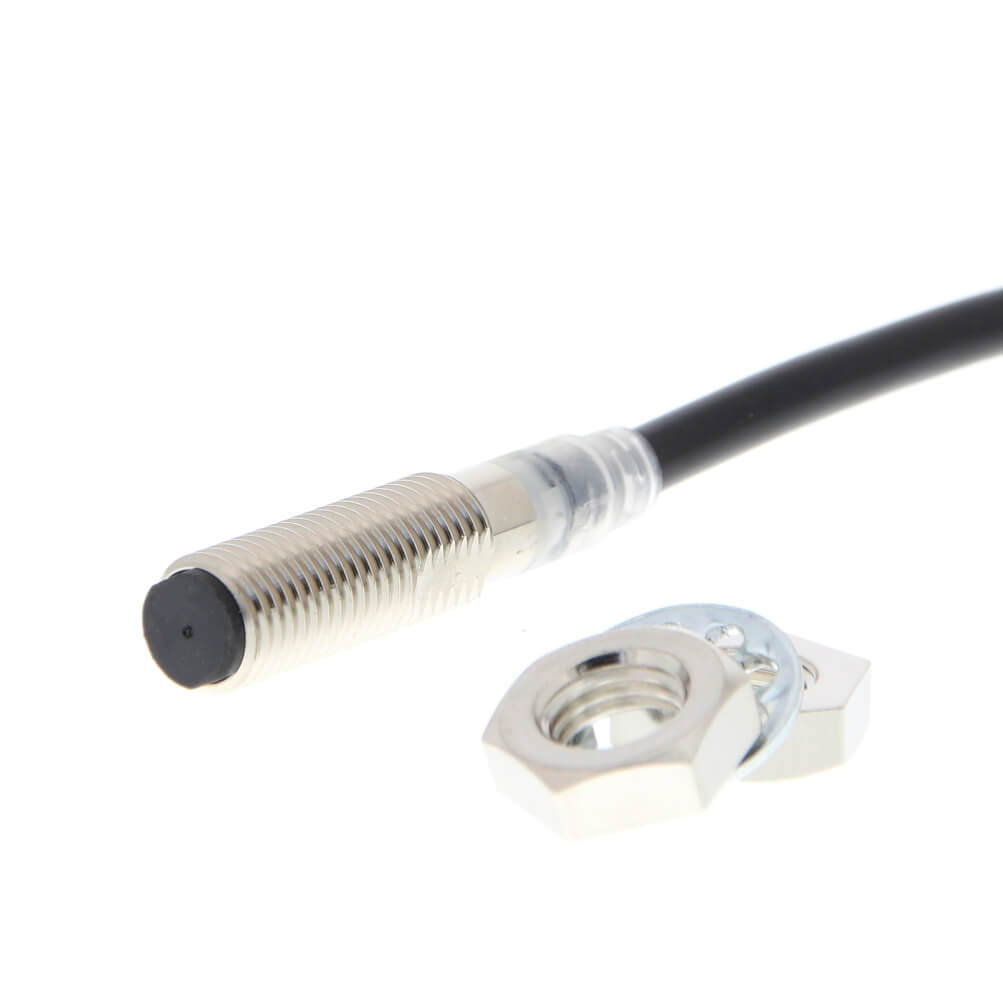

The Omron E2E-X3D18-TR 2M Inductive Proximity Sensor is a compact M8 inductive sensor designed for metal detection in industrial automation equipment. It belongs to the E2E NEXT series and provides a 3 mm sensing distance with a quasi-flush mounting structure. This configuration is suitable for installations where the sensor must be mounted close to metal brackets, machine frames, or compact fixture surfaces.

The sensor uses a DC 2-wire output with normally open operation and no-polarity wiring. This helps simplify wiring during machine assembly and service work, especially where multiple proximity sensors are installed on the same machine. The Omron E2E-X3D18-TR 2M Inductive Proximity Sensor is supplied with a 2 m oil-resistant PVC flexible cable, making it suitable for compact machines where the sensor is installed near a junction box, terminal strip, or remote input module.

Working Principle

Inductive proximity sensors operate by producing an electromagnetic field from the sensing face. When a metallic object enters this field, eddy currents are generated in the target. These currents affect the oscillation circuit inside the sensor, and the internal electronics convert this change into a switching output.

Because the Omron E2E-X3D18-TR 2M Inductive Proximity Sensor detects metal without physical contact, it is useful in repetitive production cycles where mechanical limit switches may wear over time. The non-contact operating method also reduces issues related to contact bounce, actuator fatigue, and contamination on mechanical switch components.

Usage Areas

• Metal workpiece detection
• Fixture position confirmation
• Compact actuator end-position sensing
• Robot tooling feedback
• Conveyor stop detection
• Small machine reference point monitoring
• Automated assembly station feedback

Industrial Applications

In robotic handling equipment, the sensor can confirm the position of a metal gripper jaw or locating pin before the next movement sequence starts. In compact assembly systems, it can detect whether a small metal part has reached the correct seating point before pressing, riveting, fastening, or inspection begins.

In conveyor equipment, the sensor may be used to identify metallic carriers or stops at transfer points. In machine tool auxiliary systems, its oil-resistant cable and protected construction support use near coolant mist, lubricants, and metallic debris. The flexible cable feature is also useful where cable routing must pass through confined machine channels or moving cable guides.

Advantages

• M8 cylindrical housing for restricted installation spaces
• 3 mm sensing distance for short-range metal detection
• Quasi-flush mounting for integration near metal structures
• DC 2-wire output for straightforward controller connection
• Normally open operation for common presence-detection logic
• No-polarity wiring for reduced installation complexity
• Oil-resistant PVC cable for industrial environments
• IP67, IP67G, and IP69K protection ratings

Sector-Based Use Examples

In automotive subassembly lines, the sensor may verify whether a metal sleeve or bracket is correctly positioned before a pressing process. In electronics manufacturing equipment, it can detect metal carriers in compact indexing tables. In packaging machinery, it may confirm the home position of a metal guide or stop used to align products during transfer.

In general machine building, the Omron E2E-X3D18-TR 2M Inductive Proximity Sensor can be installed on small pneumatic slides, rotary index plates, and clamping units. In metal fabrication support equipment, it can provide reliable feedback where dust, oil, and vibration are part of the operating environment.

Selection Considerations

Before selecting this sensor, engineers should verify that the 3 mm sensing distance is sufficient for the target size, material, and approach direction. The target should be metallic, and the installation should allow consistent alignment between the sensing face and the object being detected.

The 2 m cable length is appropriate for compact machines where the control connection point is close to the sensing location. The DC 2-wire normally open output must be compatible with the PLC input, remote I/O module, relay interface, or machine controller. For related sensing options, engineers can review Omron sensor series during broader component selection.

Frequently Asked Questions

What does the Omron E2E-X3D18-TR 2M Inductive Proximity Sensor detect?

It detects metallic targets using inductive sensing technology.

What is the rated sensing distance?

The rated sensing distance is 3 mm.

What does the TR version indicate in practical use?

This version is identified with a flexible cable feature, which is useful where cable bending and routing flexibility are relevant.

What is the output type?

The sensor uses a DC 2-wire output.

Is the operation mode normally open?

Yes, this model has normally open operation.

What is the cable length?

The cable length is 2 m.

Can it be used near oil or coolant?

Yes, it has an oil-resistant PVC cable and industrial protection ratings.

Does it require polarity-specific wiring?

No, the product data identifies the sensor as a no-polarity type.

Where is the Omron E2E-X3D18-TR 2M Inductive Proximity Sensor commonly installed?

It is commonly installed in compact automation machines, robotic tooling, fixture systems, conveyors, and metal part detection stations.
