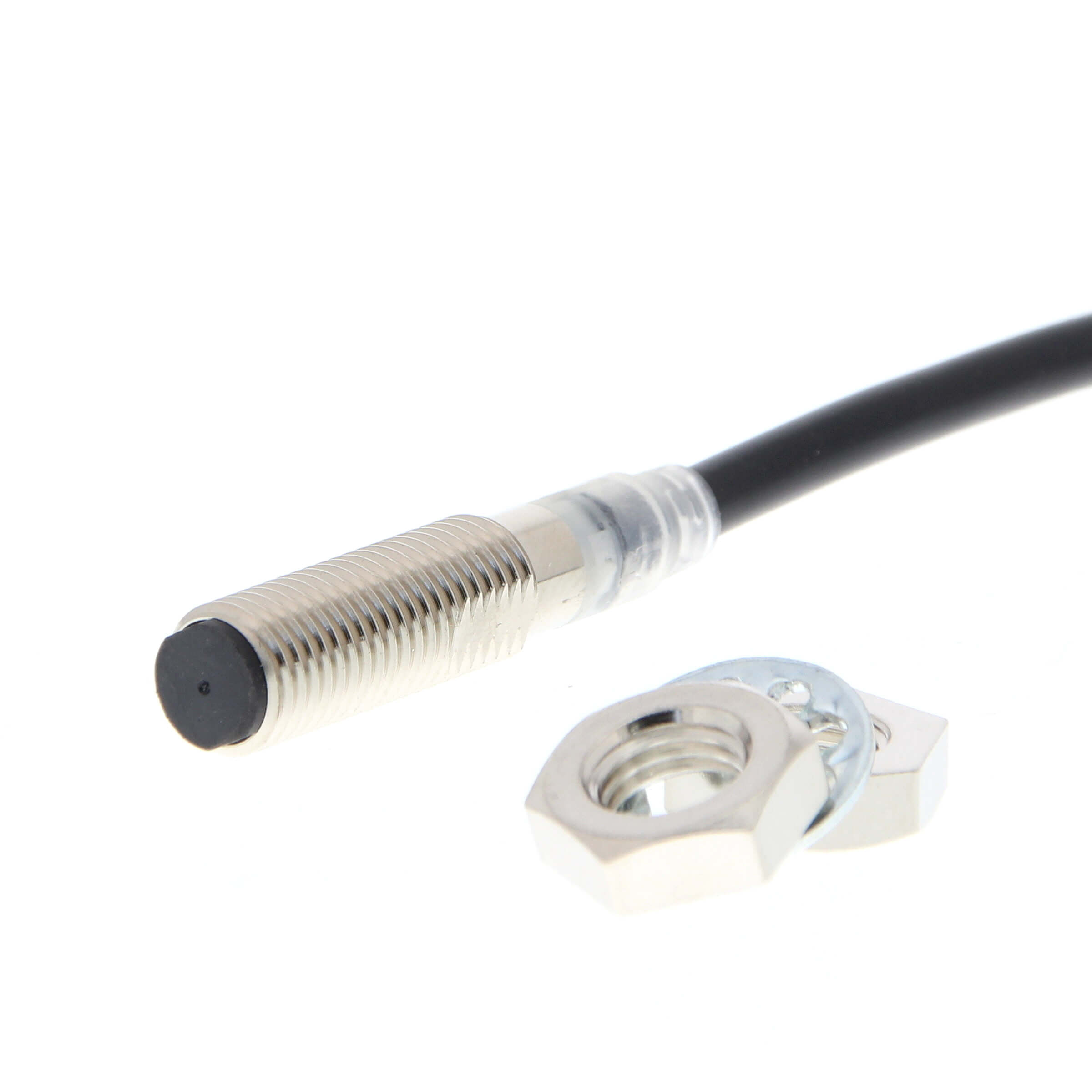

Omron E2E-X3D18 5M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Diameter | M8 |
| Sensing Distance | 3 mm |
| Mounting Style | Shielded |
| Output Type | PNP |
| Output Configuration | Normally Open (NO) |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | 5 m Oil-Resistant PVC Cable |
| Response Frequency | 1 kHz |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67, IP67G, IP69K |
| Operating Temperature | -25°C to +70°C |
| Overall Length | 37.8 mm |
Production facilities often require sensing devices capable of maintaining stable operation over long cable runs while operating in demanding industrial conditions. The Omron E2E-X3D18 5M Inductive Proximity Sensor addresses these requirements by combining reliable metal detection with an extended cable configuration suitable for larger equipment layouts.
Part of the E2E NEXT family, the Omron E2E-X3D18 5M Inductive Proximity Sensor is engineered for accurate proximity sensing and long-term operational stability. Its compact housing supports installation in confined machine assemblies while providing dependable switching performance.
Technical Description
This inductive proximity sensor offers a nominal sensing distance of 3 mm and uses a shielded sensing structure. The sensor detects metallic targets without physical contact and provides a PNP normally open output signal.
The nickel-plated brass housing contributes to mechanical durability, while the 5-meter oil-resistant cable allows installation in applications where the control cabinet is located farther from the sensing point.
Working Principle
The sensing element generates a high-frequency electromagnetic field in front of the sensor face. When a metal object enters this field, induced eddy currents alter the oscillator characteristics within the sensor.
The internal electronics evaluate these changes and activate the output signal once the detection threshold is reached. This non-contact detection principle eliminates physical wear between the sensor and the target object.
Applications
- Industrial conveyor systems
- Automated storage equipment
- Assembly line automation
- Packaging machinery
- Material transfer stations
- Machine position monitoring
- Industrial robotics
The Omron E2E-X3D18 5M Inductive Proximity Sensor is especially useful where extended cable length simplifies installation and reduces the need for additional connection hardware.
Industrial Applications
Distribution Centers
Automated transport systems can utilize the sensor to detect metal carriers and moving mechanical components.
Manufacturing Equipment
The sensor supports reliable machine position monitoring throughout automated production processes.
Packaging Lines
Mechanical movements and indexing positions can be verified using non-contact sensing technology.
Robotic Workstations
Industrial robots may use the sensor for fixture verification and actuator position monitoring.
Omron E2E-X3D18 5M Advantages
- Extended 5-meter cable connection
- Compact M8 housing
- Reliable PNP output configuration
- High ingress protection ratings
- Durable industrial construction
- Fast switching response
- Suitable for demanding automation environments
Sector-Specific Usage Examples
In logistics facilities, the sensor can monitor the movement of metallic transport equipment along automated routes.
In process manufacturing systems, it can provide position feedback for machine actuators located far from control panels.
In equipment manufacturing, the longer cable configuration can simplify machine wiring and installation planning.
Considerations When Selecting the Product
- Verify compatibility with PNP input devices.
- Ensure the target material is conductive metal.
- Confirm the required sensing distance.
- Assess available mounting space.
- Evaluate cable routing requirements.
- Review environmental protection needs.
Omron E2E-X3D18 5M For additional sensing solutions and product families, visit More Omron sensor solutions.
Frequently Asked Questions
What is the sensing distance?
The nominal sensing distance is 3 mm.
What type of output does the sensor provide?
The sensor provides a PNP normally open output.
What is the cable length?
The sensor includes a 5-meter oil-resistant PVC cable.
Can it detect non-metallic objects?
No. The sensor is designed for metallic target detection.
What protection ratings are available?
The sensor is rated IP67, IP67G, and IP69K.
Is it suitable for industrial automation?
Yes. It is specifically designed for automation and machine control applications.
What supply voltage is required?
The operating range is 10 to 30 VDC.
Where is the Omron E2E-X3D18 5M Inductive Proximity Sensor typically used?
Common applications include conveyors, packaging machinery, robotics, assembly systems, and material handling equipment.
