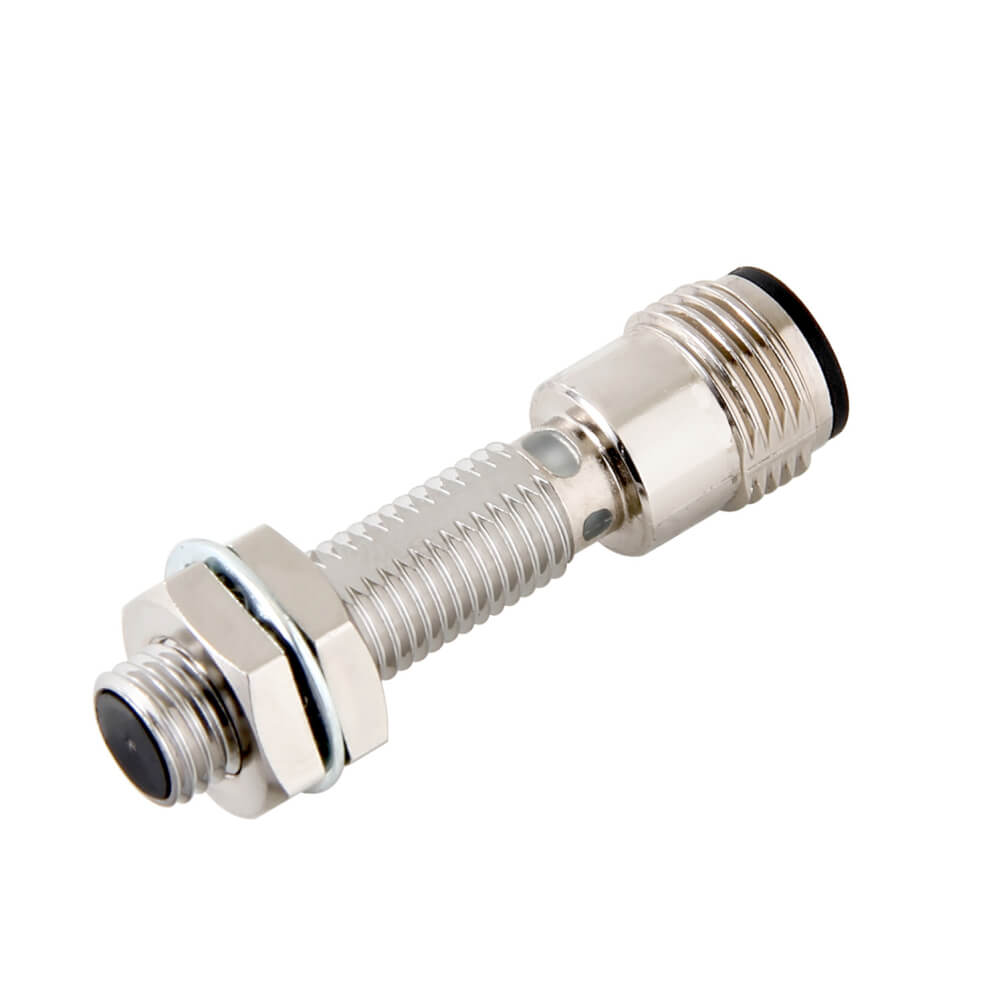

Omron E2E-X3C28-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Diameter | M8 |
| Sensing Distance | 3 mm |
| Mounting Style | Shielded |
| Output Type | NPN |
| Output Configuration | Normally Closed (NC) |
| Supply Voltage | 10 to 30 VDC |
| Connection Type | M12 Connector |
| Response Frequency | 1 kHz |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67, IP67G, IP69K |
| Operating Temperature | -25°C to +70°C |
| Compliance | CE, UL |
Modern automation systems often require compact sensing devices capable of delivering reliable detection under challenging operating conditions. The Omron E2E-X3C28-M1 Inductive Proximity Sensor is designed to provide non-contact detection of metallic objects while maintaining stable performance in industrial environments where contamination, vibration, and frequent machine operation are common.
Featuring an M12 connector interface, the Omron E2E-X3C28-M1 Inductive Proximity Sensor simplifies installation and maintenance procedures in modular automation architectures. Its compact cylindrical housing allows integration into equipment with limited mounting space.
Technical Description
This inductive proximity sensor belongs to the Omron E2E NEXT family and is engineered for precise metal object detection. The sensor offers a nominal sensing distance of 3 mm and incorporates a shielded sensing structure that supports mounting near metallic machine components.
The robust nickel-plated brass housing provides mechanical durability, while the connector-based design enables rapid replacement during maintenance operations. The sensor operates using a 10 to 30 VDC power supply and provides an NPN normally closed output signal.
Working Principle
The sensor generates an electromagnetic field at the sensing face. When a conductive metallic object enters the detection area, induced eddy currents modify the oscillation characteristics of the internal circuit.
The embedded signal processing circuitry evaluates these changes and switches the output state accordingly. Since detection occurs without physical contact, mechanical wear is minimized and long-term operational consistency can be achieved.
Omron E2E-X3C28-M1 Primary Areas of Use
- Machine position monitoring
- Automated assembly systems
- Transfer line automation
- Industrial conveyors
- Material handling equipment
- Packaging machinery
- Robotic manufacturing cells
The Omron E2E-X3C28-M1 Inductive Proximity Sensor is particularly suitable for installations requiring fast sensor replacement through connector-based wiring systems.
Industrial Applications
Automated Assembly Operations
The sensor can verify the presence of metallic components before assembly sequences proceed to the next production stage.
Packaging and Processing Equipment
Position feedback from mechanical actuators can be monitored to support synchronized machine operation.
Automated Warehousing
Shuttle systems, lift mechanisms, and transport units can use the sensor to monitor metal carrier positions.
Robotic Manufacturing
Industrial robots frequently require confirmation of fixture positions and actuator movement. The sensor can provide reliable detection signals for these functions.
Omron E2E-X3C28-M1 Advantages
- Compact M8 cylindrical housing
- Quick installation through M12 connector interface
- High environmental resistance
- Protection against water and washdown exposure
- Stable detection characteristics
- Fast switching performance
- Suitable for modular automation systems
Sector-Based Usage Examples
In pharmaceutical production equipment, the sensor can monitor metal transport mechanisms used for automated product handling.
In logistics automation, it can detect moving metal carriers within sorting systems and transfer stations.
In machine building applications, the sensor can serve as a position feedback device for moving machine components and safety-related monitoring functions.
Important Selection Considerations
- Verify compatibility with NPN input circuits.
- Ensure the target material is metallic.
- Confirm available installation space around the sensing face.
- Evaluate connector requirements for existing wiring systems.
- Check environmental conditions and protection requirements.
- Review the required sensing distance for the application.
Additional sensing technologies and related product families can be found within Omron sensor series.
Frequently Asked Questions
What is the nominal sensing distance?
The sensor provides a sensing distance of 3 mm for standard ferrous targets.
What type of output does the sensor use?
It uses an NPN normally closed output configuration.
Does the sensor require physical contact with the target?
No. Detection is achieved through an electromagnetic sensing principle.
What connection method is used?
The sensor is equipped with an M12 connector.
Can it operate in washdown environments?
Yes. The sensor is rated IP67, IP67G, and IP69K.
What industries commonly use this sensor?
It is widely used in manufacturing, packaging, logistics, robotics, and material handling applications.
What supply voltage is required?
The operating voltage range is 10 to 30 VDC.
Where can the Omron E2E-X3C28-M1 Inductive Proximity Sensor be installed?
It can be installed in compact machine assemblies, conveyors, robotic equipment, and industrial automation systems requiring reliable metal detection.
