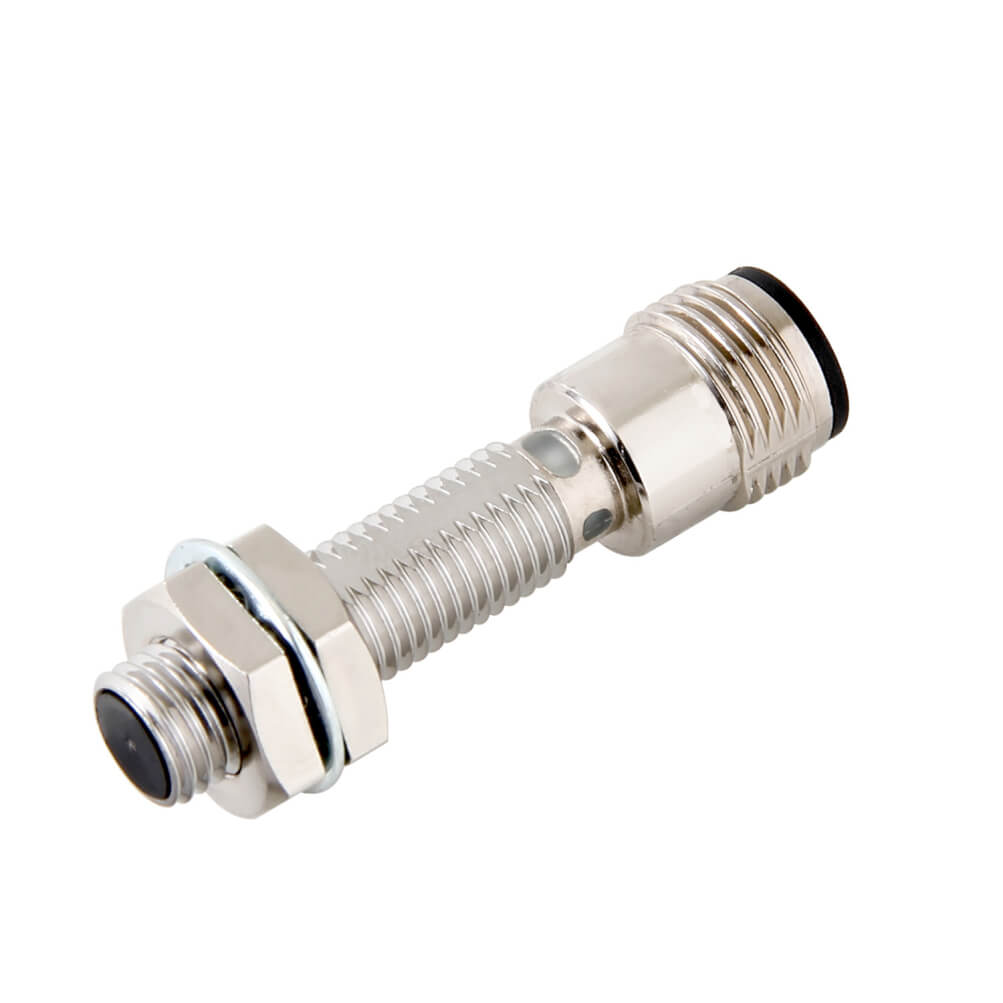

Omron E2E-X3B28-M1 Inductive Proximity Sensor

The Omron E2E-X3B28-M1 Inductive Proximity Sensor is designed for reliable non-contact detection of metallic objects in industrial automation systems. As part of the E2E NEXT family, this sensor combines compact dimensions, robust environmental protection, and stable switching characteristics for machine builders and plant engineers working in demanding production environments.

The Omron E2E-X3B28-M1 Inductive Proximity Sensor utilizes an M8 threaded housing and a shielded sensing design, making it suitable for installations where mounting space is limited while maintaining accurate detection performance. Its M12 connector interface supports simplified installation and maintenance procedures in modular automation architectures.

Omron E2E-X3B28-M1 Technical Description

This sensor belongs to the category of inductive proximity sensors that detect metallic targets without physical contact. The sensing element generates a high-frequency electromagnetic field. When a conductive metal target enters the sensing range, eddy currents are induced within the target material, causing a measurable change in the oscillation circuit.

The sensor evaluates these changes electronically and switches the output state when the detection threshold is reached. The PNP normally closed output configuration makes the device suitable for control systems that require a closed output condition during normal operation.

The nickel-plated brass housing provides mechanical durability while supporting resistance against industrial contaminants commonly encountered in manufacturing facilities.

Omron E2E-X3B28-M1 Working Principle

The operating principle is based on electromagnetic induction. An oscillator located inside the sensor generates a magnetic field at the sensing face. When a metallic object approaches this field, energy is absorbed through induced eddy currents.

The resulting reduction in oscillation amplitude is monitored continuously by the sensor circuitry. Once the predefined threshold is exceeded, the output changes state and transmits a signal to the connected PLC, controller, relay module, or monitoring device.

This contactless detection method minimizes mechanical wear and supports long operational life in repetitive switching applications.

Typical Areas of Use

• Automated assembly systems
• Packaging machinery
• Conveyor monitoring systems
• Material handling equipment
• Metal component positioning
• Industrial robotics
• Machine safety interlocking support functions
• Automated storage and retrieval systems

Its compact M8 body makes it particularly useful in equipment where larger sensor formats cannot be accommodated.

Industrial Applications

Automotive Manufacturing

In automotive production lines, the sensor can verify the presence of metallic brackets, stamped components, and fixture elements before assembly operations begin.

Packaging Equipment

Packaging machines frequently require confirmation of metallic guide components and machine positions. The sensor provides stable switching performance under repetitive operating conditions.

Robotic Cells

Industrial robots often rely on proximity sensing to verify gripper positions, tooling engagement, and workpiece presence. The compact dimensions of the sensor simplify integration into robotic end-effectors and fixtures.

Metal Processing Facilities

Sheet metal fabrication systems use inductive sensing to confirm material movement, machine positioning, and component transfer sequences.

Advantages

• Non-contact detection minimizes wear
• Compact M8 housing supports installation in confined spaces
• IP67 and IP69K protection ratings support harsh industrial environments
• Reliable metallic object detection
• M12 connector simplifies wiring and replacement procedures
• Shielded sensing design assists controlled installation
• Suitable for high-speed detection applications with 1 kHz response frequency
• Wide operating temperature range for industrial deployment

Additional information regarding Omron sensor products can help engineers evaluate compatible sensing technologies for broader automation projects.

Omron E2E-X3B28-M1 Industry-Specific Usage Examples

• Detecting fixture lock positions in automotive welding stations
• Monitoring metal pallet transfer systems in logistics centers
• Confirming tooling positions in CNC machining equipment
• Verifying metal carrier presence in semiconductor handling systems
• Detecting machine gate positions in automated production lines
• Monitoring actuator movement in assembly machinery

Factors to Consider When Selecting the Product

• Required sensing distance relative to the target size
• Available mounting space around the sensing location
• Output configuration compatibility with the control system
• Environmental exposure to dust, moisture, and washdown procedures
• Required connector and cable infrastructure
• Target material characteristics
• Switching frequency requirements of the application

Proper consideration of installation clearances and surrounding metal structures is important to maintain consistent sensing performance.

Omron E2E-X3B28-M1 Frequently Asked Questions

What type of sensor is the Omron E2E-X3B28-M1 Inductive Proximity Sensor?

It is a shielded inductive proximity sensor designed for detecting metallic objects without physical contact.

What is the sensing distance?

The nominal sensing distance is 3 mm.

What output configuration does it use?

The sensor provides a PNP normally closed output.

Which voltage range is supported?

It operates from 10 VDC to 30 VDC.

What protection ratings are available?

The sensor is rated IP67 and IP69K for environmental protection.

Can it detect non-metallic objects?

No. Inductive sensing technology is intended primarily for metallic targets.

Is it suitable for high-speed machinery?

Yes. Its response frequency of 1 kHz supports many fast industrial detection applications.

What connection method is used?

The device uses an M12 connector interface.

Where is the Omron E2E-X3B28-M1 Inductive Proximity Sensor commonly installed?

It is frequently used in packaging systems, robotics, assembly equipment, and material handling machinery.

What housing material is used?

The housing is manufactured from nickel-plated brass for durability in industrial environments.
