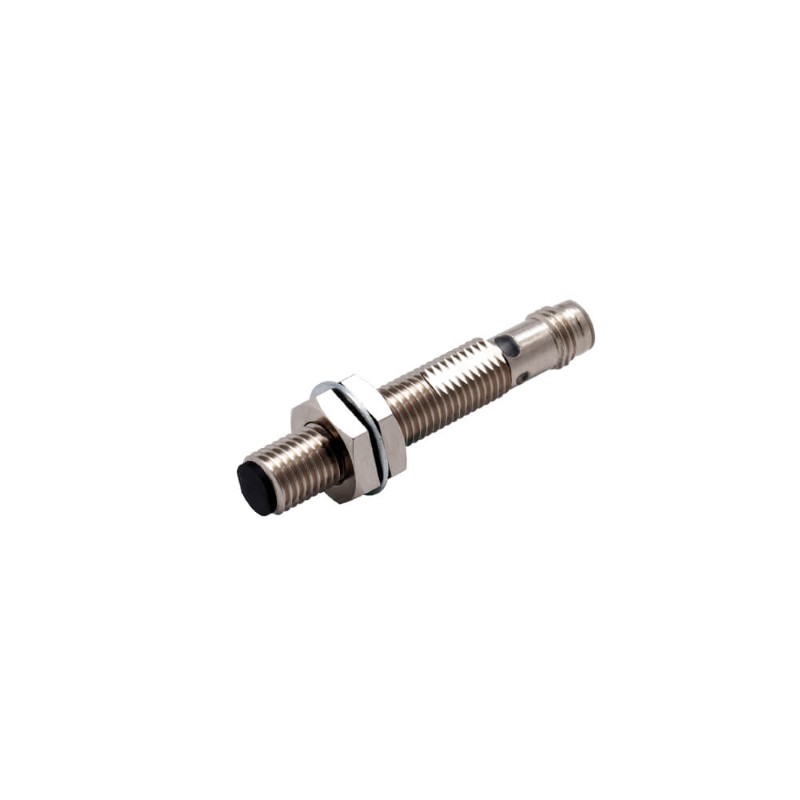

Omron E2E-X3B1TL8-M5 Inductive Proximity Sensor

Industrial sensing applications often require reliable metallic object detection across larger machine layouts where connection points are positioned far from the sensing location. The Omron E2E-X3B1TL8-M5 Inductive Proximity Sensor is designed to address these requirements by combining compact dimensions, extended cable length, and IO-Link communication capabilities within a robust industrial housing.

As part of the E2E NEXT family, this sensor supports stable detection performance while enabling integration into modern automation architectures. The 5-meter cable configuration allows flexible installation in production systems, transfer equipment, packaging machinery, and automated handling systems where longer cable runs are necessary.

Technical Description

The Omron E2E-X3B1TL8-M5 Inductive Proximity Sensor is an M8 cylindrical sensor designed for non-contact detection of metallic targets. It provides a rated sensing distance of 3 mm and incorporates a PNP normally open output configuration.

The sensor utilizes a shielded sensing structure that allows mounting near metallic machine components without significantly affecting detection stability. Its IO-Link COM3 communication capability provides access to process data, diagnostics, and device parameters through a standardized communication interface.

The nickel-plated brass housing delivers mechanical durability, while the IP67 and IP69K protection ratings support operation in demanding industrial environments where dust, moisture, coolant exposure, and washdown procedures may occur.

Operating Principle

The Omron E2E-X3B1TL8-M5 Inductive Proximity Sensor operates by generating an electromagnetic field from its sensing face. When a metallic object enters the detection zone, eddy currents are induced within the target material.

The presence of these currents alters the energy characteristics of the internal oscillator circuit. The sensor continuously monitors these changes and switches its output when the target reaches the specified sensing range.

This detection method eliminates direct contact between the sensor and the target, reducing wear and supporting long-term operational consistency.

Applications in Automation Systems

• Automated assembly stations
• Conveyor transport systems
• Packaging machinery
• Robotic handling equipment
• Machine tool installations
• Production line monitoring
• Automated storage systems
• Metal component verification

The Omron E2E-X3B1TL8-M5 Inductive Proximity Sensor is particularly suitable for installations requiring extended cable reach while maintaining compact sensor dimensions.

Industrial Applications

Automated Warehousing

Warehouse automation systems use inductive sensors to detect carrier positions, shuttle locations, and transfer mechanisms. The longer cable configuration can simplify installation in large equipment layouts.

Food Packaging Equipment

Packaging systems often require position monitoring of metallic machine elements. The sensor’s environmental protection ratings support operation in equipment subject to routine cleaning procedures.

Metal Processing Machinery

Manufacturing equipment uses proximity sensors to verify fixture positions, monitor actuators, and confirm the presence of workpieces before machining operations begin.

Automotive Production Systems

Assembly lines use sensors for component detection, positioning verification, and automated process sequencing throughout production workflows.

Omron E2E-X3B1TL8-M5 Advantages

• Compact M8 threaded housing
• 3 mm sensing distance
• Shielded installation design
• Integrated IO-Link communication
• Extended 5-meter cable configuration
• PNP normally open output
• IP67 and IP69K environmental protection
• Nickel-plated brass construction
• 1 kHz response frequency
• Suitable for advanced automation systems

Engineers seeking broader detection technologies and compatible automation components can review additional Omron sensor products for system-wide integration projects.

Omron E2E-X3B1TL8-M5 Sector-Based Use Cases

• Monitoring transfer carts in logistics systems
• Detecting fixture positions in robotic cells
• Verifying carrier locations in assembly lines
• Monitoring machine actuator movement
• Detecting indexing mechanisms in packaging equipment
• Position verification in automated storage systems

Factors to Consider During Product Selection

When selecting the Omron E2E-X3B1TL8-M5 Inductive Proximity Sensor, engineers should evaluate installation space, sensing distance requirements, environmental conditions, communication needs, and cable routing considerations.

The 5-meter cable configuration may reduce the need for additional extension solutions in larger machines. Proper mounting distances should still be maintained to ensure consistent sensing performance.

For applications utilizing condition monitoring and advanced diagnostics, compatibility with the selected IO-Link master and controller platform should be confirmed during system design.

Omron E2E-X3B1TL8-M5 Frequently Asked Questions

1. What type of material can this sensor detect?

The sensor is designed for detecting metallic objects using inductive sensing technology.

2. What is the sensing distance?

The rated sensing distance is 3 mm.

3. Does the sensor support IO-Link communication?

Yes. It supports IO-Link COM3 communication.

4. What output type is available?

The sensor features a PNP normally open output configuration.

5. What is the cable length of this model?

This version is supplied with a 5-meter cable.

6. Is the Omron E2E-X3B1TL8-M5 Inductive Proximity Sensor suitable for washdown environments?

Yes. The IP67 and IP69K ratings support operation in environments exposed to cleaning procedures and moisture.

7. Which industries commonly use this sensor?

Applications include logistics automation, automotive manufacturing, packaging, robotics, and machine tool systems.

8. What supply voltage range does the sensor support?

The operating voltage range is 10 to 30 VDC.

9. Why is the Omron E2E-X3B1TL8-M5 Inductive Proximity Sensor suitable for larger machines?

The integrated 5-meter cable allows installation over longer distances without requiring additional cable extensions in many applications.

10. What material is used for the housing?

The housing is manufactured from nickel-plated brass for durability and environmental resistance.

The Omron E2E-X3B1TL8-M5 Inductive Proximity Sensor combines reliable metallic object detection, long cable reach, and IO-Link connectivity, making it suitable for a wide range of industrial automation and machine monitoring applications.
