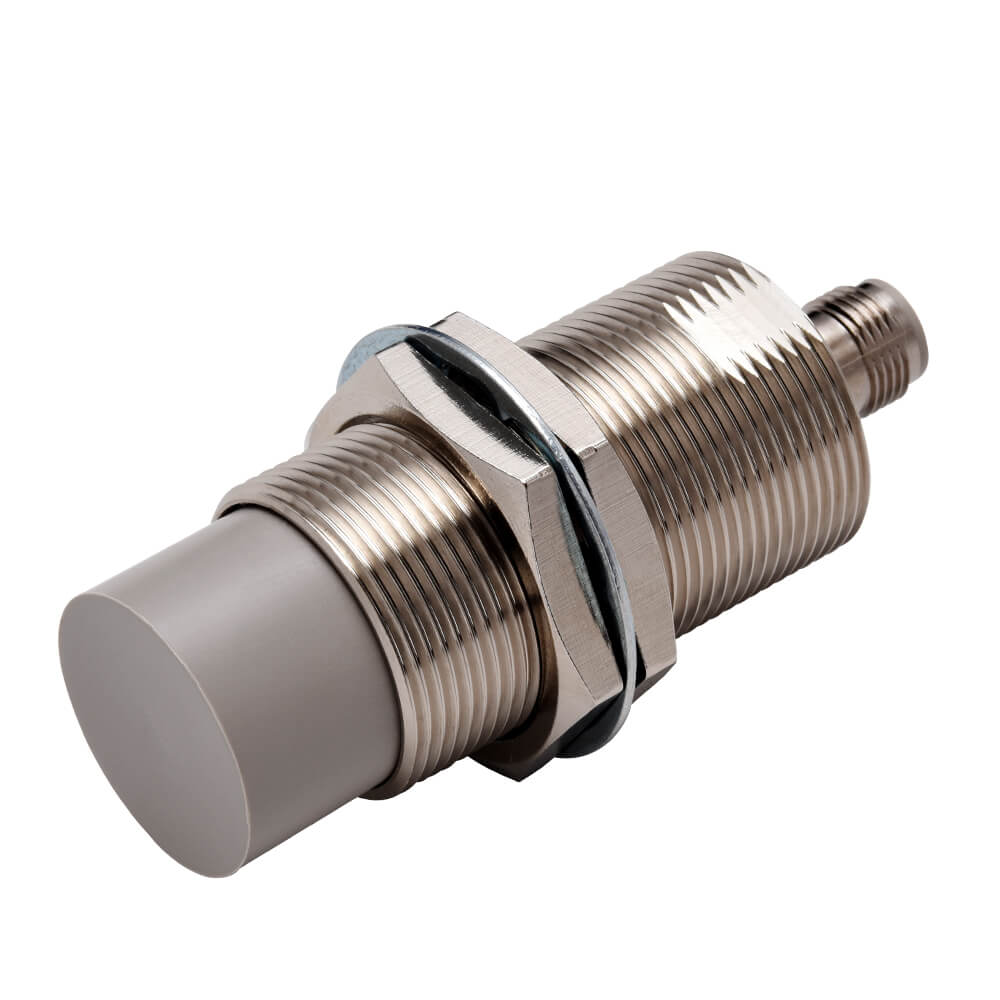

Omron E2E-X30MC2L30 5M Inductive Proximity Sensor

Industrial systems that span large machine structures often require sensors with extended cable lengths to simplify installation and wiring. The Omron E2E-X30MC2L30 5M Inductive Proximity Sensor is developed for such environments, providing long-distance metal detection together with a factory-attached 5-meter cable. This configuration reduces the need for additional connection hardware while supporting reliable operation across a wide range of industrial applications.

Technical Description

The Omron E2E-X30MC2L30 5M Inductive Proximity Sensor is designed to detect metallic targets without physical contact. As a member of the E2E NEXT series, it combines a large M30 housing with a 30 mm sensing distance, making it suitable for applications where increased sensing range and mechanical durability are required.

The sensor uses a nickel-plated brass enclosure that helps protect internal electronics from vibration, dust, moisture, and routine industrial exposure. The integrated 5-meter PVC cable provides additional installation flexibility, especially in large machinery and production lines where sensors are located far from control cabinets.

This model operates using an NPN normally open output and supports standard 10 to 30 VDC industrial power supplies.

Working Principle

The Omron E2E-X30MC2L30 5M Inductive Proximity Sensor generates an electromagnetic field at the sensing face through an internal oscillator circuit. When a metallic object enters the detection zone, electrical currents are induced within the target material.

These induced currents absorb energy from the electromagnetic field and alter the oscillator’s operating characteristics. The internal electronics continuously monitor these changes and switch the output signal when the detection threshold is reached.

This sensing method eliminates physical contact between the sensor and the target object, reducing wear and supporting consistent long-term operation.

Typical Usage Areas

• Large conveyor installations
• Automated production equipment
• Industrial transfer systems
• Material handling machinery
• Automated storage systems
• Packaging lines
• Machine position monitoring
• Metal part detection systems

Additional information regarding Omron sensor solutions may assist engineers when comparing different sensing technologies and installation methods.

Industrial Applications

Distribution and Logistics Facilities

Automated logistics systems frequently utilize metallic carriers, lift mechanisms, and transfer equipment that require continuous position monitoring. The sensor can be integrated into these systems to provide reliable feedback signals.

Heavy Manufacturing Equipment

Large production machines often require long cable runs between sensors and control cabinets. The 5-meter cable can reduce installation complexity while maintaining signal integrity.

Packaging Operations

Packaging equipment relies on accurate positioning of machine components to maintain process synchronization. The sensor can detect metallic mechanisms throughout machine operation.

Automated Warehousing

The Omron E2E-X30MC2L30 5M Inductive Proximity Sensor can monitor moving transport systems, storage shuttles, and mechanical positioning devices used in warehouse automation.

Advantages

• Extended 30 mm sensing distance
• Factory-attached 5-meter cable
• M30 industrial housing
• Non-contact sensing technology
• IP67, IP67G, and IP69K protection ratings
• Wide operating voltage range
• Suitable for large machine installations
• Robust mechanical construction

Sector-Specific Usage Examples

In airport baggage handling systems, the sensor can detect metallic transport components moving between processing stations.

In industrial warehousing, it may be used to verify shuttle positions within automated storage systems.

In metal fabrication facilities, the Omron E2E-X30MC2L30 5M Inductive Proximity Sensor can monitor workpiece transfer mechanisms and machine positioning systems.

In automated production plants, it can be integrated into long conveyor networks where extended cable length simplifies installation.

Important Selection Factors

• Required sensing distance
• Machine dimensions
• Target material characteristics
• Control system compatibility
• Environmental conditions
• Installation accessibility
• Cable routing requirements
• Response frequency requirements

When selecting an inductive sensor, engineers should ensure that the target dimensions are suitable for the specified sensing distance. Adequate installation clearances must also be maintained to support proper operation of non-flush sensors.

Omron E2E-X30MC2L30 5M Frequently Asked Questions

What sensing distance does the sensor provide?

The nominal sensing distance is 30 mm.

What type of output is available?

The sensor provides an NPN normally open output.

How long is the attached cable?

The sensor includes a factory-installed 5-meter PVC cable.

What supply voltage is required?

The operating voltage range is 10 to 30 VDC.

What materials can be detected?

The sensor is designed for metallic target detection.

Where is the Omron E2E-X30MC2L30 5M Inductive Proximity Sensor commonly used?

It is frequently used in logistics systems, conveyors, packaging machinery, storage systems, and industrial automation equipment.

Is the sensor suitable for harsh environments?

Yes. The housing and protection ratings support operation in demanding industrial environments.

What protection ratings does the sensor offer?

The sensor is rated IP67, IP67G, and IP69K.

Why would a 5-meter cable be beneficial?

The longer cable simplifies installation when sensors are mounted far from the control cabinet.

Does the sensor require contact with the target?

No. Detection occurs through electromagnetic induction without physical contact.
