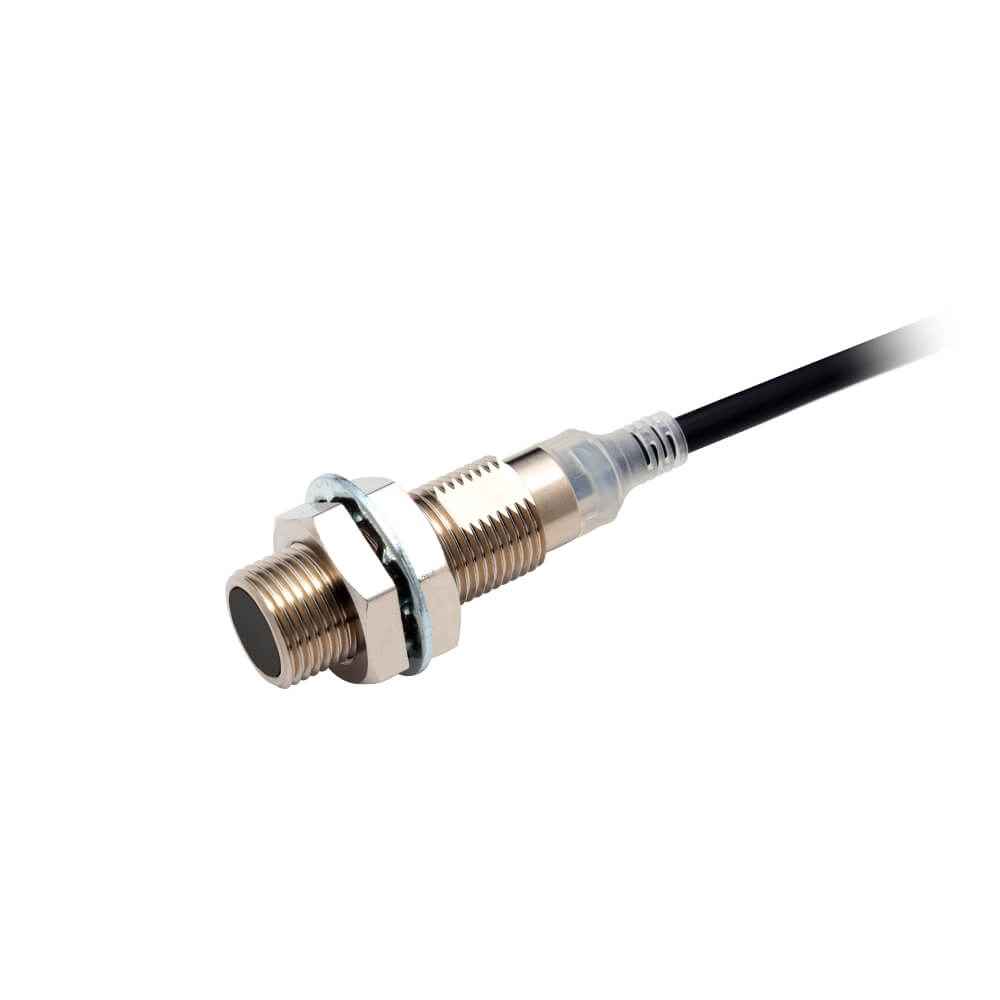

Omron E2E-X2R5D1-TR-N 5M Inductive Proximity Sensor

Technical Description

The Omron E2E-X2R5D1-TR-N 5M Inductive Proximity Sensor is a compact M12 sensing device developed for reliable detection of metallic targets in industrial automation systems. This version combines a flush-mount housing with a radial cable outlet, making it suitable for installations where straight cable routing is impractical or restricted by surrounding machine components.

The sensor incorporates a 2.5 mm sensing distance and a DC 2-wire normally open output configuration. Its extended 5-meter cable length enables installation in larger machinery where the control cabinet or terminal connection point is located far from the sensing position.

The Omron E2E-X2R5D1-TR-N 5M Inductive Proximity Sensor is frequently implemented in production equipment that requires dependable metal detection while maintaining installation flexibility and long-term durability.

Operating Principle

The sensor operates using electromagnetic induction. An oscillator located within the sensing head generates a high-frequency magnetic field. When a metallic object enters the sensing range, eddy currents are induced in the target material.

These currents alter the oscillator characteristics, allowing the sensor electronics to detect the presence of the object and switch the output accordingly. Since there is no physical contact between the sensor and the detected target, operational wear is significantly reduced.

This non-contact principle allows the Omron E2E-X2R5D1-TR-N 5M Inductive Proximity Sensor to be used in repetitive industrial processes where continuous switching cycles are required.

Usage Areas

• Industrial automation systems
• Transfer and conveyor equipment
• Packaging machinery
• Assembly line automation
• Machine tool monitoring
• Automated storage systems
• Robotic handling equipment
• Position verification systems

Industrial Applications

Material Handling Equipment

The sensor can detect metal carriers and moving machine elements within automated transport systems.

Automotive Manufacturing

Automotive production facilities often require confirmation of fixture positions and workpiece locations before assembly operations begin.

Packaging Machinery

Packaging equipment may use inductive sensors to monitor metallic mechanisms, guide assemblies, and actuator positions during production cycles.

Warehouse Automation

Storage and retrieval systems frequently employ proximity sensors to confirm the location of mechanical transfer components.

Advantages

• Radial cable outlet simplifies routing
• Long 5-meter cable supports distant control cabinets
• Compact M12 housing
• Flush mounting capability
• Reliable metal object detection
• High ingress protection ratings
• Oil-resistant cable construction
• Durable nickel-plated brass housing

Omron E2E-X2R5D1-TR-N 5M Sector-Based Usage Examples

In logistics centers, the sensor can verify metal shuttle positions before load transfer occurs. In automated machine assembly systems, it may confirm fixture engagement prior to initiating production sequences. In industrial packaging lines, the sensor can monitor metallic machine elements responsible for indexing and positioning functions.

Engineers interested in additional sensing technologies can review Omron sensor series for alternative housing sizes, output configurations, and sensing methods.

Considerations When Selecting This Sensor

Before implementation, engineers should evaluate sensing distance requirements, cable routing constraints, available mounting space, environmental conditions, and controller input specifications.

The radial cable design is particularly useful where equipment dimensions limit the use of standard straight cable exit configurations.

Omron E2E-X2R5D1-TR-N 5M Frequently Asked Questions

What is the sensing distance of this sensor?

The nominal sensing distance is 2.5 mm.

What is the benefit of the radial cable design?

It allows cable routing from the side of the sensor body, simplifying installation in confined spaces.

How long is the cable?

The sensor is supplied with a 5-meter oil-resistant PVC cable.

What type of output does the sensor use?

It utilizes a DC 2-wire normally open output.

Can it be mounted flush in metal?

Yes, the sensor is designed for flush mounting applications.

Which materials can it detect?

It is intended for the detection of metallic targets.

What protection ratings are provided?

The sensor is rated IP67, IP67G, and IP69K.

Which industries commonly use this model?

Automotive, logistics, packaging, machine building, and manufacturing industries frequently utilize this sensor.
