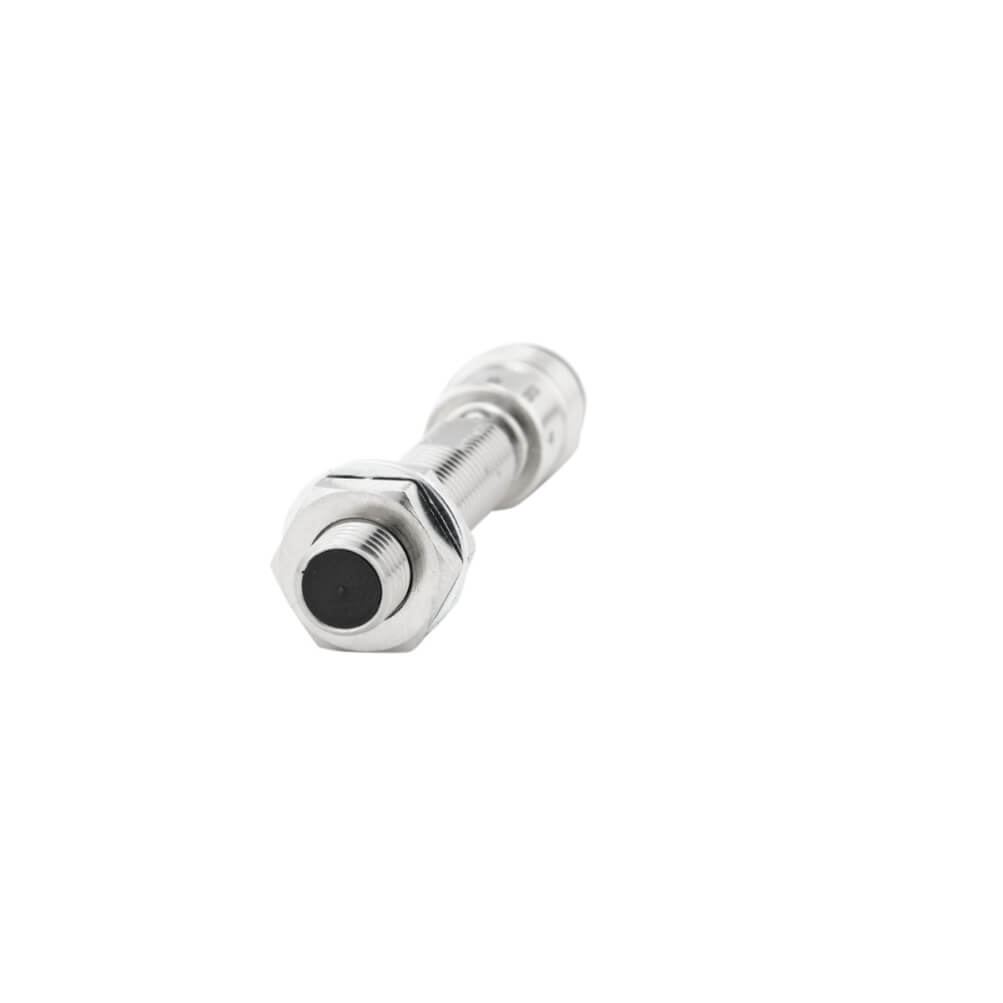

Omron E2E-X2C1L8-M1 Inductive Proximity Sensor

The Omron E2E-X2C1L8-M1 Inductive Proximity Sensor is engineered for industrial detection tasks where quick sensor replacement and flexible machine wiring are important. Unlike fixed-cable versions, this model incorporates an M12 connector, enabling simplified installation and maintenance in automated equipment. Its compact M8 housing supports integration into machinery where installation space is limited while maintaining reliable metal object detection.

Technical Description

The Omron E2E-X2C1L8-M1 Inductive Proximity Sensor belongs to the E2E NEXT family of inductive sensors. It features a shielded sensing structure with a nominal sensing distance of 2 mm and an NPN normally open output configuration. The sensor operates from a 10 to 30 VDC power supply and utilizes a standard M12 connector for electrical connection.

The stainless-steel housing improves resistance to mechanical stress and industrial contaminants, while IP67 and IP69K protection ratings support operation in environments exposed to moisture, washdown procedures, and airborne particles. :contentReference[oaicite:0]{index=0}

Working Principle

The sensor generates an electromagnetic field at its sensing surface. When a conductive metallic object enters the detection range, eddy currents are induced within the target. These currents alter the oscillator characteristics of the sensor, causing the output stage to switch.

This contactless operating method eliminates physical wear between the sensor and the detected object, making it suitable for applications involving frequent switching cycles and continuous machine operation.

Advantages of the M12 Connector Design

• Faster sensor replacement during maintenance.
• Reduced machine downtime.
• Simplified wiring and installation.
• Compatibility with industrial connector systems.
• Improved cable management.
• Suitable for modular machine architectures.
• Reliable environmental sealing when properly connected.

Typical Usage Areas

• Automated assembly machinery
• Machine tool positioning systems
• Conveyor transport equipment
• Robotic handling stations
• Packaging automation
• Material transfer systems
• Metal fabrication equipment
• Industrial inspection stations

Industrial Applications

Automated Manufacturing Cells

The sensor can confirm the presence of metal fixtures, machine components, and workpiece carriers before automated operations begin.

Robotic Production Systems

It is frequently used to verify tooling positions and detect metallic end-effectors within robotic workstations.

Machine Building Projects

Machine designers often utilize connector-based sensors to simplify assembly and future maintenance activities.

Packaging Equipment

The sensor helps monitor moving mechanical assemblies and metallic guide mechanisms in high-cycle production environments.

Sector-Specific Examples

In electronics manufacturing, the Omron E2E-X2C1L8-M1 Inductive Proximity Sensor may be installed in fixture-loading systems to verify carrier positioning before assembly operations. In logistics automation, it can detect metallic transfer components within sorting equipment.

The Omron E2E-X2C1L8-M1 Inductive Proximity Sensor is also used in machine retrofitting projects where connectorized sensors simplify upgrades and future servicing requirements.

Selection Considerations

• Confirm compatibility with NPN control inputs.
• Verify that the target material is metallic.
• Ensure the 2 mm sensing distance is suitable.
• Evaluate available mounting space.
• Select compatible M12 connector cables.
• Review environmental exposure requirements.
• Consider maintenance accessibility.

Additional Omron Sensor Resources

For related sensing technologies and compatible product families, visit Omron sensor products.

Frequently Asked Questions

What type of connector does this sensor use?

The sensor uses a standard M12 industrial connector.

What is the sensing distance?

The rated sensing distance is 2 mm.

Which output configuration is provided?

The sensor features an NPN normally open output.

Can the sensor detect non-metallic objects?

No. It is designed specifically for metallic target detection.

What protection ratings are available?

The sensor provides IP67 and IP69K environmental protection.

Why choose a connector version instead of a cable version?

Connector models allow faster replacement and simplified maintenance procedures.

Where is the Omron E2E-X2C1L8-M1 Inductive Proximity Sensor commonly used?

It is commonly installed in automation systems, machine tools, robotic cells, and packaging equipment.

What operating voltage is required?

The sensor operates from a 10 to 30 VDC power supply.
