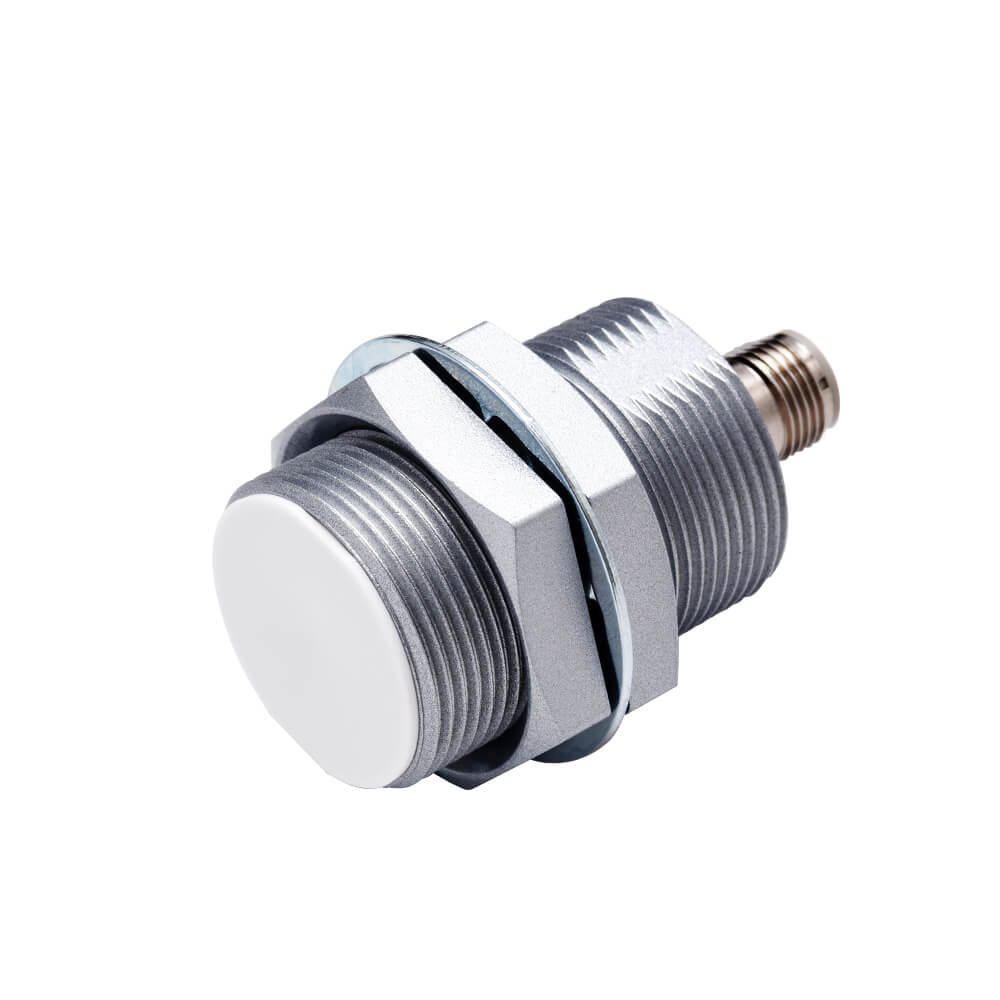

Omron E2E-X22C130-M1 Inductive Proximity Sensor

Industrial equipment frequently relies on accurate object detection to coordinate machine movements, monitor component positions, and maintain production continuity. The Omron E2E-X22C130-M1 Inductive Proximity Sensor provides non-contact metal detection for these applications, combining a long sensing range with a connector-based installation method that supports maintenance efficiency and system flexibility.

Technical Description

The Omron E2E-X22C130-M1 Inductive Proximity Sensor is part of Omron’s E2E NEXT family and is designed for detecting metallic objects within a nominal sensing distance of 22 mm. The sensor uses a DC 2-wire normally open output configuration and operates from a 10 to 30 VDC power supply.

An M12 connector interface allows quick integration into machine wiring systems and simplifies replacement procedures during service operations. The M30 threaded housing supports installation in automation equipment, material handling systems, and industrial machinery.

The nickel-plated brass construction provides durability while supporting reliable operation in environments exposed to vibration, dust, moisture, and routine cleaning procedures.

Working Principle

The sensor operates by generating a high-frequency electromagnetic field at its sensing surface. When a metallic target enters this field, eddy currents are induced in the target material. These currents influence the internal oscillator circuit, enabling the sensor to recognize object presence.

Once the preset threshold is reached, the sensor changes output state and provides a switching signal to the connected control system. This non-contact operating principle eliminates mechanical wear associated with traditional limit switches.

Typical Applications

• Metal object detection
• Machine position monitoring
• Automated conveyor systems
• Production line control
• Industrial packaging equipment
• Automated assembly systems
• Material transfer machinery
• Industrial logistics equipment

Industrial Applications

Robotic Production Cells

Robotic systems can use the sensor to verify workpiece positions and confirm the presence of metallic components before initiating automated operations.

Packaging Machinery

Packaging systems often rely on metal detection points to synchronize machine actions and monitor tooling positions.

Warehouse Automation

Automated storage and retrieval systems use proximity sensors to monitor carriers, transport mechanisms, and moving equipment throughout logistics operations.

General Manufacturing

Manufacturing facilities can integrate the sensor into machine tools, transfer lines, and assembly stations where repeatable metallic object detection is required.

Advantages

• 22 mm sensing distance
• DC 2-wire output configuration
• M12 connector installation
• IP67 and IP69K protection ratings
• Durable nickel-plated brass housing
• Suitable for harsh industrial environments
• Non-contact sensing technology
• Simplified maintenance procedures

Engineers looking for additional automation solutions can review Omron sensor solutions covering a broad range of industrial detection technologies.

Selection Considerations

• Required sensing distance
• Target material composition
• Environmental protection requirements
• Available installation space
• Electrical interface compatibility
• Connector requirements
• Maintenance accessibility
• Control system architecture

Industry Usage Examples

• Detecting metallic carriers on automated lines
• Monitoring machine actuator positions
• Verifying tooling locations in manufacturing equipment
• Tracking metal pallets in logistics facilities
• Confirming workpiece presence before automated handling
• Monitoring transfer mechanisms in production systems

The Omron E2E-X22C130-M1 Inductive Proximity Sensor is widely used where dependable metal detection is required. The Omron E2E-X22C130-M1 Inductive Proximity Sensor supports industrial automation systems that rely on stable and repeatable non-contact sensing performance.

Frequently Asked Questions

1. What does the Omron E2E-X22C130-M1 Inductive Proximity Sensor detect?

The sensor is designed for detecting conductive metallic objects.

2. What is the nominal sensing distance?

The sensing distance is 22 mm.

3. Which output configuration is provided?

The sensor uses a DC 2-wire normally open output.

4. How is the sensor connected?

An M12 connector is used for electrical connection.

5. What operating voltage is supported?

The operating voltage range is 10 to 30 VDC.

6. What environmental protection ratings are available?

The sensor is rated IP67 and IP69K.

7. Is it suitable for industrial machinery?

Yes. The sensor is designed for automation equipment, manufacturing machinery, and material handling systems.

8. What are the benefits of non-contact sensing?

Non-contact operation reduces mechanical wear and supports consistent long-term performance.
