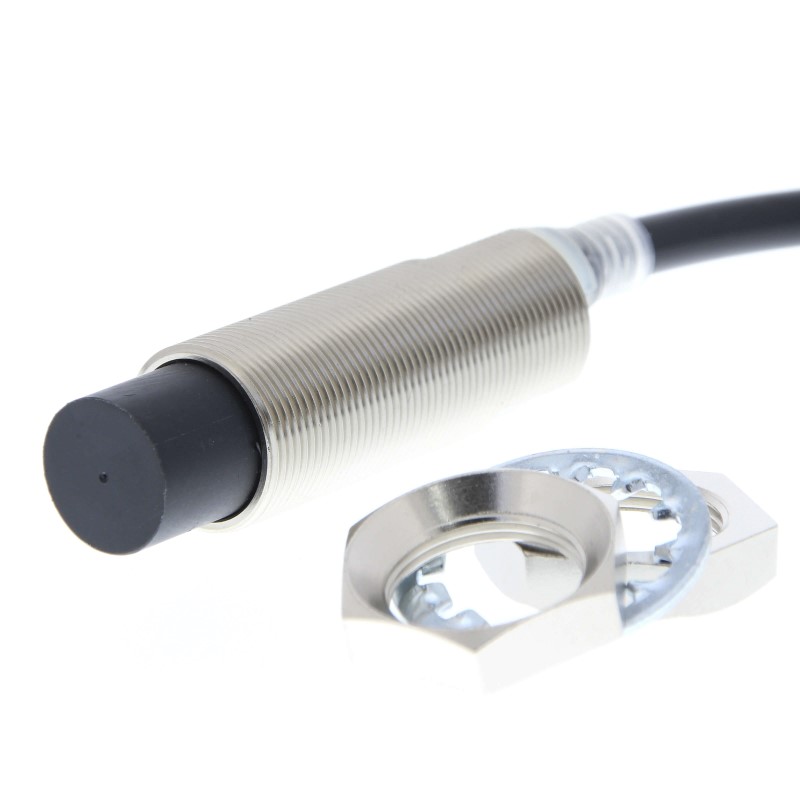

Omron E2E-X20MD1L18-TR 5M Inductive Proximity Sensor

Technical Description

The Omron E2E-X20MD1L18-TR 5M Inductive Proximity Sensor is designed for reliable detection of metallic targets in industrial automation environments. This M18 cylindrical sensor combines a 20 mm sensing distance with a non-flush mounting configuration, allowing greater installation flexibility where extended sensing range is required.

The extended 5-meter cable provides additional installation options for equipment layouts where control cabinets, junction boxes, or PLC interfaces are located at a significant distance from sensing points. The sensor is part of the E2E NEXT series and is engineered for long-term operation in demanding industrial environments.

The Omron E2E-X20MD1L18-TR 5M Inductive Proximity Sensor is frequently integrated into machine automation systems where accurate position confirmation and metal object detection are essential for process control.

Operating Principle

The sensor generates a high-frequency electromagnetic field at its sensing face. When a metal object enters this field, eddy currents are generated within the target material. These currents alter the oscillator characteristics inside the sensor, enabling the internal circuitry to recognize the target and switch the output.

This non-contact detection method eliminates mechanical wear and enables stable operation even in applications involving frequent switching cycles.

Key Features

Long Sensing Distance

A 20 mm sensing range enables detection of metal targets without requiring close proximity installation.

Extended Cable Configuration

The 5-meter cable simplifies installation in larger machines and production lines where longer wiring distances are necessary.

Industrial Protection

The sensor housing is designed to withstand exposure to dust, moisture, oils, and washdown procedures commonly encountered in manufacturing facilities.

Applications

• Automated assembly equipment
• Conveyor position monitoring
• Machine safety interlock systems
• Production line indexing
• Automated storage systems
• Transfer station monitoring
• Industrial material handling
• Metal component verification

Industrial Applications

In warehousing systems, the sensor can be used to detect pallet positioning and transfer mechanism status. Packaging equipment may utilize the sensor to monitor machine movements and verify component positions. In manufacturing environments, it is often applied to monitor metal tooling, moving fixtures, and mechanical actuators.

The Omron E2E-X20MD1L18-TR 5M Inductive Proximity Sensor is also suitable for large production systems where sensor locations are far from centralized control panels.

Advantages

• 20 mm sensing capability
• Extended 5 m cable length
• Reliable metal object detection
• Maintenance-free sensing principle
• Resistance to industrial contaminants
• Compact threaded housing
• Suitable for automated machinery
• Durable construction for industrial use

Industry Examples

Logistics Facilities

Used for transfer conveyor position monitoring and pallet movement verification.

Packaging Plants

Detects machine actuator positions and indexing components.

Food Processing Equipment

Supports equipment monitoring in areas requiring frequent cleaning procedures.

Industrial Manufacturing

Provides position feedback for automated production equipment.

Considerations When Selecting This Sensor

• Verify the target is metallic.
• Confirm the required sensing distance matches the application.
• Consider available mounting space for the M18 housing.
• Evaluate cable routing requirements for the 5 m cable.
• Review environmental exposure conditions.
• Confirm compatibility with the control system input specifications.

Additional information about Omron sensor series can help engineers compare sensing technologies for automation projects.

Frequently Asked Questions

What is the sensing distance of this sensor?

The rated sensing distance is 20 mm.

What type of objects can it detect?

The sensor is designed for metallic object detection.

Does it require physical contact?

No. Detection is performed through electromagnetic induction.

What supply voltage is supported?

The sensor operates from 10 to 30 VDC.

Why does this version use a 5 m cable?

The longer cable simplifies installation in larger machines and production systems.

Can it operate in wet environments?

Yes. The sensor provides IP67, IP67G, and IP69K protection ratings.

Is the Omron E2E-X20MD1L18-TR 5M Inductive Proximity Sensor suitable for conveyors?

Yes. It is commonly used for conveyor positioning and monitoring applications.

Where is the Omron E2E-X20MD1L18-TR 5M Inductive Proximity Sensor typically installed?

It is widely used in manufacturing, logistics, packaging, and automated handling systems.
