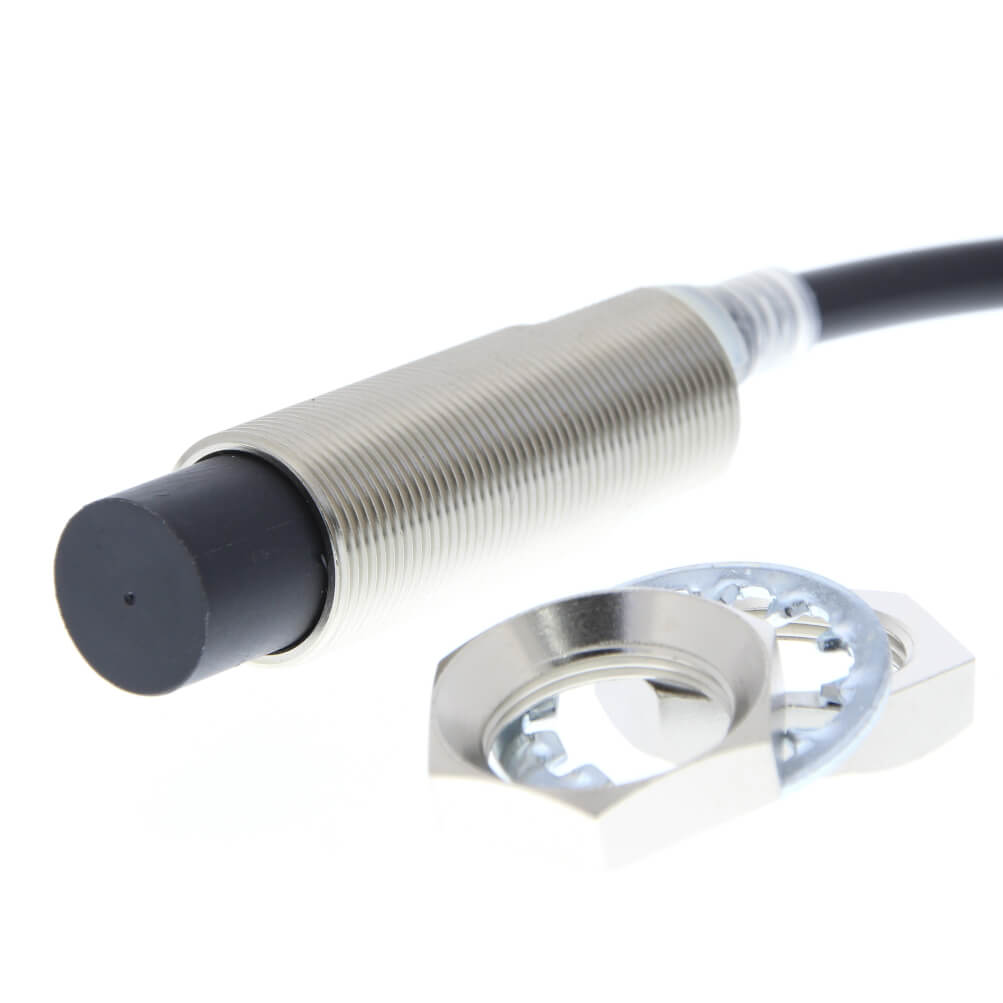

Omron E2E-X20MD1L18-T 2M Inductive Proximity Sensor

Reliable position monitoring is a fundamental requirement in industrial automation systems where metallic components must be detected consistently under varying operating conditions. The Omron E2E-X20MD1L18-T 2M Inductive Proximity Sensor is developed to provide stable metal object detection while supporting machinery exposed to vibration, contaminants, and continuous operation cycles.

Its non-flush M18 housing enables an extended sensing distance, while the 2-meter oil-resistant cable supports installation in machine frames, production equipment, and material transport systems.

Technical Description

The Omron E2E-X20MD1L18-T 2M Inductive Proximity Sensor belongs to the E2E NEXT series and utilizes inductive sensing technology for non-contact detection of conductive metallic targets. The sensor features a nickel-plated brass housing designed to withstand demanding industrial environments.

This model incorporates a normally closed output configuration and a 2-wire DC connection structure, making it suitable for control systems that require continuous signal monitoring.

Working Principle

The sensor continuously generates a high-frequency electromagnetic field from its sensing face. When a metallic target enters this field, eddy currents are induced within the object. These currents influence the oscillator circuit, causing the sensor output to change state.

The Omron E2E-X20MD1L18-T 2M Inductive Proximity Sensor performs detection without physical contact, reducing mechanical wear and supporting long-term operational stability.

Applications

• Production machinery
• Automated assembly stations
• Metal processing equipment
• Industrial conveyors
• Position verification systems
• Packaging machines
• Automated storage systems
• Robotic manufacturing cells

Industrial Applications

Within assembly operations, the sensor can verify fixture positions and detect metallic carriers moving between workstations. In machine-building projects, it is frequently integrated into custom equipment requiring repeatable object detection.

Packaging machinery often employs inductive sensors to monitor mechanical positions, indexing systems, and actuator movement. The robust environmental protection ratings support use in facilities exposed to dust, moisture, and cleaning procedures.

Advantages

• 20 mm sensing distance
• Normally closed output operation
• Contactless metal detection
• Oil-resistant flexible cable
• High environmental protection ratings
• Durable nickel-plated brass housing
• Suitable for continuous industrial operation
• Reduced maintenance requirements

Sector-Specific Examples

Assembly Manufacturing

Used for detecting metallic fixtures and monitoring workpiece transfer systems.

Packaging Industry

Supports machine position feedback and automated indexing mechanisms.

Industrial Machinery

Provides position sensing for moving machine components and mechanisms.

Metal Fabrication

Detects workpieces and tooling positions during automated production processes.

Considerations When Selecting This Sensor

• Verify that the target object is metallic.
• Confirm that a normally closed output is required.
• Ensure sufficient installation space for the M18 housing.
• Review sensing distance requirements.
• Consider environmental exposure conditions.
• Check compatibility with the machine control architecture.

Additional Omron Sensor Resources

For related sensing technologies and detection solutions, explore Omron sensor products.

Frequently Asked Questions

What is the sensing distance of this sensor?

The nominal sensing distance is 20 mm.

What type of target can be detected?

The sensor is designed to detect metallic objects.

What output configuration does this model use?

This version operates with a normally closed 2-wire DC output.

Does the sensor require contact with the target?

No. Detection is performed using an electromagnetic field.

Can it be installed in harsh environments?

Yes. The sensor is rated IP67, IP67G, and IP69K.

What is the cable length?

The sensor is supplied with a 2-meter cable.

Where is the Omron E2E-X20MD1L18-T 2M Inductive Proximity Sensor commonly used?

It is commonly installed in machinery, conveyors, packaging systems, and automated manufacturing equipment.

Why choose an inductive proximity sensor?

Inductive sensors provide reliable metal detection without mechanical contact, reducing wear and maintenance.
