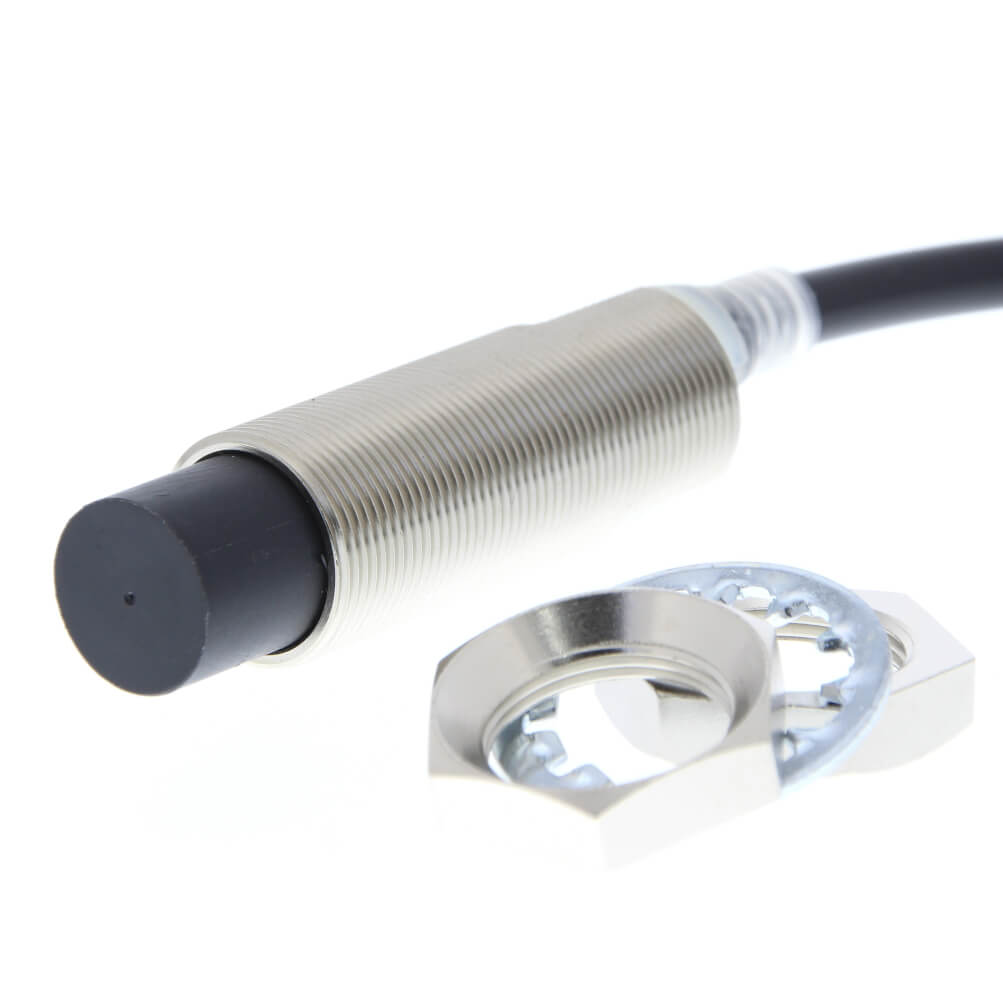

Omron E2E-X20MD1L18 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Size | M18 |
| Mounting Type | Non-flush |
| Sensing Distance | 20 mm |
| Output Type | DC 2-wire |
| Operation Mode | Normally Open |
| Connection Method | Cable |
| Cable Length | 2 m |
| Cable Specification | PVC oil-resistant |
| Housing Material | Nickel-plated brass |
| Overall Length | 77.3 mm |
| Thread Length | 47 mm |
| Protection Rating | IP67, IP67G, IP69K |
The Omron E2E-X20MD1L18 2M Inductive Proximity Sensor is a cylindrical M18 inductive sensor designed for non-contact detection of metallic objects in automated machinery. Its 20 mm sensing distance supports applications where the target may not pass extremely close to the sensing face, reducing the risk of mechanical contact during operation.
Technical Description
This sensor belongs to the E2E NEXT series and uses a non-flush housing structure. The nickel-plated brass body provides mechanical strength for industrial installations, while the 2 m oil-resistant PVC cable supports direct wiring into machine control panels, junction boxes, or distributed I/O modules.
The Omron E2E-X20MD1L18 2M Inductive Proximity Sensor uses a DC 2-wire normally open output. This makes it suitable for control systems where simplified wiring and direct signal integration are required.
Working Principle
The sensor generates an electromagnetic field from its sensing face. When a metallic target enters this field, eddy currents are produced in the object. This changes the internal oscillation state of the sensor, which then switches the output signal.
Because the detection process does not require physical contact, the sensor helps reduce wear in repetitive machine cycles.
Usage Areas
- Conveyor position detection
- Metal part presence confirmation
- Automated assembly machines
- Packaging equipment
- Transfer systems
- Machine tool position monitoring
- Industrial handling equipment
Industrial Applications
Assembly Lines
In assembly stations, the sensor can confirm whether a metal component is correctly positioned before the next operation begins.
Packaging Machines
It can be used to monitor actuator positions, guide rails, or moving metallic elements inside packaging systems.
Material Handling
In conveyor systems, it may detect metal carriers, pallets, or fixtures as part of sequence control.
Advantages
- Long 20 mm sensing distance for M18 installation layouts
- Non-contact operation for reduced mechanical wear
- Oil-resistant PVC cable for machine environments
- IP67, IP67G, and IP69K protection ratings
- Durable nickel-plated brass housing
- Simple DC 2-wire output structure
For related product families, engineers can review Omron sensor products when comparing sensing options for automation systems.
Omron E2E-X20MD1L18 2M Selection Considerations
Before selecting this sensor, evaluate the sensing distance, mounting space, metallic target size, wiring method, environmental exposure, and control input compatibility. Since it is a non-flush sensor, correct installation clearance around the sensing head should be considered.
Frequently Asked Questions
What type of sensor is this product?
It is an inductive proximity sensor for detecting metallic objects without contact.
What is the sensing distance?
The rated sensing distance is 20 mm.
What output type does it use?
It uses a DC 2-wire output.
Is the operation mode normally open?
Yes, the sensor has a normally open operation mode.
What is the cable length?
The sensor is supplied with a 2 m cable.
Can it be mounted flush with metal?
No, it is a non-flush sensor and requires appropriate mounting clearance.
What is the housing material?
The housing is nickel-plated brass.
Where is the Omron E2E-X20MD1L18 2M Inductive Proximity Sensor used?
It is used in conveyors, assembly machines, packaging equipment, and industrial automation systems.
