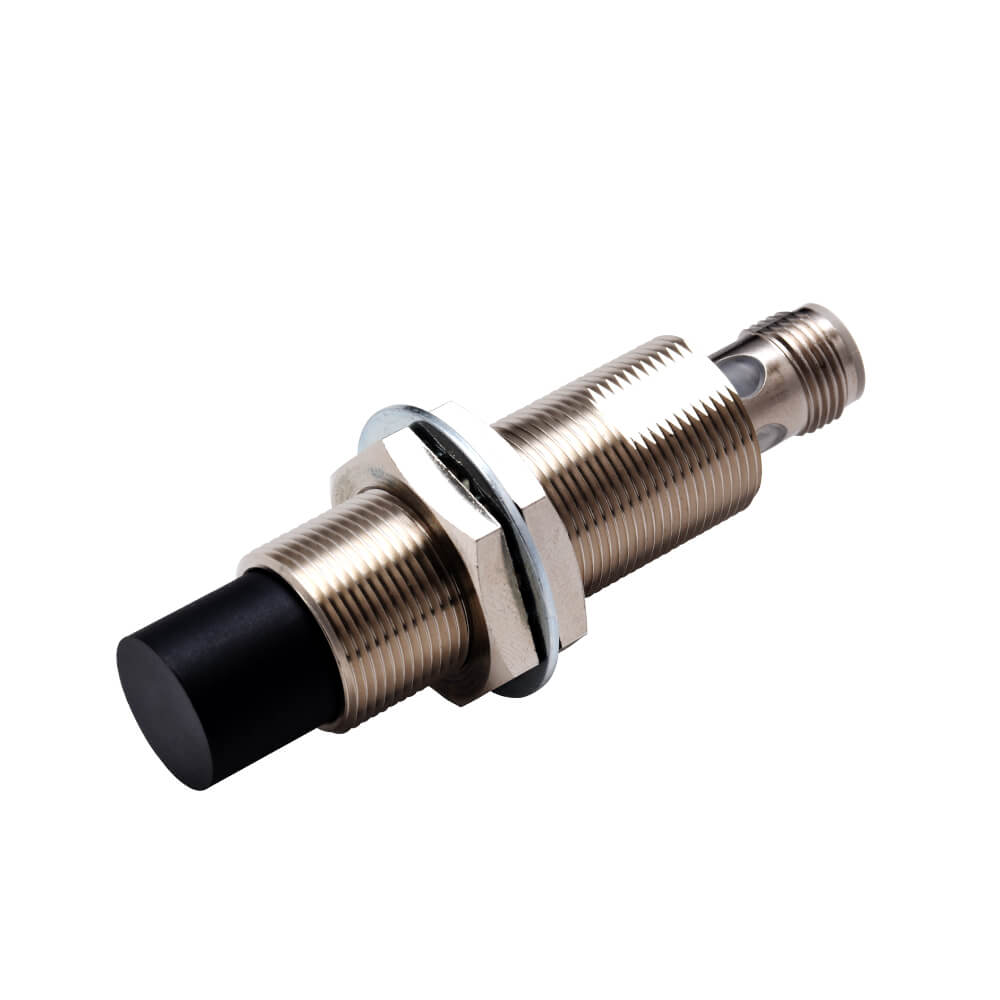

Omron E2E-X20MB3DL18-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M18 |
| Mounting Type | Non-flush (Unshielded) |
| Sensing Distance | 20 mm |
| Output Type | PNP, NO + NC |
| Communication | IO-Link COM2 (38.4 kbps) |
| Connection Method | M12 Connector |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 200 Hz |
| Housing Material | Nickel-Plated Brass |
| Overall Length | 75 mm |
| Thread Length | 47 mm |
| Operating Temperature | -25°C to +70°C |
| Protection Rating | IP67 / IP69K |
The Omron E2E-X20MB3DL18-M1 Inductive Proximity Sensor is designed for reliable non-contact detection of metallic targets in industrial automation systems. As part of the E2E NEXT series, this sensor combines long sensing distance capabilities with integrated IO-Link communication, enabling enhanced diagnostic and condition-monitoring functions within modern production environments.
Technical Overview
The Omron E2E-X20MB3DL18-M1 Inductive Proximity Sensor features an M18 cylindrical housing with a non-flush mounting design and a sensing distance of 20 mm. The sensor uses a nickel-plated brass body that provides mechanical durability and resistance to industrial contaminants.
Its PNP output configuration supports both normally open and normally closed operation modes, allowing greater flexibility when integrating the sensor into PLC-based control architectures, machine automation systems, and distributed I/O networks.
Working Principle
The sensor operates using an electromagnetic field generated at the sensing face. When a metallic object enters the sensing zone, eddy currents are induced within the target material. These currents alter the oscillation characteristics of the sensor’s internal circuit, resulting in a switching signal.
The Omron E2E-X20MB3DL18-M1 Inductive Proximity Sensor performs this detection process without physical contact, minimizing wear and enabling long-term operational stability.
Key Functional Characteristics
- 20 mm sensing distance for metallic object detection
- Integrated IO-Link COM2 communication capability
- PNP output with NO and NC operation modes
- M12 connector interface
- IP67 and IP69K environmental protection
- Nickel-plated brass housing for industrial durability
- 200 Hz switching frequency
- Wide operating voltage range from 10 VDC to 30 VDC
Applications and Usage Areas
The Omron E2E-X20MB3DL18-M1 Inductive Proximity Sensor is suitable for industrial processes requiring reliable metal detection and position monitoring. Its extended sensing distance allows installation with greater mechanical clearance, reducing the possibility of accidental impact.
- Automated assembly equipment
- Packaging machinery
- Material transfer systems
- Conveyor line positioning
- Automotive manufacturing cells
- Industrial robotics
- Machine tool monitoring
- Warehouse automation systems
Engineers frequently use the Omron E2E-X20MB3DL18-M1 Inductive Proximity Sensor for end-position detection, part presence verification, and machine status monitoring tasks.
Industrial Applications
Automotive Manufacturing
The sensor can detect metal fixtures, body panels, and moving machine components during welding and assembly operations.
Packaging Industry
Packaging machines utilize inductive sensing to confirm actuator positions and ensure proper sequence control.
Material Handling Systems
Conveyor systems use the sensor for detecting carriers, pallets, and transfer mechanisms while maintaining continuous process flow.
Machine Building
Machine manufacturers integrate the sensor into equipment requiring precise monitoring of moving metallic components.
Advantages
- Long sensing distance reduces installation constraints
- Non-contact operation minimizes mechanical wear
- Integrated IO-Link supports diagnostic information exchange
- High environmental protection for demanding conditions
- Compact M18 form factor simplifies installation
- Suitable for predictive maintenance strategies
Additional information regarding Omron sensor product lines can help engineers compare different sensing technologies for specific automation requirements.
Factors to Consider During Selection
- Required sensing distance for the application
- Available installation space
- Target material characteristics
- PLC and control system compatibility
- Environmental exposure conditions
- Communication requirements such as IO-Link integration
- Connector and cabling preferences
Careful evaluation of these parameters ensures that the Omron E2E-X20MB3DL18-M1 Inductive Proximity Sensor matches the operational demands of the intended application.
Frequently Asked Questions
What type of sensor is the Omron E2E-X20MB3DL18-M1 Inductive Proximity Sensor?
It is an inductive proximity sensor designed for detecting metallic objects without physical contact.
What is the sensing distance?
The rated sensing distance is 20 mm.
Does the sensor support IO-Link communication?
Yes. It supports IO-Link COM2 communication at 38.4 kbps.
What output configuration is available?
The sensor provides a PNP output with both normally open and normally closed functions.
Which connector type is used?
The device uses a standard M12 connector.
Can it operate in harsh industrial environments?
Yes. Its IP67 and IP69K protection ratings support operation in demanding industrial conditions.
What is the operating temperature range?
The sensor operates from -25°C to +70°C.
Where is the Omron E2E-X20MB3DL18-M1 Inductive Proximity Sensor commonly used?
It is commonly used in automation equipment, packaging systems, material handling installations, robotics, and machine-building applications.
Why is IO-Link beneficial in industrial systems?
IO-Link enables device diagnostics, parameter management, and condition monitoring through compatible control systems.
What material is used for the housing?
The housing is manufactured from nickel-plated brass to provide mechanical strength and corrosion resistance.
