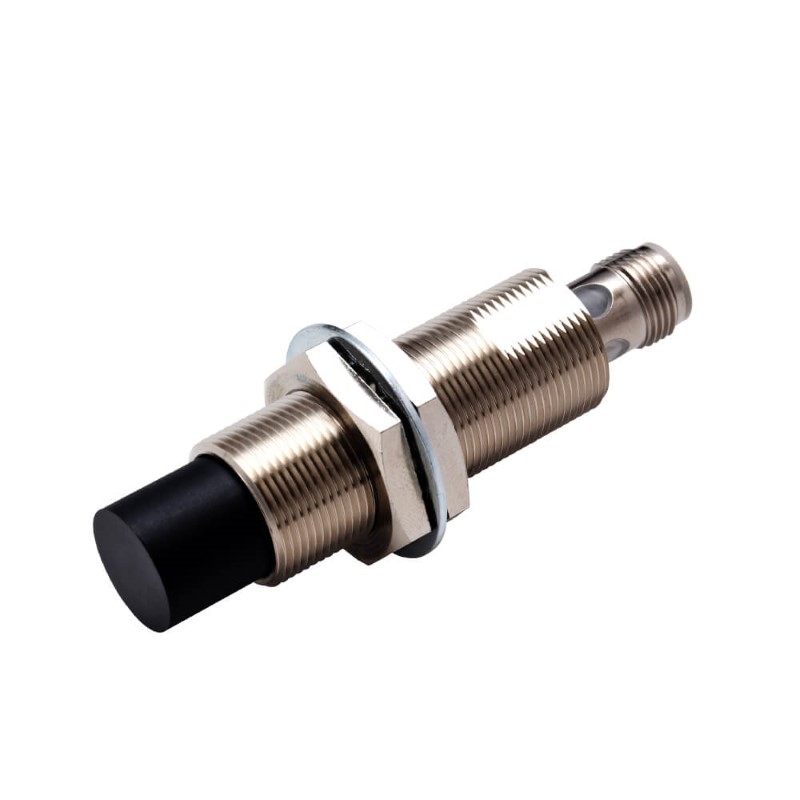

Omron E2E-X20MB1TL18-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M18 |
| Mounting Type | Non-Flush |
| Sensing Distance | 20 mm |
| Output Type | PNP Normally Open |
| Communication | IO-Link COM3 |
| Connection Type | M12 4-Pin Connector |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 200 Hz |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP67G / IP69K |
| Operating Temperature | -25°C to +70°C |
| Overall Length | 77.3 mm |
The Omron E2E-X20MB1TL18-M1 Inductive Proximity Sensor is a long-range industrial sensor developed for metal detection applications that require both reliable switching performance and digital communication capabilities. As part of the E2E NEXT product family, this model integrates IO-Link functionality and an M12 connector interface, making it suitable for modern automation systems where device diagnostics and parameter management are increasingly important.
Technical Description
The Omron E2E-X20MB1TL18-M1 Inductive Proximity Sensor features an M18 cylindrical housing with a rated sensing distance of 20 mm. It uses inductive sensing technology to detect metallic objects without physical contact. The sensor provides a PNP normally open switching output and supports IO-Link COM3 communication for process data transmission and device configuration.
The nickel-plated brass housing offers mechanical durability, while the M12 connector enables fast installation and simplified replacement procedures. This connector-based design is often preferred in automated production facilities where maintenance efficiency is a key consideration.
Working Principle
The sensor operates by generating an electromagnetic field from its active sensing surface. When a conductive metal target enters this field, eddy currents are generated within the target material. These currents alter the oscillation characteristics of the sensor circuit, allowing the internal electronics to identify the presence of the object.
The Omron E2E-X20MB1TL18-M1 Inductive Proximity Sensor converts this detection event into a switching signal while simultaneously providing operational information through the IO-Link interface. This allows both machine control and condition monitoring functions to be performed using a single sensing device.
Application Areas
- Automated assembly systems
- Machine tool equipment
- Industrial robotics
- Packaging machinery
- Conveyor automation
- Material handling systems
- Warehouse automation
- Production line monitoring
Industrial Applications
In robotic production cells, the Omron E2E-X20MB1TL18-M1 Inductive Proximity Sensor can monitor fixture positions and detect metallic workpieces before automated operations begin. In conveyor systems, it may verify pallet positions and monitor the movement of metallic carriers through sorting and transfer stations.
Machine builders frequently use IO-Link-enabled sensors to simplify commissioning procedures and centralize diagnostic information. The M12 connector allows quick replacement of field devices without rewiring the entire installation.
Advantages
- 20 mm sensing distance
- Integrated IO-Link communication
- COM3 high-speed communication support
- M12 connector for simplified installation
- PNP normally open output
- IP67, IP67G, and IP69K protection ratings
- Nickel-plated brass housing
- Suitable for predictive maintenance strategies
Sector-Specific Examples
Automotive Production
Detection of metallic body components and fixture verification before assembly operations.
Logistics Facilities
Position monitoring of metallic transport carriers within automated warehouse systems.
Packaging Operations
Verification of machine positions and transfer mechanisms in automated packaging lines.
Industrial Machinery
Monitoring moving machine components and actuator positions during production cycles.
Product Selection Considerations
When selecting the Omron E2E-X20MB1TL18-M1 Inductive Proximity Sensor, engineers should consider communication requirements, connector preferences, controller compatibility, installation space, and sensing distance needs. Applications utilizing centralized diagnostics and device parameterization can benefit from the integrated IO-Link functionality.
Additional sensing technologies and related devices can be explored through Omron sensor product ranges.
Frequently Asked Questions
1. What is the sensing distance?
The sensor provides a rated sensing distance of 20 mm.
2. What housing size does the sensor use?
The device uses an M18 threaded cylindrical housing.
3. What output configuration is available?
The sensor features a PNP normally open output.
4. Does the sensor support digital communication?
Yes. It includes IO-Link COM3 communication functionality.
5. What connection method is used?
The sensor uses a standard M12 4-pin industrial connector.
6. Is the sensor suitable for harsh industrial environments?
Yes. The sensor provides IP67, IP67G, and IP69K environmental protection ratings.
7. What are the benefits of IO-Link integration?
IO-Link enables parameter configuration, diagnostics, device identification, and process data exchange through compatible control systems.
8. Where is the Omron E2E-X20MB1TL18-M1 Inductive Proximity Sensor commonly used?
It is commonly installed in robotics, machine automation, logistics systems, conveyor applications, packaging equipment, and manufacturing facilities.
