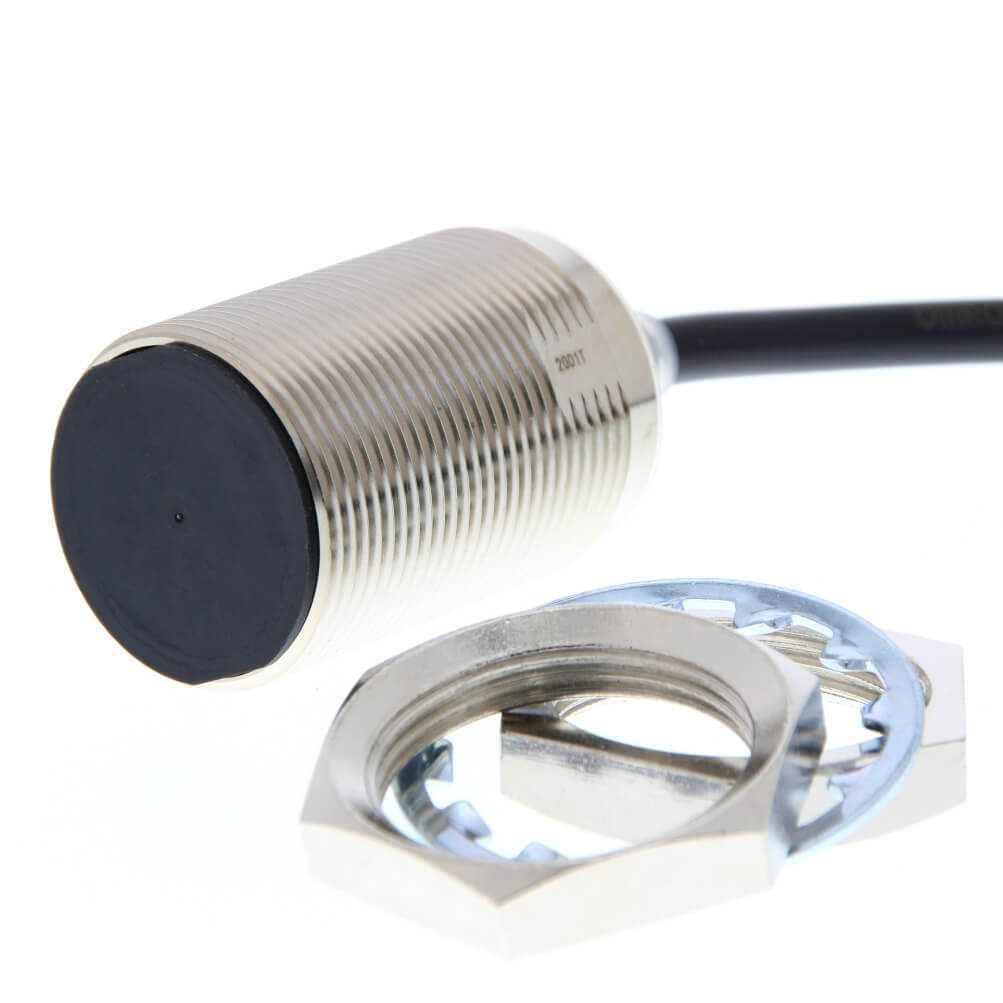

Omron E2E-X20D230-TR 5M Inductive Proximity Sensor

The Omron E2E-X20D230-TR 5M Inductive Proximity Sensor is engineered for industrial automation systems where reliable metal detection and continuous cable movement are both important requirements. This model combines a long sensing distance with a flexible robotic cable structure, making it suitable for dynamic applications involving moving machine elements, robotic arms, and automated transfer equipment.

Technical Description

The Omron E2E-X20D230-TR 5M Inductive Proximity Sensor belongs to the E2E NEXT series of cylindrical inductive sensors. It features an M30 threaded housing and a rated sensing distance of 20 mm. The sensor operates using a DC 2-wire output configuration and normally closed switching logic.

The sensor housing is manufactured from nickel-plated brass to provide resistance against mechanical wear and exposure to industrial contaminants. The integrated oil-resistant PVC cable is designed for demanding factory environments where repeated motion may occur.

Working Principle

The sensor generates a high-frequency electromagnetic field at its sensing face. When a metallic object enters the detection zone, eddy currents are induced within the target material. These currents absorb energy from the electromagnetic field, causing a measurable change in the oscillator circuit.

The internal electronics detect this variation and activate the output signal. Because the sensing process is completely contactless, the Omron E2E-X20D230-TR 5M Inductive Proximity Sensor avoids the wear mechanisms associated with mechanical switches.

Application Areas

• Robotic assembly systems
• Automated manufacturing cells
• Machine tool equipment
• Conveyor automation systems
• Packaging machinery
• Material handling equipment
• Automated storage systems
• Industrial positioning systems

Industrial Applications

In robotic welding stations, the Omron E2E-X20D230-TR 5M Inductive Proximity Sensor can verify fixture positions before production cycles begin. The flexible cable design helps accommodate repetitive movement associated with robotic equipment.

In conveyor transport systems, the sensor can detect metallic pallets approaching transfer points and sorting mechanisms. In machine-building projects, it may be used for actuator position monitoring, machine sequencing, and part presence verification.

Advantages

• 20 mm sensing distance
• Flexible robotic cable construction
• Suitable for moving machine applications
• High resistance to vibration
• IP67, IP67G, and IP69K protection ratings
• Nickel-plated brass housing
• Non-contact sensing technology
• Simple DC 2-wire integration

Sector-Specific Examples

Automotive Industry

Detection of steel fixtures during automated body assembly operations.

Warehouse Automation

Monitoring metallic transport carriers within automated storage systems.

Packaging Facilities

Position verification of moving machine assemblies and transport mechanisms.

Machine Manufacturing

End-position detection for moving mechanical structures and actuators.

Product Selection Considerations

When selecting the Omron E2E-X20D230-TR 5M Inductive Proximity Sensor, engineers should evaluate sensing distance requirements, available installation space, target material properties, and expected cable movement conditions. Applications involving continuous cable flexing may benefit from the flexible cable design incorporated into this model.

Additional sensing technologies can be reviewed through Omron sensor series.

Omron E2E-X20D230-TR 5M Frequently Asked Questions

1. What is the sensing distance?

The sensor offers a rated sensing distance of 20 mm.

2. What type of output does the sensor provide?

It uses a DC 2-wire normally closed output configuration.

3. What is the housing size?

The device uses an M30 threaded cylindrical housing.

4. Why is a robotic cable used?

The robotic cable supports applications involving continuous movement and repeated bending.

5. What supply voltage is required?

The operating voltage range is 10 to 30 VDC.

6. What environmental protection ratings are available?

The sensor provides IP67, IP67G, and IP69K protection ratings.

7. Can the sensor operate in harsh industrial environments?

Yes. The housing construction and protection ratings support operation in demanding industrial conditions.

8. Where is the Omron E2E-X20D230-TR 5M Inductive Proximity Sensor commonly installed?

It is frequently installed in robotics, conveyor automation, packaging machinery, machine tools, and automated manufacturing systems.
