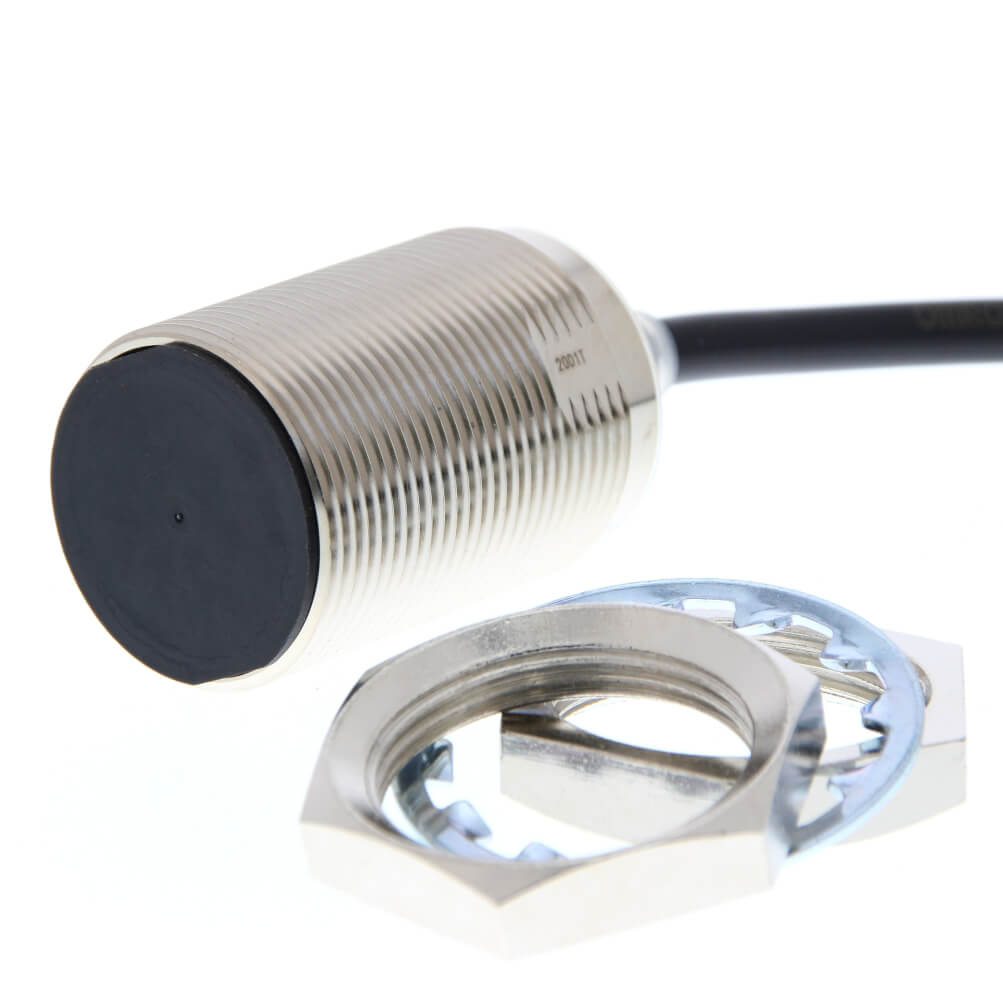

Omron E2E-X20D130-R 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Diameter | M30 |
| Sensing Distance | 20 mm |
| Output Type | DC 2-Wire |
| Output Configuration | Normally Open (NO) |
| Connection Method | Pre-Wired Cable |
| Cable Length | 2 m |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP67G / IP69K |
| Thread Length | 38 mm |
| Operating Principle | Inductive Metal Detection |
Reliable position monitoring is a fundamental requirement in automated production equipment. The Omron E2E-X20D130-R Inductive Proximity Sensor is developed to detect metallic objects without physical contact while supporting stable machine operation under demanding industrial conditions.
The integrated 2-meter cable simplifies installation in equipment where sensor mounting locations are positioned away from control cabinets or terminal boxes.
Technical Description
The Omron E2E-X20D130-R Inductive Proximity Sensor utilizes inductive sensing technology and provides a nominal sensing distance of 20 mm. The sensor is housed in an M30 cylindrical body manufactured from nickel-plated brass for mechanical durability.
Its DC 2-wire configuration allows straightforward integration into industrial control circuits, while the pre-wired cable design reduces connector requirements during installation.
Working Principle
The sensor continuously generates an electromagnetic field. When a metallic object enters the sensing range, induced eddy currents alter the field characteristics. The internal electronics recognize this change and activate the output.
Since detection occurs electronically, there is no direct contact between the sensor and the target object.
Usage Areas
- Production machinery
- Conveyor automation
- Metalworking equipment
- Industrial lifting systems
- Transfer stations
- Automated storage systems
- Process monitoring installations
Industrial Applications
Metal Fabrication Facilities
The sensor can verify metal workpiece positions before machining or transfer operations begin.
Conveyor Transport Systems
Detection of pallets, carriers, and machine actuators can be performed without mechanical contact.
Automated Packaging Lines
Machine sequences often rely on proximity feedback to synchronize moving components.
Advantages
- 20 mm sensing capability
- 2-meter integrated cable
- Non-contact detection technology
- Durable metal housing
- Resistance to industrial contaminants
- IP67, IP67G, and IP69K protection
- Suitable for long-term machine operation
Omron E2E-X20D130-R Selection Considerations
Target material, available installation space, cable routing requirements, environmental conditions, and switching architecture should all be reviewed before selecting a sensor.
The Omron E2E-X20D130-R Inductive Proximity Sensor is often selected where direct cable routing is preferred over connector-based installations.
Additional details regarding Omron sensor solutions may help during system design and component selection.
Omron E2E-X20D130-R Frequently Asked Questions
What objects can this sensor detect?
It is designed to detect metallic targets using inductive sensing technology.
How long is the cable?
The integrated cable length is 2 meters.
What sensing distance is available?
The nominal sensing distance is 20 mm.
Is physical contact required?
No. Detection occurs without contact.
Can it be used outdoors?
Environmental suitability depends on the complete installation design, but the sensor includes high ingress protection ratings.
What housing material is used?
The body is constructed from nickel-plated brass.
Does it support automation systems?
Yes. It is commonly integrated with PLC-controlled machinery.
What industries commonly use this sensor?
Manufacturing, packaging, material handling, metal processing, and logistics facilities frequently use inductive proximity sensors.
