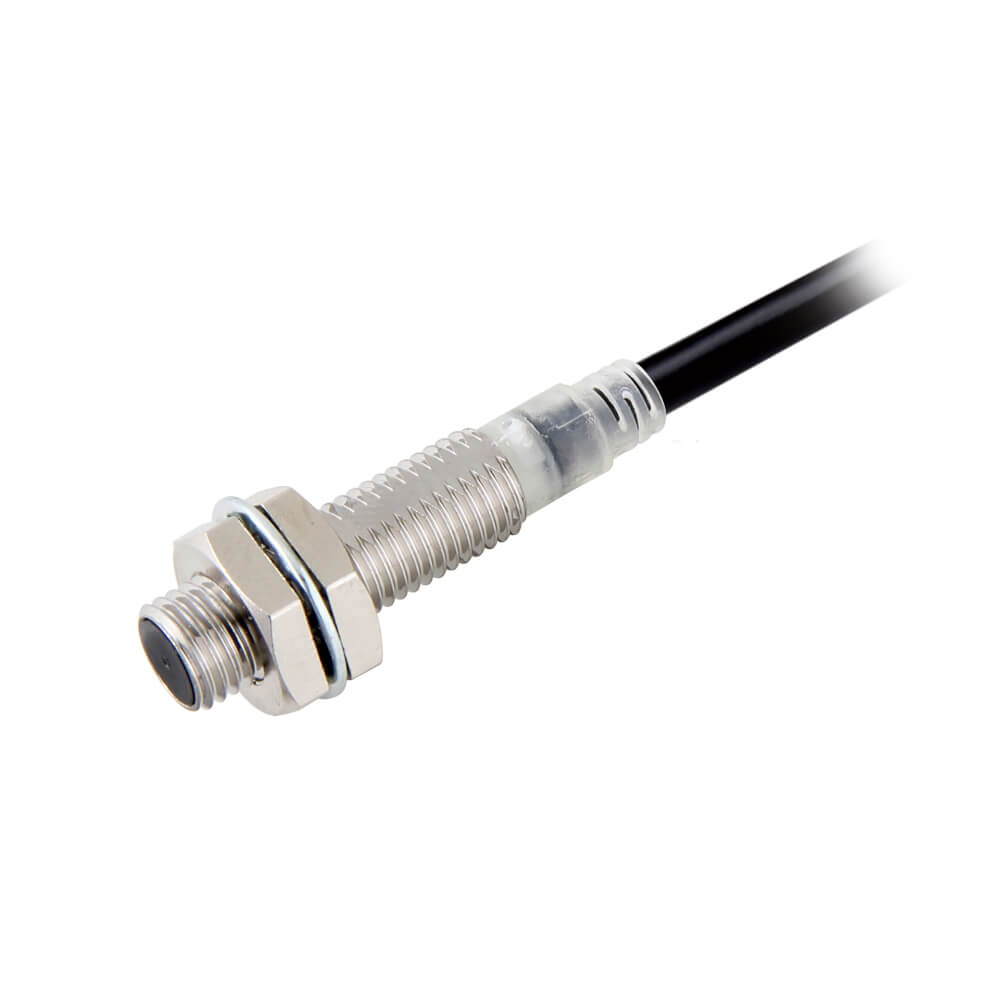

Omron E2E-X1R5D1-T-N 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M8 |
| Mounting Type | Flush Shielded |
| Sensing Distance | 1.5 mm |
| Output Type | DC 2-Wire |
| Operation Mode | Normally Open (NO) |
| Connection Method | Pre-wired Cable |
| Cable Length | 2 m |
| Cable Material | Oil-Resistant PVC |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 / IP67G / IP69K |
| Overall Length | 37.6 mm |
| Thread Length | 25.8 mm |
The Omron E2E-X1R5D1-T-N 2M Inductive Proximity Sensor is designed for reliable metallic object detection in industrial automation systems. Built with a compact M8 stainless-steel housing, this sensor supports installation in applications where space is limited while maintaining dependable sensing performance.
Technical Description
The Omron E2E-X1R5D1-T-N 2M Inductive Proximity Sensor operates with a 1.5 mm sensing distance and utilizes a DC 2-wire output configuration. The shielded design minimizes the influence of surrounding metal structures, making it suitable for dense machine layouts. Its oil-resistant PVC cable and high ingress protection ratings support operation in demanding industrial environments.
Working Principle
This inductive sensor generates a high-frequency electromagnetic field at its sensing face. When a conductive metal target enters the sensing range, eddy currents are induced within the target material. These currents alter the oscillation characteristics inside the sensor, triggering the output circuit and providing a switching signal to the connected control system.
The Omron E2E-X1R5D1-T-N 2M Inductive Proximity Sensor performs non-contact detection, reducing mechanical wear and enabling long-term operation in automated equipment.
Applications
- Position monitoring on assembly machines
- Metal part detection on conveyor systems
- Actuator position verification
- Machine tool automation
- Packaging equipment
- Material handling systems
- Automated sorting equipment
Industrial Applications
Manufacturing facilities frequently integrate inductive sensors into production lines where continuous position feedback is required. In metalworking operations, the sensor can verify fixture locations and component presence before machining cycles begin.
In packaging environments, it can monitor moving machine elements and confirm the correct positioning of metal guides and actuators. Automated warehouses also employ similar sensing devices for transfer mechanisms and shuttle systems.
Advantages
- Compact M8 form factor
- Non-contact sensing technology
- High resistance to dust and water ingress
- Stainless steel housing construction
- Suitable for oil-exposed environments
- Reduced maintenance requirements
- Reliable switching performance for automation systems
Industry-Specific Examples
Automotive Manufacturing
Used to verify the presence of metallic fixtures and tooling components throughout assembly operations.
Machine Building
Provides position feedback for moving machine elements and indexing mechanisms.
Food Processing Equipment
Supports machine monitoring applications where frequent washdown procedures occur.
Material Handling
Detects metallic carriers and positioning components within transfer stations.
Selection Considerations
When selecting an inductive sensor, engineers should verify sensing distance requirements, mounting configuration, output type, cable length, and environmental protection ratings. Installation spacing between adjacent sensors should also be considered to prevent mutual interference.
Additional information about Omron sensor products can help identify suitable alternatives for specific machine designs.
Frequently Asked Questions
What is the sensing distance of this sensor?
The sensor provides a rated sensing distance of 1.5 mm.
Is the output normally open or normally closed?
The sensor uses a normally open (NO) output configuration.
What type of housing does it use?
It features a stainless-steel M8 threaded housing.
Can it detect non-metallic objects?
No. Inductive sensors are designed specifically for metallic target detection.
What protection ratings are available?
The sensor is rated IP67, IP67G, and IP69K.
Is the cable suitable for industrial environments?
Yes. The integrated PVC cable is oil-resistant and intended for industrial use.
Where is the Omron E2E-X1R5D1-T-N 2M Inductive Proximity Sensor commonly used?
It is commonly installed in manufacturing equipment, packaging machinery, and material handling systems.
Does the Omron E2E-X1R5D1-T-N 2M Inductive Proximity Sensor require physical contact with the target?
No. Detection occurs through an electromagnetic field without mechanical contact.
