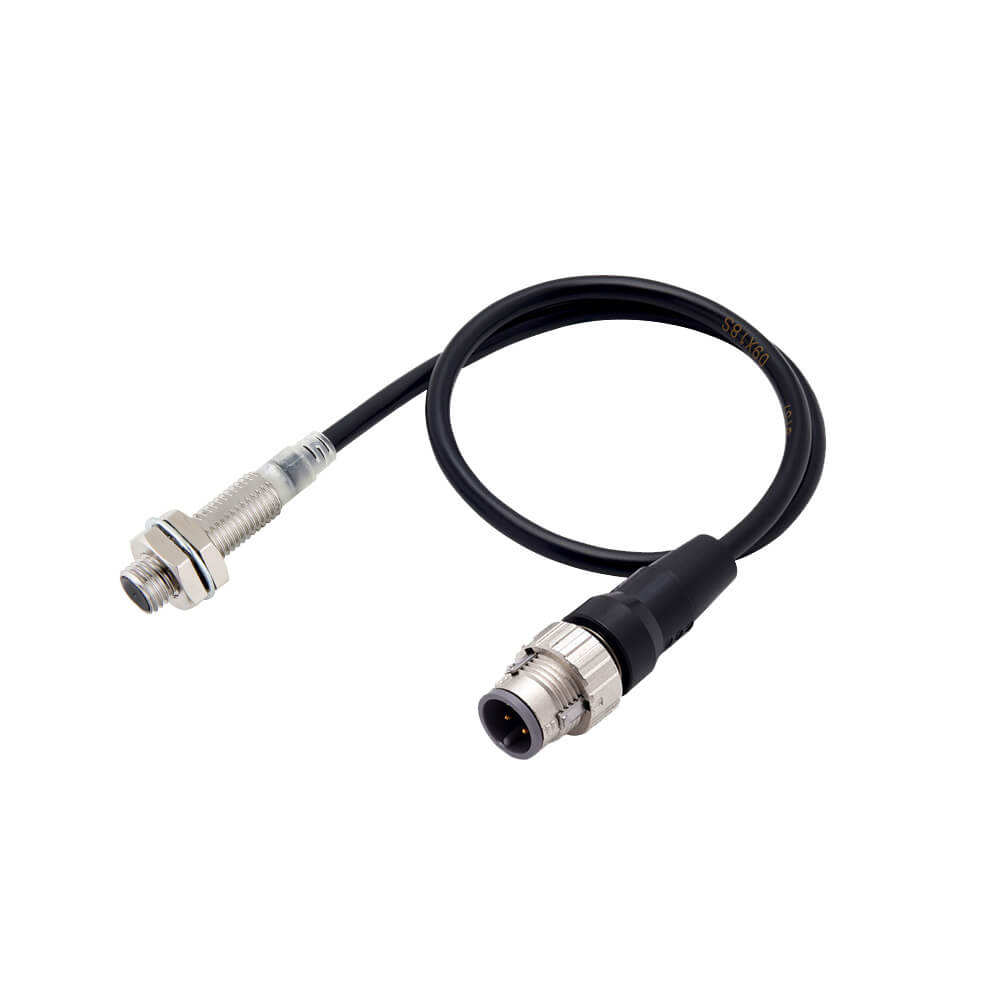

Omron E2E-X1R5D1-M1TGJ 0.3M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M8 Cylindrical |
| Mounting Type | Flush Shielded |
| Sensing Distance | 1.5 mm |
| Output Type | PNP Open Collector |
| Operation Mode | Normally Open (NO) |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 2000 Hz |
| Connection Type | M12 Connector with 0.3 m Cable |
| Housing Material | Stainless Steel (SUS303) |
| Protection Rating | IP67, IP67G, IP69K |
| Operating Temperature | -40°C to +85°C |
| Current Consumption | Max. 16 mA |
Technical Description
The Omron E2E-X1R5D1-M1TGJ 0.3M Inductive Proximity Sensor is a compact sensing device developed for reliable detection of metallic objects in industrial automation systems. Its M8 cylindrical housing supports installation in restricted mounting spaces while maintaining mechanical durability and resistance to challenging environmental conditions.
Featuring a PNP Normally Open output configuration, the sensor is suitable for automation platforms that require positive switching signals. The integrated M12 connector with a 0.3-meter cable simplifies installation and supports efficient maintenance procedures in modern production facilities.
Working Principle
The Omron E2E-X1R5D1-M1TGJ 0.3M Inductive Proximity Sensor generates a high-frequency electromagnetic field at the sensing face. When a conductive metal object enters the sensing range, eddy currents are induced within the target material.
These currents alter the characteristics of the oscillation circuit inside the sensor. The internal electronics continuously monitor these variations and activate the output when the predefined detection threshold is reached. This contactless operating principle enables reliable sensing without mechanical wear.
Applications
- Automated assembly equipment
- Industrial conveyor systems
- Robotic production cells
- Machine tool automation
- Material handling equipment
- Part presence verification stations
- Packaging machinery
- Position monitoring systems
Industrial Applications
In automated manufacturing lines, the sensor can verify the presence of metallic components before assembly operations begin. Packaging equipment often uses the sensor to monitor machine positions and synchronize moving mechanical assemblies.
The Omron E2E-X1R5D1-M1TGJ 0.3M Inductive Proximity Sensor is also suitable for robotic systems where compact dimensions and fast switching performance are required. The sensor’s high response frequency enables accurate detection during rapid machine movements.
Advantages
- Compact M8 housing for restricted installation spaces
- PNP Normally Open output configuration
- High 2000 Hz response frequency
- Contactless metal detection
- Stainless-steel housing construction
- Wide operating temperature range
- High environmental protection ratings
- Connector-based installation for easier maintenance
Sector-Specific Examples
Automotive Manufacturing
The sensor can verify metal bracket positioning before automated fastening or welding operations.
Packaging Industry
It can monitor indexing mechanisms and moving machine components throughout production cycles.
Industrial Robotics
The sensor supports metallic fixture detection and end-of-travel monitoring for robotic systems.
Machinery Manufacturing
Machine builders can integrate the sensor for actuator position confirmation and component presence verification.
Selection Considerations
- Verify compatibility with PNP input circuits.
- Ensure the 1.5 mm sensing distance meets application requirements.
- Confirm that metallic targets are suitable for inductive detection.
- Review available installation space.
- Evaluate environmental conditions and protection requirements.
- Consider connector and cable routing requirements.
Additional industrial sensing technologies can be explored through Omron sensor products.
Frequently Asked Questions
What type of sensor is this product?
It is an inductive proximity sensor designed for non-contact detection of metallic objects.
What is the rated sensing distance?
The rated sensing distance is 1.5 mm.
Which output configuration does the sensor provide?
The sensor provides a PNP open-collector Normally Open output.
What supply voltage is required?
It operates with a supply voltage range of 10 to 30 VDC.
Can it be used in harsh industrial environments?
Yes. The sensor features IP67, IP67G, and IP69K protection ratings for demanding industrial conditions.
What materials can the sensor detect?
The sensor is intended for detecting conductive metallic targets.
Where is the Omron E2E-X1R5D1-M1TGJ 0.3M Inductive Proximity Sensor commonly used?
It is commonly used in robotics, packaging systems, machine tools, conveyors, and automated manufacturing equipment.
How does the Omron E2E-X1R5D1-M1TGJ 0.3M Inductive Proximity Sensor work?
It detects metal objects by monitoring changes in an electromagnetic field generated at the sensing surface.
Why is a connector-based design beneficial?
The M12 connector arrangement simplifies installation, replacement, and maintenance procedures.
