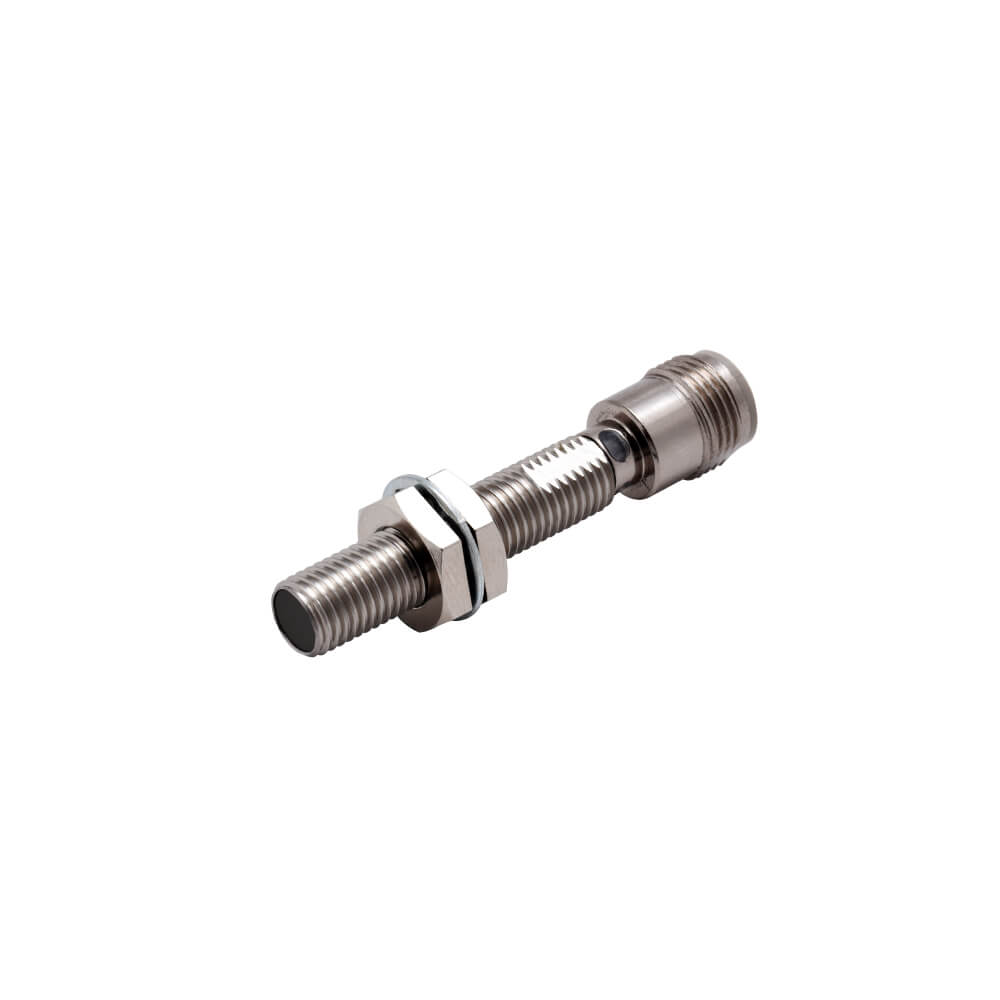

Omron E2E-X1R5B1TL8-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M8 Threaded |
| Mounting Type | Flush Shielded |
| Sensing Distance | 1.5 mm |
| Output Type | PNP NO with IO-Link |
| Communication | IO-Link COM3 (230.4 kbps) |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | M12 Connector |
| Housing Material | Stainless Steel |
| Overall Length | 53 mm |
| Thread Length | 36 mm |
| Protection Rating | IP67 / IP69K |
The Omron E2E-X1R5B1TL8-M1 Inductive Proximity Sensor is designed for reliable metal object detection in industrial automation systems where compact dimensions and digital communication capabilities are required. As part of the E2E NEXT family, this sensor combines traditional proximity sensing functionality with IO-Link communication, enabling enhanced diagnostics and parameter management.
Technical Overview
The Omron E2E-X1R5B1TL8-M1 Inductive Proximity Sensor features an M8 stainless-steel housing with a flush-mounted sensing face. The sensor provides a sensing distance of 1.5 mm and supports PNP normally open switching logic. Integration of IO-Link COM3 communication allows process data exchange and device monitoring within modern automation architectures.
The stainless-steel body contributes to mechanical durability, while the IP67 and IP69K protection ratings support installation in environments exposed to moisture, dust, washdown procedures, and industrial contaminants.
Working Principle
The sensor operates using an electromagnetic field generated at the sensing face. When a ferrous metal target enters the sensing range, the magnetic field is altered. This change is detected by the internal circuitry, causing the output state to switch.
In addition to conventional switching functionality, the Omron E2E-X1R5B1TL8-M1 Inductive Proximity Sensor can transmit operational information through IO-Link communication. This enables access to sensor status, diagnostics, and configuration parameters without requiring additional hardware.
Typical Areas of Use
- Automated assembly equipment
- Machine tool systems
- Packaging machinery
- Material transfer equipment
- Automated production cells
- Robotic positioning systems
- Metal component detection applications
Industrial Applications
Manufacturing facilities frequently use the Omron E2E-X1R5B1TL8-M1 Inductive Proximity Sensor for position verification of metallic workpieces. The compact M8 design allows installation in confined mechanical assemblies where larger sensors cannot be accommodated.
In robotic workstations, the sensor can confirm the presence of metal fixtures before automated operations begin. In conveyor-based manufacturing systems, it can monitor the movement of metallic carriers and tooling components.
Food processing and pharmaceutical facilities may also utilize this sensor in areas requiring high environmental protection due to its IP69K-rated construction.
Advantages
- Compact M8 threaded housing
- IO-Link COM3 communication capability
- PNP normally open output configuration
- Stainless-steel mechanical construction
- Flush mounting capability
- IP67 and IP69K environmental protection
- Suitable for modern Industry 4.0 architectures
Sector-Specific Examples
Automotive Manufacturing
The Omron E2E-X1R5B1TL8-M1 Inductive Proximity Sensor can detect metallic fixtures and positioning elements used during automated assembly operations.
Packaging Industry
The sensor may be integrated into packaging equipment for metal component verification and machine sequence control.
Machine Building
Equipment manufacturers can use the sensor to monitor actuator positions, guide mechanisms, and moving machine components.
Material Handling Systems
Automated transport lines can utilize the Omron E2E-X1R5B1TL8-M1 Inductive Proximity Sensor to detect metallic carriers and positioning stops.
Selection Considerations
- Verify that the target material is metallic.
- Confirm the required sensing distance fits within the 1.5 mm range.
- Check compatibility with PNP input circuits.
- Evaluate whether IO-Link integration is required.
- Ensure adequate mounting clearance around the sensing face.
- Consider environmental protection requirements.
Additional Omron Sensor Resources
Engineers seeking broader sensing technologies can review Omron sensor products for additional proximity sensing and automation solutions.
Frequently Asked Questions
What type of sensor is the Omron E2E-X1R5B1TL8-M1 Inductive Proximity Sensor?
It is a shielded inductive proximity sensor designed for metal object detection.
What is the sensing distance?
The rated sensing distance is 1.5 mm.
Does the sensor support IO-Link communication?
Yes. It supports IO-Link COM3 communication at 230.4 kbps.
What output configuration is provided?
The sensor uses a PNP normally open output.
What housing size is used?
The device features an M8 threaded cylindrical housing.
Can it be installed in washdown environments?
Its IP67 and IP69K ratings make it suitable for demanding industrial environments.
What connection method is used?
The sensor utilizes an M12 connector interface.
Where is this sensor commonly used?
It is commonly installed in automation machinery, assembly equipment, robotic systems, and material handling applications.
