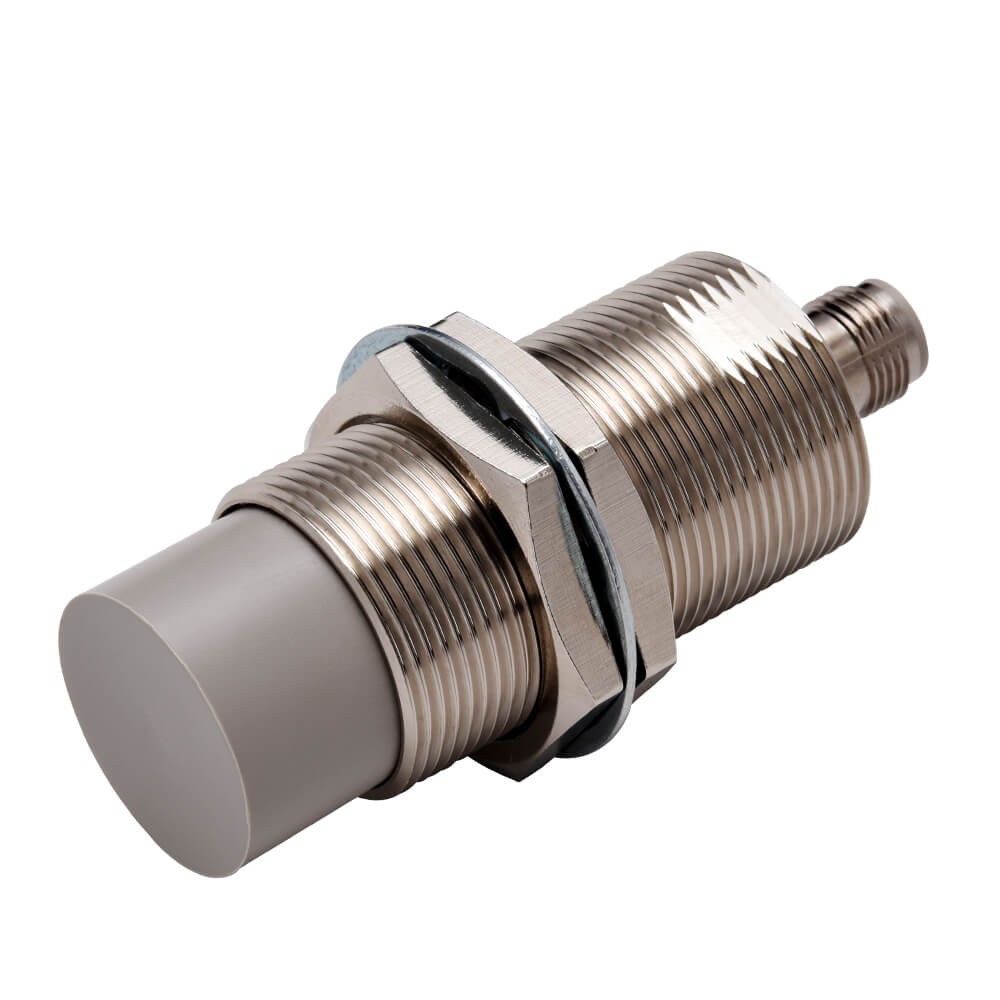

Omron E2E-X18MC2L30-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M30 |
| Mounting Type | Unshielded (Non-flush) |
| Sensing Distance | 18 mm |
| Output Type | NPN NC, 3-wire |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | M12 Connector |
| Housing Material | Nickel-plated Brass |
| Response Frequency | 100 Hz |
| Protection Rating | IP67, IP69K |
| Operating Temperature | -40°C to +85°C |
The Omron E2E-X18MC2L30-M1 Inductive Proximity Sensor is designed for reliable detection of metallic objects in industrial automation systems. Featuring an M30 threaded housing and an 18 mm sensing distance, this sensor supports stable object detection in demanding production environments where contactless sensing is required.
Technical Description
The Omron E2E-X18MC2L30-M1 Inductive Proximity Sensor belongs to the E2E NEXT series. It utilizes electromagnetic field generation to detect the presence of ferrous and conductive metallic targets without physical contact. The sensor incorporates a nickel-plated brass housing, providing mechanical durability and resistance to industrial contaminants.
The sensor offers a normally closed NPN output configuration and operates from a 10 to 30 VDC power supply. An M12 connector simplifies integration into control cabinets, machine assemblies, and distributed I/O systems.
Working Principle
The sensing face generates a high-frequency electromagnetic field. When a metallic target enters the sensing zone, eddy currents are induced within the object. These currents alter the oscillation characteristics of the sensor circuit, allowing the device to detect the target and switch its output accordingly.
This contactless operating principle minimizes mechanical wear while supporting long-term operation in repetitive industrial processes.
Key Advantages
- 18 mm sensing distance for larger target detection ranges
- Robust nickel-plated brass construction
- NPN normally closed output configuration
- M12 connector for simplified installation
- IP67 and IP69K environmental protection
- Operation across a wide temperature range
- Suitable for harsh manufacturing environments
Application Areas
The Omron E2E-X18MC2L30-M1 Inductive Proximity Sensor can be integrated into numerous industrial processes where metal detection is required.
- Conveyor position monitoring
- Material transfer systems
- Automated assembly stations
- Packaging equipment
- Machine tool position sensing
- Metal component verification
- Production line automation
Industrial Applications
Automotive Manufacturing
The sensor can monitor metal fixtures, body panels, and mechanical positioning elements during automated assembly operations.
Packaging Systems
It supports position verification of machine components and metallic mechanisms in packaging lines.
Metal Processing Facilities
The device can be used for detecting metal workpieces moving through machining and fabrication processes.
Material Handling Equipment
Industrial transport systems often use the Omron E2E-X18MC2L30-M1 Inductive Proximity Sensor for position confirmation and process synchronization.
Sector-Specific Usage Examples
- Monitoring pallet positioning in logistics centers
- Detecting metal carriers on assembly conveyors
- Machine interlock verification in fabrication workshops
- Position sensing in automated storage systems
- Detecting metallic machine elements in robotic cells
Selection Considerations
When selecting an inductive sensor, engineers should evaluate target material, required sensing distance, mounting conditions, environmental exposure, output configuration, and control system compatibility.
The Omron E2E-X18MC2L30-M1 Inductive Proximity Sensor is particularly suitable for applications requiring an M30 sensor body, long sensing range, and robust environmental protection.
Additional information about Omron sensor products can be useful when comparing sensing technologies and installation options.
Frequently Asked Questions
What type of sensor is the Omron E2E-X18MC2L30-M1?
It is an inductive proximity sensor designed to detect metallic objects without physical contact.
What is the sensing distance?
The rated sensing distance is 18 mm.
What output configuration does it use?
The sensor provides a 3-wire NPN normally closed output.
What voltage range is supported?
The operating supply voltage is 10 to 30 VDC.
Is the sensor suitable for washdown environments?
Its IP67 and IP69K ratings provide protection against dust and high-pressure water exposure.
What connection method is used?
The sensor is equipped with an M12 connector.
Can it detect non-metallic materials?
No. Inductive sensing technology is intended for metallic target detection.
Where is the Omron E2E-X18MC2L30-M1 Inductive Proximity Sensor commonly used?
It is commonly installed in automation systems, material handling equipment, manufacturing machinery, and assembly lines.
