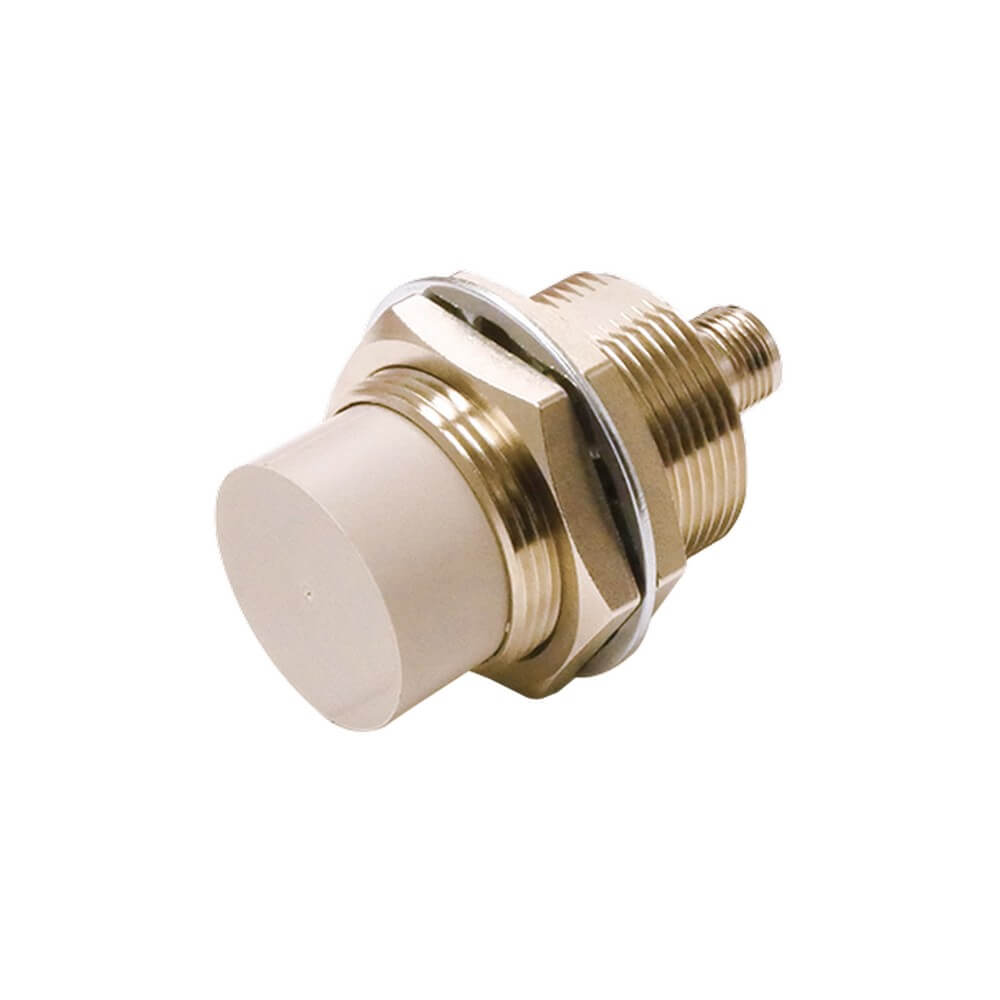

Omron E2E-X18MC230-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Diameter | M30 |
| Mounting Style | Non-flush |
| Sensing Distance | 18 mm |
| Output Type | 2-wire AC |
| Output Function | Normally Open |
| Supply Voltage | 20 to 264 VAC |
| Connection Type | M12 Connector |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Overall Length | 80 mm |
| Threaded Body | Cylindrical M30 |
| Detection Principle | Electromagnetic Induction |
Modern industrial equipment relies on accurate and repeatable object detection to maintain process consistency. The Omron E2E-X18MC230-M1 Inductive Proximity Sensor is designed to detect metallic targets without physical contact, supporting reliable automation processes in manufacturing, material handling, and machinery applications.
Technical Description
The Omron E2E-X18MC230-M1 Inductive Proximity Sensor is a cylindrical M30 inductive sensor featuring an 18 mm sensing distance and a 2-wire AC output design. As part of the E2E NEXT series, it is intended for industrial environments where durability, stable switching performance, and simplified installation are important considerations.
The sensor incorporates an M12 connector interface, enabling faster installation and easier replacement during maintenance activities. Its nickel-plated brass housing provides mechanical protection while supporting long-term operation in demanding environments.
Operating Principle
The sensing element continuously generates a high-frequency electromagnetic field. When a conductive metal object enters the detection zone, eddy currents are induced within the target. These currents affect the oscillation characteristics of the sensor, allowing the internal electronics to recognize the object’s presence and change the output state.
This operating method enables non-contact detection, eliminating mechanical wear associated with traditional limit switches and helping maintain consistent sensing performance over time.
Common Areas of Use
- Automated production equipment
- Material transport systems
- Industrial conveyors
- Machine tools
- Packaging machinery
- Metal processing equipment
- Assembly automation stations
- Industrial safety interlock systems
Industrial Applications
In manufacturing plants, the sensor can be used to monitor the position of metallic fixtures and machine components. Conveyor systems often utilize inductive sensors to confirm carrier presence and support process synchronization.
Machine builders may integrate the sensor into automated equipment where metallic actuators, stops, or transfer mechanisms require dependable position verification. Industrial handling systems can also employ the sensor to monitor moving structural components and equipment positioning.
Advantages
- 18 mm sensing distance
- Convenient M12 connector connection
- Reliable metal object detection
- Suitable for AC-powered control systems
- Robust brass housing construction
- IP67 environmental protection
- Reduced maintenance requirements
- Non-contact operating principle
Sector-Specific Usage Examples
Machinery Manufacturing
The sensor can be installed to verify the position of moving machine assemblies during automated production cycles.
Packaging Facilities
Metal guide components and actuator mechanisms can be monitored to support sequence control.
Automated Warehousing
The sensor may be used to detect transport carts, lifting structures, and steel positioning elements.
Metalworking Operations
Production equipment can utilize the sensor to detect workpiece holders and fixture positioning systems.
Factors to Consider During Product Selection
- Verify compatibility with AC-powered control circuits.
- Ensure adequate mounting clearance for non-flush installation.
- Confirm that the target material is metallic.
- Evaluate connector compatibility with existing cabling systems.
- Review environmental conditions and protection requirements.
Additional industrial sensing technologies can be explored through Omron sensor products.
The Omron E2E-X18MC230-M1 Inductive Proximity Sensor is commonly integrated into industrial machinery requiring dependable metal detection. Engineers frequently deploy the Omron E2E-X18MC230-M1 Inductive Proximity Sensor in applications where connector-based installation simplifies maintenance procedures.
Frequently Asked Questions
What type of objects can this sensor detect?
The sensor is designed for detecting metallic targets using inductive sensing technology.
What is the nominal sensing distance?
The sensing distance is 18 mm.
What power supply range does it support?
The sensor operates from 20 to 264 VAC.
What connection method is used?
An M12 connector is provided for electrical connection.
Can it operate in dusty industrial environments?
Yes, the IP67 protection rating helps protect against dust and water ingress.
Is the sensor suitable for automated machinery?
Yes, it is commonly used in automation, material handling, and industrial processing systems.
Does the sensor require contact with the target?
No. Detection occurs through an electromagnetic field without physical contact.
What mounting style is required?
This model is intended for non-flush mounting applications.
