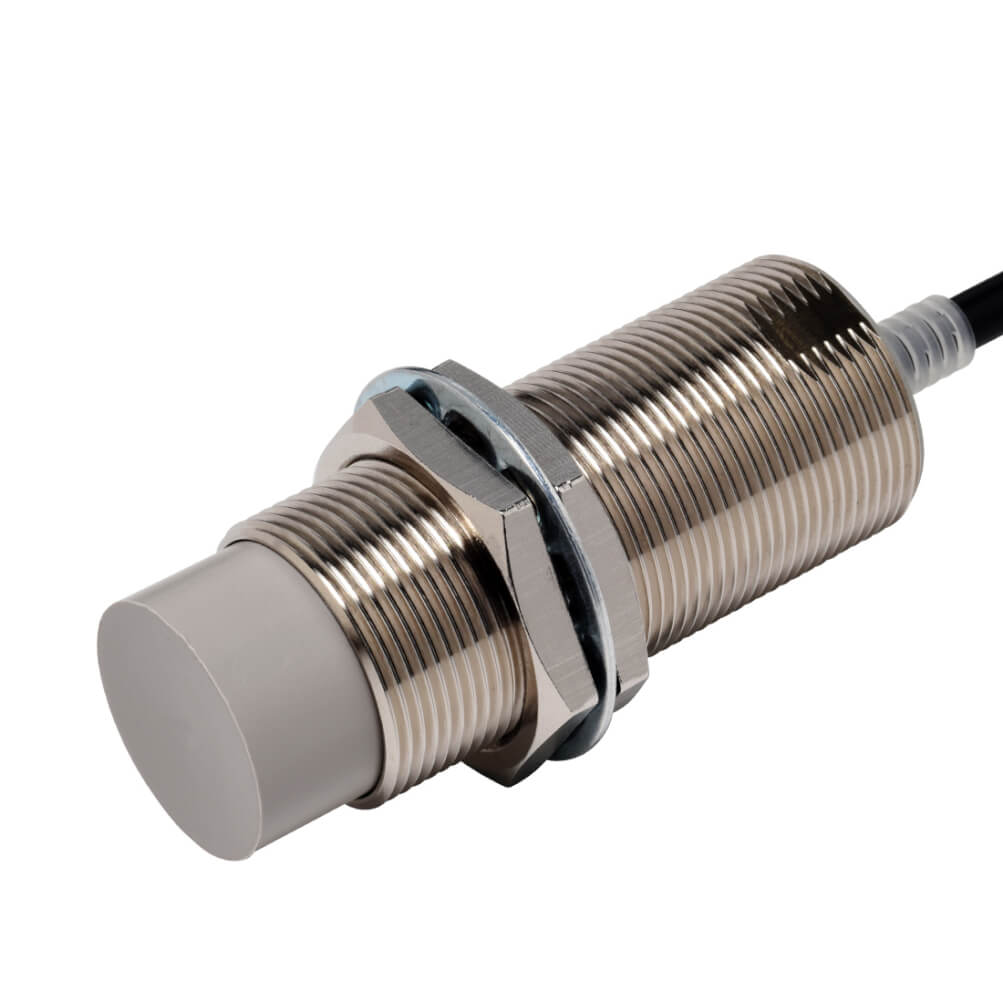

Omron E2E-X18MC1L30 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Sensing Distance | 18 mm |
| Housing Diameter | M30 |
| Mounting Style | Non-flush (Unshielded) |
| Output Type | PNP Normally Open (NO) |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | 2 m Pre-wired Cable |
| Housing Material | Nickel-Plated Brass |
| Response Frequency | 100 Hz |
| Operating Temperature | -40°C to 85°C |
| Protection Rating | IP67, IP69K |
| Cable Length | 2 m |
Industrial automation systems frequently require reliable position sensing solutions capable of operating under challenging environmental conditions. The Omron E2E-X18MC1L30 2M Inductive Proximity Sensor is designed for non-contact metallic object detection and provides dependable switching performance in production environments where durability and stable sensing are essential.
Technical Description
The Omron E2E-X18MC1L30 2M Inductive Proximity Sensor is part of the E2E NEXT product family and features an M30 cylindrical housing with an extended sensing distance of 18 mm. The sensor incorporates a PNP normally open output configuration and is supplied with an integrated 2-meter cable for direct connection to industrial control systems.
The nickel-plated brass housing supports installation in machinery exposed to vibration, moisture, dust, lubricants, and other common industrial contaminants. The sensor is engineered for continuous operation in automated equipment and material handling systems.
The Omron E2E-X18MC1L30 2M Inductive Proximity Sensor is commonly integrated into PLC-controlled systems where reliable metal detection is required without mechanical contact.
Working Principle
The sensing face continuously emits a high-frequency electromagnetic field. When a conductive metallic object enters the detection zone, eddy currents are induced within the target material. These currents alter the characteristics of the oscillator circuit, enabling the sensor electronics to detect object presence and activate the output.
Because the detection process occurs without physical contact, wear-related issues associated with mechanical limit switches are minimized. This operating principle helps maintain stable performance over extended service periods.
Applications
- Automated assembly equipment
- Material transport systems
- Machine position monitoring
- Conveyor control systems
- Industrial transfer mechanisms
- Packaging machinery
- Automated production cells
- Part presence verification
In manufacturing environments, the Omron E2E-X18MC1L30 2M Inductive Proximity Sensor can be used to confirm workpiece positions before machining, assembly, or robotic handling operations begin.
Industrial Applications
Electronics Manufacturing
Automated production equipment can use inductive sensing to verify metallic fixture positions and carrier locations during assembly operations.
Automotive Assembly
The sensor can monitor metal body components, assembly fixtures, and transfer systems throughout vehicle production processes.
Material Handling Facilities
Warehouse automation equipment uses proximity sensors to detect pallets, carriers, and transport mechanisms.
Industrial Machinery
The Omron E2E-X18MC1L30 2M Inductive Proximity Sensor can be integrated into machine tools, indexing systems, and automated production equipment for position monitoring.
For additional sensing technologies and automation components, engineers may review Omron sensor solutions used across industrial applications.
Advantages
- 18 mm sensing distance
- PNP normally open output configuration
- Integrated 2-meter cable connection
- Non-contact operation
- IP67 and IP69K environmental protection
- Wide operating temperature range
- Robust nickel-plated brass housing
- Suitable for demanding industrial environments
Sector-Specific Use Cases
- Monitoring pallet movement in logistics systems
- Detecting metallic fixtures in assembly equipment
- Confirming transfer mechanism positions
- Tracking machine indexing points
- Monitoring automated conveyor stations
- Detecting metallic carriers in production lines
Considerations When Selecting This Sensor
When specifying the Omron E2E-X18MC1L30 2M Inductive Proximity Sensor, engineers should evaluate target material characteristics, required sensing distance, PLC input compatibility, and available installation space.
The PNP output configuration should match the control system input requirements. Additionally, adequate spacing from nearby metallic structures should be maintained because the sensor uses a non-flush sensing design.
Frequently Asked Questions
1. What output configuration does this model use?
The sensor provides a PNP normally open output.
2. What is the rated sensing distance?
The sensing distance is 18 mm.
3. What supply voltage is required?
The operating voltage range is 10 to 30 VDC.
4. Is the Omron E2E-X18MC1L30 2M Inductive Proximity Sensor suitable for washdown environments?
It carries IP67 and IP69K protection ratings that support operation in demanding industrial environments.
5. What cable length is included?
The sensor is supplied with a 2-meter integrated cable.
6. What materials can be detected?
The sensor is designed to detect metallic targets through inductive sensing technology.
7. Where is the Omron E2E-X18MC1L30 2M Inductive Proximity Sensor commonly used?
It is commonly used in machinery, conveyors, automated production systems, and material handling equipment.
8. What housing material is used?
The housing is manufactured from nickel-plated brass.
9. What temperature range is supported?
The operating temperature range is -40°C to 85°C.
10. Why is a PNP output selected?
PNP outputs are commonly used in control architectures that require sourcing output signals to PLC input circuits.
