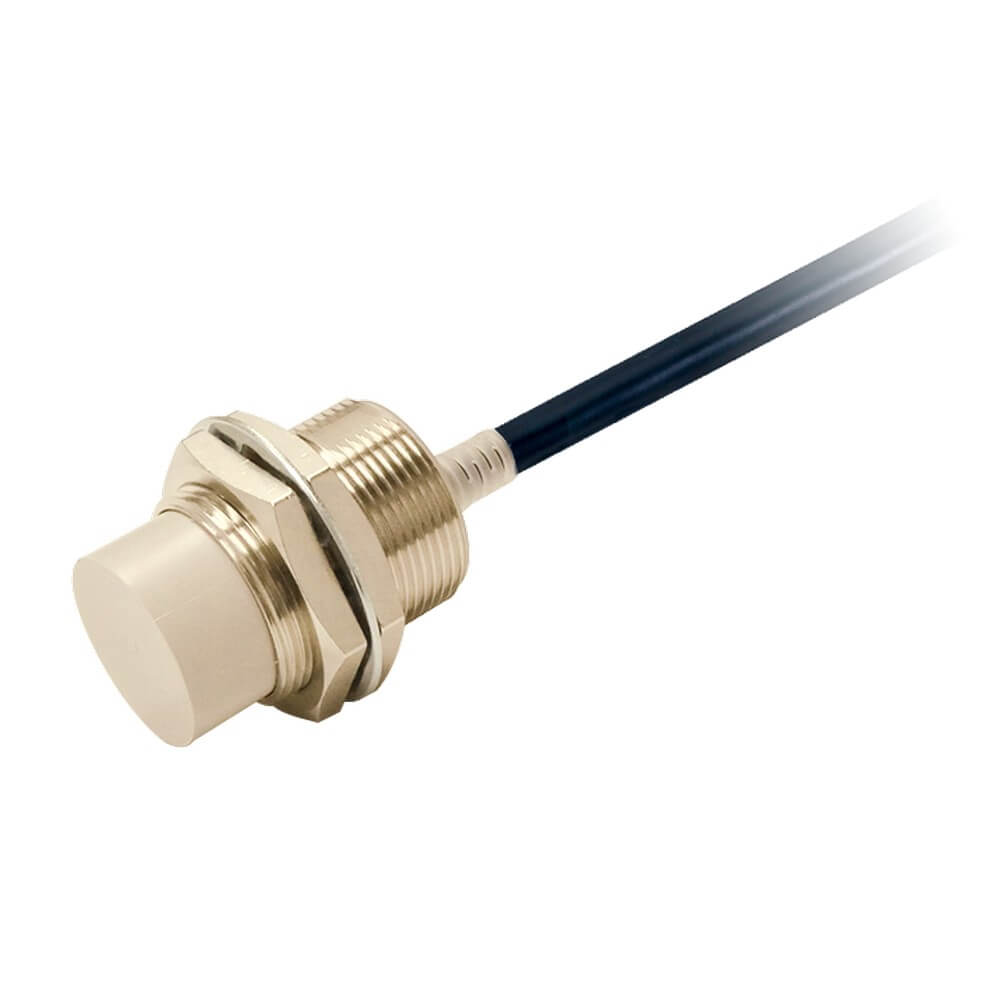

Omron E2E-X18MB1T30 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Sensing Distance | 18 mm |
| Housing Size | M30 |
| Mounting Type | Non-Flush |
| Output Type | PNP NO with IO-Link |
| Connection Method | 2 m PVC Oil-Resistant Cable |
| Supply Voltage | 10 to 30 VDC |
| IO-Link Baud Rate | COM3 (230.4 kbps) |
| Housing Material | Nickel-Plated Brass |
| Operating Temperature | -40°C to +85°C |
| Protection Rating | IP67 / IP67G / IP69K |
| Response Frequency | 100 Hz |
| Overall Length | 60.3 mm |
Technical Overview
The Omron E2E-X18MB1T30 2M Inductive Proximity Sensor is designed for reliable metal target detection in industrial automation systems. As part of the E2E NEXT family, this sensor combines inductive sensing technology with IO-Link communication capabilities, enabling both switching functions and diagnostic data exchange within modern control architectures.
Its M30 threaded housing and non-flush installation design provide an extended sensing distance of 18 mm, making it suitable for applications where greater detection range is required. The nickel-plated brass body offers mechanical durability, while the oil-resistant cable supports installation in demanding industrial environments.
Operating Principle
The Omron E2E-X18MB1T30 2M Inductive Proximity Sensor operates by generating a high-frequency electromagnetic field at the sensing face. When a metallic object enters this field, eddy currents are induced in the target material. These currents alter the oscillation characteristics within the sensor circuit.
Once the predefined threshold is reached, the sensor switches its PNP normally open output. Through its integrated IO-Link interface, additional operational data can also be transmitted to compatible controllers, allowing enhanced monitoring and parameter management.
Key Technical Characteristics
- 18 mm sensing distance for ferrous metal targets
- M30 cylindrical threaded housing
- PNP normally open switching output
- Integrated IO-Link COM3 communication
- 10 to 30 VDC operating voltage
- IP67, IP67G, and IP69K protection ratings
- Operating temperature range from -40°C to +85°C
- Oil-resistant PVC cable construction
- Nickel-plated brass housing for industrial durability
Applications
The Omron E2E-X18MB1T30 2M Inductive Proximity Sensor is commonly implemented in automated machinery where contactless metal detection is required. Its long sensing range allows greater installation flexibility compared to shorter-range proximity sensors.
- Conveyor position monitoring
- Automated assembly systems
- Metal component verification
- Packaging machinery
- Material transfer equipment
- Industrial robotics
- Production line indexing systems
- Machine tool automation
Industrial Applications
In automotive manufacturing facilities, the sensor can detect metallic carriers and positioning elements throughout assembly processes. In packaging operations, it is frequently used for detecting machine components and verifying actuator positions.
Metalworking facilities utilize the Omron E2E-X18MB1T30 2M Inductive Proximity Sensor to monitor fixture locations and moving mechanical elements. Its IP69K protection rating also supports installations in environments exposed to washdown procedures and contamination.
Advantages
- Extended sensing distance for improved installation flexibility
- Integrated IO-Link functionality for diagnostic capabilities
- High resistance to dust, moisture, and washdown conditions
- Wide operating temperature range
- Durable nickel-plated brass construction
- Reliable detection without physical contact
- Suitable for Industry 4.0 communication architectures
Sector-Specific Use Examples
Automotive Production
Used for detecting fixture positions, transfer pallets, and assembly station components.
Food Processing Equipment
Applied in machinery requiring frequent cleaning where IP69K protection is beneficial.
Packaging Lines
Supports carton handling systems and machine position verification functions.
Material Handling Systems
Detects metallic carriers and transport mechanisms across conveyor networks.
Selection Considerations
When selecting an inductive proximity sensor, engineers should evaluate sensing distance requirements, installation constraints, environmental conditions, and communication needs. For applications requiring process diagnostics and parameterization, IO-Link compatibility may be a significant consideration.
The non-flush mounting configuration of the Omron E2E-X18MB1T30 2M Inductive Proximity Sensor should also be considered during mechanical design to maintain specified sensing performance.
For additional product families and sensing technologies, explore Omron sensor product ranges.
Frequently Asked Questions
What type of sensor is the Omron E2E-X18MB1T30 2M Inductive Proximity Sensor?
It is an inductive proximity sensor designed for non-contact detection of metallic objects.
What is the sensing distance?
The specified sensing distance is 18 mm for standard ferrous targets.
Does the sensor support IO-Link communication?
Yes. It includes IO-Link COM3 communication functionality with a baud rate of 230.4 kbps.
What output configuration does it use?
The sensor provides a PNP normally open switching output.
What protection ratings are available?
The device is rated IP67, IP67G, and IP69K.
Can it operate in harsh industrial environments?
Yes. The housing material and environmental protection ratings support use in demanding industrial conditions.
What is the operating temperature range?
The sensor operates between -40°C and +85°C.
Where is the Omron E2E-X18MB1T30 2M Inductive Proximity Sensor commonly used?
It is widely used in manufacturing systems, packaging equipment, material handling machinery, and automated production lines where reliable metal detection is required.
