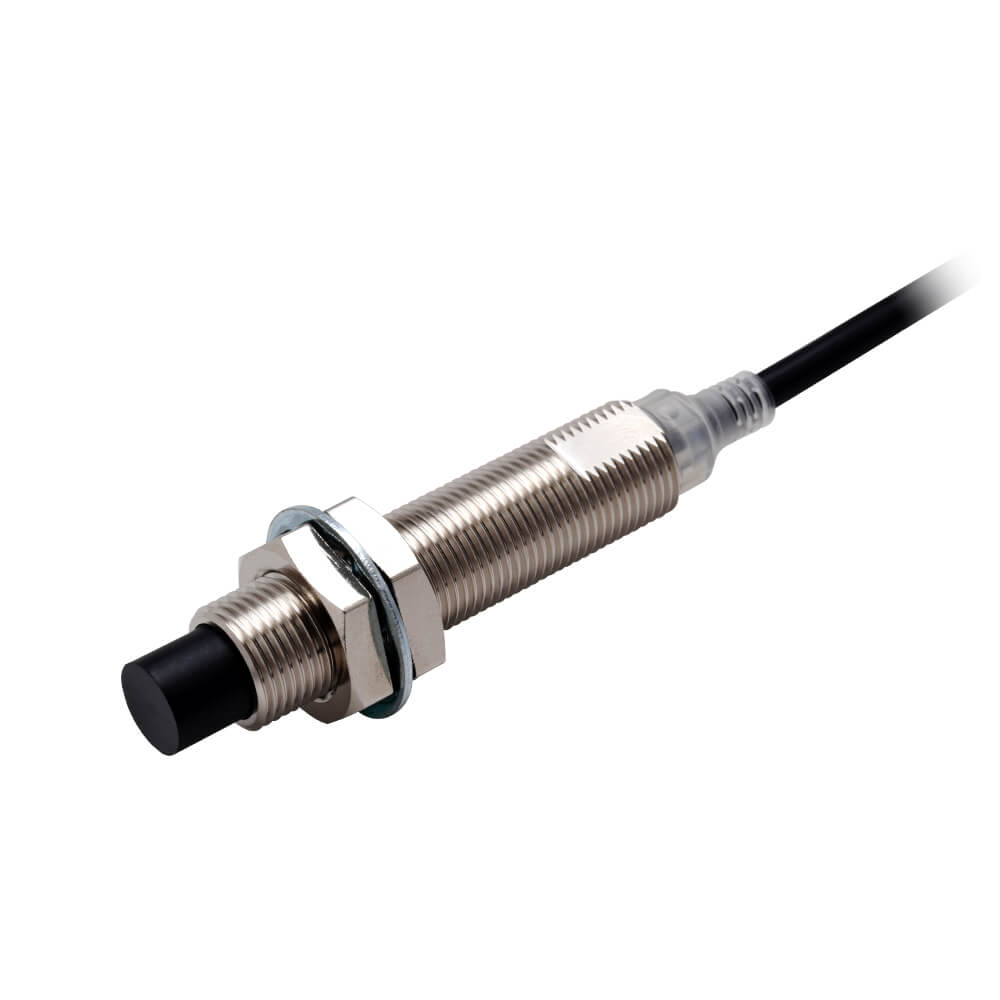

Omron E2E-X16MC1L12 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M12 |
| Mounting Type | Non-flush |
| Sensing Distance | 16 mm |
| Output Type | NPN |
| Operation Mode | Normally Open (NO) |
| Cable Length | 2 m |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 400 Hz |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP69K |
| Operating Temperature | -25°C to +70°C |
| Connection Type | Pre-wired Cable |
Reliable object detection is essential for maintaining process consistency in industrial automation systems. The Omron E2E-X16MC1L12 2M Inductive Proximity Sensor is engineered to detect metallic targets without physical contact, providing dependable switching performance in production environments where durability and repeatability are important operational requirements.
Technical Description
The Omron E2E-X16MC1L12 2M Inductive Proximity Sensor is a member of the E2E NEXT series, designed for industrial sensing applications requiring extended detection capability in a compact cylindrical housing. The sensor offers a 16 mm sensing distance and utilizes an NPN normally open output configuration suitable for a wide range of automation systems.
Its M12 threaded housing allows installation in space-constrained machinery while maintaining a longer sensing range than conventional sensors of similar dimensions. The integrated 2-meter cable simplifies wiring and supports direct connection to industrial control equipment.
Operating Principle
The sensor creates an electromagnetic field in front of its sensing surface. When a conductive metallic object enters the detection zone, eddy currents are generated within the target material. These currents influence the sensor’s oscillator circuit, enabling the internal electronics to identify the target and activate the output.
The Omron E2E-X16MC1L12 2M Inductive Proximity Sensor performs this process without contact, helping reduce mechanical wear and ensuring stable long-term operation in automated systems.
Applications and Usage Areas
- Automated assembly equipment
- Conveyor positioning systems
- Metal component detection
- Industrial transfer mechanisms
- Packaging machinery
- Automated manufacturing cells
- Machine tool monitoring
- Production line sequencing systems
The Omron E2E-X16MC1L12 2M Inductive Proximity Sensor is often used in installations where compact dimensions and reliable metal detection are required simultaneously.
Industrial Applications
Electronics Manufacturing
Supports automated equipment by monitoring metallic carriers, tooling fixtures, and positioning devices used in assembly processes.
Automotive Production
Used to verify component positioning and detect metallic parts throughout automated manufacturing operations.
Packaging Automation
Provides position feedback for indexing mechanisms and transport systems handling packaged goods.
Industrial Machinery
Integrated into machine control systems for position verification, travel monitoring, and process synchronization.
Advantages
- 16 mm sensing distance in a compact M12 housing
- NPN normally open output configuration
- Non-contact metal detection technology
- Integrated 2-meter cable connection
- IP67 and IP69K environmental protection
- Durable nickel-plated brass construction
- Reliable operation across a wide temperature range
- Suitable for demanding automation environments
Factors to Consider During Product Selection
- Verify compatibility with NPN control inputs.
- Ensure adequate clearance for non-flush mounting.
- Confirm metallic target suitability.
- Evaluate required sensing distance.
- Review environmental exposure conditions.
- Consider cable routing and installation requirements.
Additional sensing technologies and related product families are available through Omron sensor solutions.
Frequently Asked Questions
What type of object can this sensor detect?
The sensor is designed to detect conductive metallic objects.
What is the sensing distance of this model?
The rated sensing distance is 16 mm.
Which output type does it provide?
The sensor uses an NPN normally open output configuration.
What is the cable length?
This model includes a factory-installed 2-meter cable.
Can the sensor detect non-metallic materials?
No. Inductive sensing technology is intended for metallic targets.
Is the Omron E2E-X16MC1L12 2M Inductive Proximity Sensor suitable for industrial environments?
Yes. The IP67 and IP69K protection ratings support operation in demanding industrial conditions.
What industries commonly use this sensor?
Automotive, electronics manufacturing, packaging, logistics, and machine-building industries commonly use this model.
What is the operating temperature range?
The sensor operates from -25°C to +70°C.
Why is non-contact sensing beneficial?
It reduces mechanical wear and helps maintain consistent detection performance over time.
Where is the Omron E2E-X16MC1L12 2M Inductive Proximity Sensor typically installed?
It is commonly installed in automated machinery, conveyors, production equipment, and machine control systems requiring reliable metal detection.
