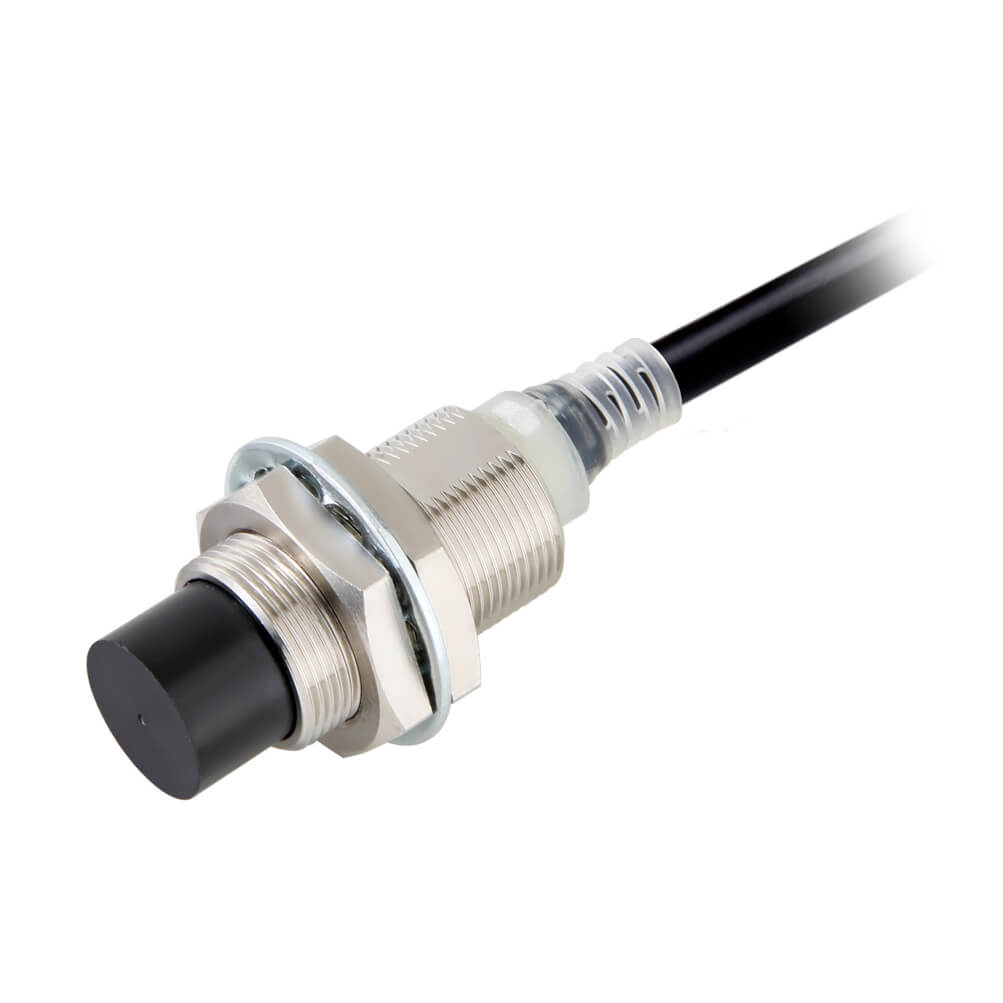

Omron E2E-X16MC118 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M18 |
| Mounting Type | Non-flush |
| Sensing Distance | 16 mm |
| Output Type | NPN |
| Operation Mode | Normally Open (NO) |
| Cable Length | 2 m |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 400 Hz |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP69K |
| Operating Temperature | -25°C to +70°C |
| Connection Type | Pre-wired Cable |
Accurate metal object detection is a fundamental requirement in modern automation systems. The Omron E2E-X16MC118 2M Inductive Proximity Sensor is designed to monitor metallic targets without physical contact, helping maintain reliable machine operation while reducing the risk of mechanical wear associated with traditional limit switches.
Technical Description
The Omron E2E-X16MC118 2M Inductive Proximity Sensor is a cylindrical M18 inductive sensor developed for industrial automation environments. Featuring a 16 mm sensing distance and an NPN normally open output, the sensor is suitable for machine builders and system integrators requiring dependable object detection and position monitoring.
The integrated 2-meter cable simplifies installation in control systems where direct connector access is not necessary. Its rugged nickel-plated brass housing supports long-term operation in demanding industrial conditions.
Operating Principle
The sensor continuously generates an electromagnetic field at the sensing face. When a metallic object enters the detection area, induced eddy currents affect the internal oscillator circuit. The sensor electronics identify this change and activate the output signal.
The Omron E2E-X16MC118 2M Inductive Proximity Sensor performs detection without physical contact, enabling consistent sensing performance while minimizing maintenance requirements.
Applications and Usage Areas
- Machine position monitoring
- Metal component verification
- Conveyor automation systems
- Sorting and transfer equipment
- Industrial packaging machines
- Production line automation
- Automated storage systems
- Robotic handling stations
The Omron E2E-X16MC118 2M Inductive Proximity Sensor is particularly suitable for installations requiring stable metal detection in repetitive manufacturing processes.
Industrial Applications
Automated Warehousing
Used to detect metallic carriers, transfer units, and positioning mechanisms within automated logistics systems.
Machine Tool Equipment
Supports monitoring of moving machine components and workpiece positioning during machining operations.
Packaging Lines
Provides reliable detection of metallic machine elements involved in indexing and transport processes.
Industrial Robotics
Used for confirming the position of metallic tooling, grippers, and transfer fixtures.
Advantages
- Long sensing distance for an M18 sensor
- NPN normally open output configuration
- Reliable detection of metallic targets
- Compact cylindrical housing
- IP67 and IP69K protection ratings
- Resistance to vibration and industrial contaminants
- Simple integration into automation systems
- Reduced maintenance compared to mechanical switches
Considerations Before Selection
- Confirm compatibility with NPN control inputs.
- Ensure sufficient installation space for non-flush mounting.
- Verify the target material is suitable for inductive sensing.
- Review environmental protection requirements.
- Consider cable routing requirements during installation.
- Evaluate switching speed requirements for dynamic applications.
Engineers seeking related sensing technologies can explore additional Omron sensor solutions for different housing sizes and output configurations.
Frequently Asked Questions
What type of targets can this sensor detect?
The sensor is designed for metallic object detection.
What is the sensing range?
The rated sensing distance is 16 mm.
Which output configuration is used?
This model provides an NPN normally open output.
Does the sensor require physical contact?
No. Detection is performed through an electromagnetic field.
What is the cable length?
The sensor is supplied with a 2-meter pre-wired cable.
Can it be used in wet environments?
Yes. IP67 and IP69K ratings support operation in environments exposed to moisture and washdown procedures.
What industries commonly use the Omron E2E-X16MC118 2M Inductive Proximity Sensor?
Manufacturing, logistics, robotics, machine building, and packaging industries commonly use this sensor.
What is the operating temperature range?
The sensor operates from -25°C to +70°C.
Is it suitable for high-speed automation systems?
Its 400 Hz response frequency supports a wide range of industrial automation applications.
Where is the Omron E2E-X16MC118 2M Inductive Proximity Sensor typically installed?
It is commonly installed on conveyors, machine tools, robotic systems, and automated production equipment.
