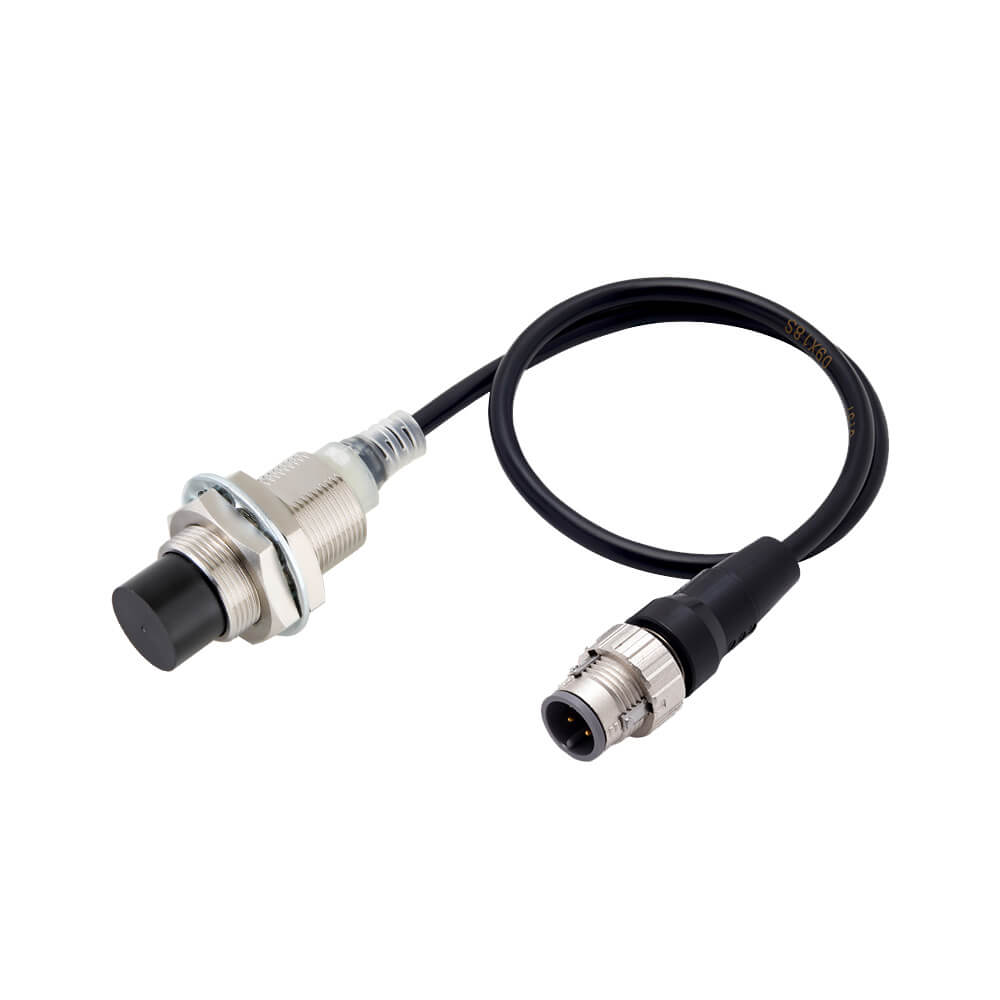

Omron E2E-X16MB1T18-M1TJ 0.3M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M18 |
| Mounting Type | Non-flush |
| Sensing Distance | 16 mm |
| Output Type | PNP Normally Open (NO) |
| Connection Type | M12 Pigtail Connector |
| Cable Length | 0.3 m |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 400 Hz |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67, IP69K |
| Operating Temperature | -40°C to +85°C |
Industrial automation projects often require a balance between compact wiring arrangements and service-friendly connectivity. The Omron E2E-X16MB1T18-M1TJ 0.3M Inductive Proximity Sensor addresses this need through a short pigtail cable combined with an M12 connector interface. This configuration provides installation flexibility while maintaining the durability expected from industrial sensing equipment.
Technical Description
The Omron E2E-X16MB1T18-M1TJ 0.3M Inductive Proximity Sensor is an M18 cylindrical inductive sensor developed for reliable detection of metallic targets. Its non-flush mounting design enables a sensing distance of 16 mm, supporting applications where greater detection range is required.
The sensor incorporates a short 0.3-meter pigtail cable terminated with an M12 connector, allowing convenient integration into machine wiring systems. This arrangement can simplify cable routing while maintaining secure industrial connectivity.
Working Principle
The sensor creates an electromagnetic field at the sensing face through an internal oscillator circuit. When a conductive metallic object enters the detection zone, eddy currents are generated within the target.
These currents affect the oscillator characteristics, enabling the internal electronics to identify the presence of the object. Once the switching threshold is reached, the PNP normally open output changes state and transmits a signal to the control system.
Because operation is completely non-contact, the sensing process avoids mechanical wear and supports consistent long-term performance.
Applications
- Automated assembly systems
- Industrial transfer equipment
- Robotic production cells
- Position verification systems
- Metal component detection
- Packaging machinery
- Conveyor automation
Industrial Applications
Robotic Manufacturing Systems
The sensor can confirm fixture positions and detect metallic workpieces before robotic handling or assembly operations begin.
Packaging Equipment
Used to monitor machine positions, actuator travel, and component movement during packaging processes.
Factory Automation Installations
The pigtail connector design supports modular machine construction and simplifies field replacement procedures.
Material Handling Systems
Provides reliable position feedback for transfer mechanisms, lift systems, and automated transport equipment.
Advantages
- Extended 16 mm sensing distance
- Compact pigtail connection design
- Fast installation using M12 connectivity
- IP67 and IP69K environmental protection
- Suitable for demanding industrial environments
- Reliable non-contact metal detection
- Reduced maintenance requirements
Sector-Specific Examples
In automated electronics manufacturing facilities, sensors can verify pallet positioning before processing stations begin operation. Food packaging equipment often incorporates protected inductive sensors for position monitoring where regular cleaning procedures are required. Warehouse automation systems can use these devices to track carrier movement and verify transfer points within logistics operations.
The Omron E2E-X16MB1T18-M1TJ 0.3M Inductive Proximity Sensor is particularly useful in machine designs that utilize pre-assembled connector harnesses and modular electrical architectures.
Engineers seeking additional sensing solutions can review Omron sensor series for related industrial automation technologies.
Important Selection Considerations
- Verify that the target object is metallic.
- Confirm available installation space for non-flush mounting.
- Ensure compatibility with M12 wiring infrastructure.
- Evaluate environmental exposure conditions.
- Review required sensing distance and target dimensions.
- Confirm PLC input compatibility with PNP outputs.
Frequently Asked Questions
What is the purpose of the 0.3-meter pigtail cable?
The short cable section provides flexible routing while maintaining connector-based installation.
What type of objects can the sensor detect?
The sensor is designed to detect metallic objects through inductive sensing technology.
What is the specified sensing distance?
The nominal sensing distance is 16 mm.
Can the sensor operate in harsh environments?
Yes. IP67 and IP69K ratings support operation in demanding industrial conditions.
What output type is available?
The sensor provides a PNP normally open output.
What voltage range is required?
The operating voltage range is 10 to 30 VDC.
Is physical contact required for detection?
No. The sensor detects metallic targets without physical contact.
How is routine maintenance performed?
Maintenance typically involves visual inspection of connectors, mounting hardware, and sensing surfaces.
Where is the Omron E2E-X16MB1T18-M1TJ 0.3M Inductive Proximity Sensor commonly installed?
The Omron E2E-X16MB1T18-M1TJ 0.3M Inductive Proximity Sensor is frequently installed in modular automation systems, robotic cells, and packaging machinery.
Why use the Omron E2E-X16MB1T18-M1TJ 0.3M Inductive Proximity Sensor in connectorized machine designs?
The Omron E2E-X16MB1T18-M1TJ 0.3M Inductive Proximity Sensor combines non-contact detection with simplified connector-based integration and maintenance.
