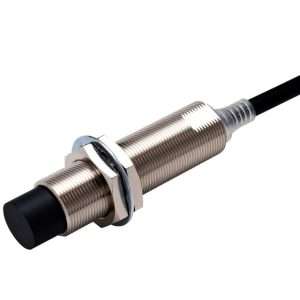

Omron E2E-X16MB1D18-M1 Mini Inductive Proximity Sensor: Technical Guide and Application Manual
The Omron E2E-X16MB1D18-M1 is a Mini Inductive Proximity Sensor developed for engineers who understand that the cost of an unplanned stop far exceeds the cost of a quality sensor. Operating voltage 12-24V DC, it addresses real challenges in confined space metal detection.
For projects where sensing and control decisions must be made together, Omron’s Omron Sensor products are a natural companion to this unit. Both families are built to the same quality standards.
Understanding the Omron E2E-X16MB1D18-M1 Mini Inductive Proximity Sensor
The Omron E2E-X16MB1D18-M1 is a Mini Inductive Proximity Sensor rated at 12-24V DC designed to reliably handle confined space metal detection applications. Key engineering features include m8 body, 1.5 mm sensing distance, compact design, ip67.
Technically, the Omron E2E-X16MB1D18-M1 delivers m8 body, 1.5 mm sensing distance, compact design, ip67. 12-24V DC voltage rating simplifies system integration.
Core Specifications
The table below summarises the main technical parameters of the Omron E2E-X16MB1D18-M1. For complete specifications, refer to the official Omron product datasheet.
| Parameter | Value |
|---|---|
| Product Type | Mini Inductive Proximity Sensor |
| Operating Voltage | 12-24V DC |
| Output Type | NPN output |
| Output Current | 200 mA |
| Key Features | M8 body, 1.5 mm sensing distance, compact design, IP67 |
| Mounting | Screw mount or clip |
| Lifetime | Semiconductor |
| Operating Temperature | -25°C to +70°C |
| Compatible Accessory | Mounting bracket |
Application Scenarios
The Omron E2E-X16MB1D18-M1 Mini Inductive Proximity Sensor is commonly specified for the following applications:
- Confined space metal detection
- Electronics assembly
- Small machine applications
Across these use cases, the consistent requirement is reliable detection — often in environments where an unplanned fault would create significant disruption. The Omron E2E-X16MB1D18-M1 is designed with exactly those conditions in mind.
Getting It Right at Installation
A few installation details make a tangible difference with the Omron E2E-X16MB1D18-M1 Mini Inductive Proximity Sensor. Mount the sensor at a location free from vibration. Keep the cable route away from sharp edges. Adjust the target distance to operate at 80% of the nominal sensing range.
For ongoing maintenance, keep the sensor lens clean, check cable connections, and periodically test that the LED indicator functions correctly. Early intervention avoids the much larger cost of an unplanned production stop.
Why Engineers Choose Omron
Specifying the Omron E2E-X16MB1D18-M1 Mini Inductive Proximity Sensor also means specifying into an ecosystem. Omron’s portfolio covers sensors, relays, PLCs, power supplies, and more — all engineered to work together.
Frequently Asked Questions
How do I install the Omron E2E-X16MB1D18-M1?
Mount the Omron E2E-X16MB1D18-M1 Mini Inductive Proximity Sensor using a mounting bracket to a stable surface, make cable connections, and adjust the target distance.
What is the service life of the Omron E2E-X16MB1D18-M1?
As the Omron E2E-X16MB1D18-M1 Mini Inductive Proximity Sensor uses semiconductor technology with no moving mechanical parts, it has a very long service life.
Is the Omron E2E-X16MB1D18-M1 sensitive to inductive loads?
The Omron E2E-X16MB1D18-M1 Mini Inductive Proximity Sensor includes short-circuit and overcurrent protection in its output circuit.
Is the Omron E2E-X16MB1D18-M1 RoHS compliant?
Omron products conform to RoHS Directive requirements. Specific compliance documentation can be requested from authorised distributors.
What periodic maintenance does the Omron E2E-X16MB1D18-M1 require?
Keep the sensor lens clean, check cable connections, and ensure the mounting screw is tight.
