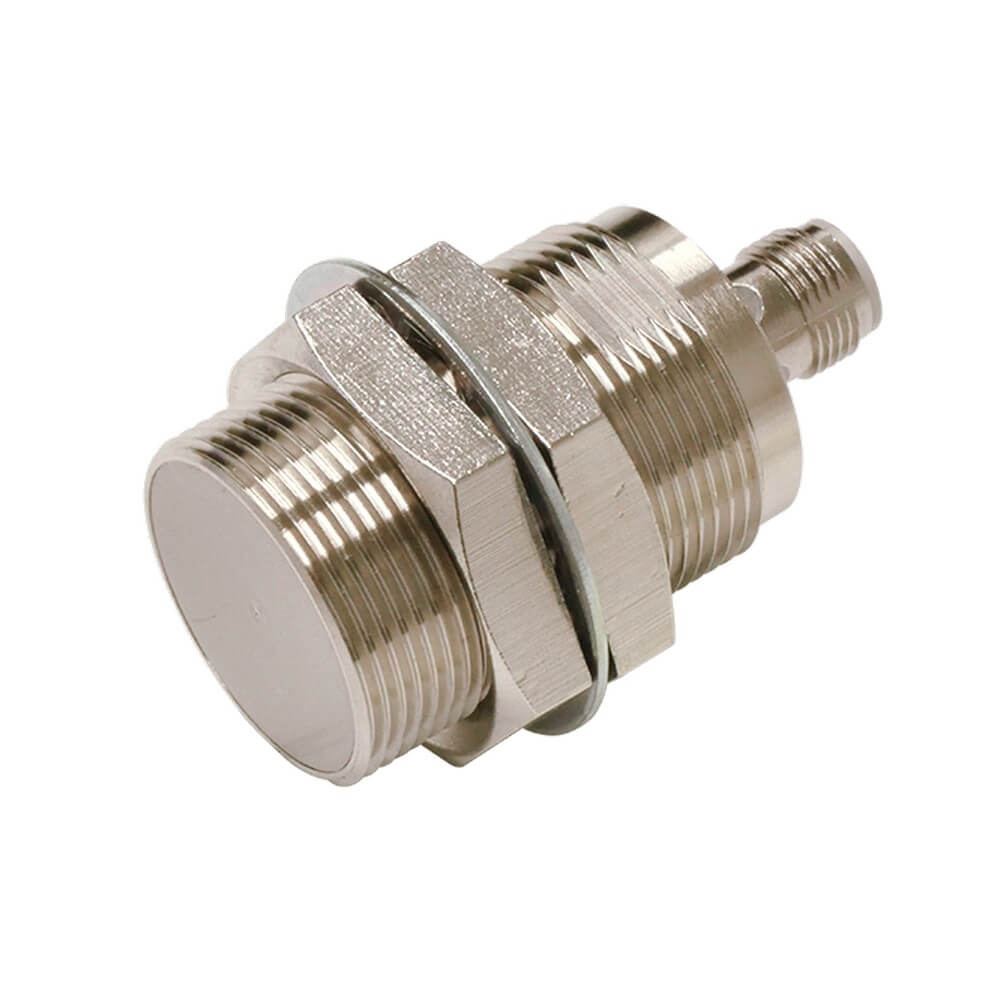

Omron E2E-X15C330-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M30 |
| Sensing Distance | 15 mm |
| Mounting Type | Quasi-flush (Shielded) |
| Output Type | NPN |
| Operation Mode | NO + NC |
| Connection Type | M12 Connector |
| Housing Material | Nickel-Plated Brass |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 250 Hz |
| Protection Rating | IP67 / IP67G / IP69K |
| Operating Temperature | -40°C to +85°C |
| Length | 60.3 mm |
Technical Description
Modern automation systems often require sensing devices capable of operating reliably in environments where mechanical switches would be exposed to wear and contamination. The Omron E2E-X15C330-M1 Inductive Proximity Sensor is designed for this purpose, providing stable non-contact detection of metallic objects while supporting simplified installation through its M12 connector interface.
The sensor belongs to Omron’s E2E NEXT family and incorporates a 15 mm sensing range within an M30 threaded housing. Its combination of environmental protection, industrial durability, and flexible output configuration allows integration into a wide variety of machine control and monitoring systems.
Working Principle
The Omron E2E-X15C330-M1 Inductive Proximity Sensor generates an electromagnetic field at the sensing surface. When a conductive metal target enters the sensing area, induced eddy currents alter the oscillation characteristics of the internal circuit. This change is detected electronically and converted into a switching signal.
Because the sensing process occurs without physical contact, the sensor can perform repeated detection tasks with minimal maintenance requirements and without mechanical wear.
Technical Characteristics
- 15 mm sensing distance
- M30 threaded cylindrical body
- NPN transistor output
- Normally Open and Normally Closed outputs
- M12 connector connection
- Nickel-plated brass housing
- Wide operating temperature range
- High resistance to dust, moisture, and washdown conditions
- Shielded sensing construction
Typical Areas of Use
The Omron E2E-X15C330-M1 Inductive Proximity Sensor can be installed in machinery where metallic object presence, position, or movement must be monitored continuously.
- Automated production lines
- Assembly stations
- Conveyor transfer systems
- Material handling equipment
- Industrial robotics
- Packaging machines
- Sorting systems
Industrial Applications
Robotic Manufacturing Cells
The sensor can verify fixture positioning and confirm the presence of metallic workpieces before robotic operations begin.
Warehouse Automation
Automated transfer equipment may use the sensor to monitor pallet movement and mechanical stop positions.
Food Processing Equipment
The IP69K protection rating supports installation in areas subject to frequent washdown procedures.
Assembly Equipment
Metal components moving through assembly processes can be detected without introducing physical contact points.
Advantages
- Reliable metallic target detection
- Quick replacement through M12 connector wiring
- Reduced maintenance requirements
- Protection against harsh industrial conditions
- Suitable for compact installation layouts
- Consistent switching performance
- Long operational service life
Selection Considerations
When selecting an inductive sensor, users should evaluate sensing distance, target dimensions, installation constraints, electrical interface requirements, environmental exposure, and connector compatibility.
The Omron E2E-X15C330-M1 Inductive Proximity Sensor is often selected when connector-based installation is preferred over fixed cable wiring while maintaining the same sensing characteristics as cable-connected models.
For additional sensor families and automation solutions, explore Omron sensor series.
Frequently Asked Questions
What is the sensing distance of this sensor?
The nominal sensing distance is 15 mm.
Which connection method is used?
The sensor uses an M12 connector for electrical connection.
What output type is available?
NPN output with NO and NC switching functions.
Can the sensor operate in washdown environments?
Yes. Its IP69K protection rating supports demanding cleaning procedures.
Is the sensor suitable for detecting aluminum parts?
Inductive sensors can detect various metals, although sensing distance may vary depending on material characteristics.
What voltage range is supported?
The operating voltage range is 10 to 30 VDC.
Can it be mounted near metal structures?
The shielded design supports installation near surrounding metal surfaces when proper mounting guidelines are followed.
Where is this sensor commonly installed?
It is frequently used in manufacturing, logistics, robotics, and automated handling equipment.
