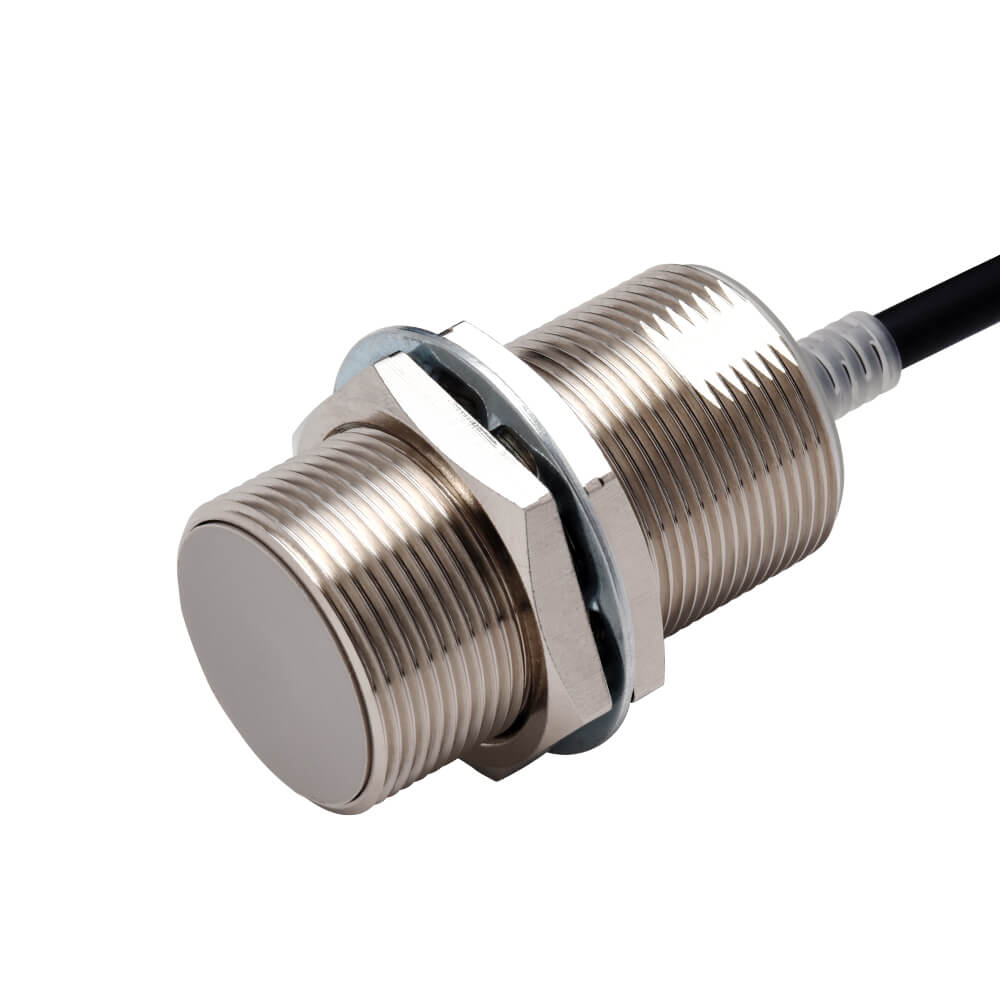

Omron E2E-X15B3DL30 2M Inductive Proximity Sensor

The Omron E2E-X15B3DL30 2M Inductive Proximity Sensor is designed for non-contact detection of metallic targets in industrial automation systems. As part of the E2E sensor family, it incorporates stable sensing performance, environmental resistance, and a robust cylindrical housing suitable for demanding operating conditions. The sensor uses electromagnetic induction technology to detect the presence of ferrous and conductive metallic objects without physical contact.

Technical Overview

The Omron E2E-X15B3DL30 2M Inductive Proximity Sensor features a 15 mm sensing distance and a shielded sensing structure that helps minimize interference from surrounding metal components. The M30 threaded housing simplifies installation in machinery, production equipment, and material handling systems.

The sensor operates from a 10 to 30 VDC power supply and provides a PNP normally open switching output. The integrated 2-meter cable enables direct wiring into industrial control panels, PLC systems, and automation networks.

Working Principle

Like other inductive sensors, the Omron E2E-X15B3DL30 2M Inductive Proximity Sensor generates a high-frequency electromagnetic field at the sensing face. When a metallic object enters this field, eddy currents are induced within the target material. These currents alter the oscillation characteristics of the sensor circuit, triggering the output signal.

This sensing method eliminates mechanical wear because no physical contact is required during detection. As a result, the sensor supports long service life and reliable operation in repetitive industrial processes.

Typical Applications

• Machine tool positioning systems
• Automated conveyor monitoring
• Assembly line part detection
• Packaging equipment control
• Metal component counting systems
• Automated storage and retrieval equipment
• Industrial robotics installations

Industrial Use Cases

In automotive manufacturing environments, the sensor can verify the presence of metal brackets before welding operations begin. In packaging facilities, it can detect machine positions and actuator movement to support synchronized production cycles.

Material handling systems frequently use the Omron E2E-X15B3DL30 2M Inductive Proximity Sensor to monitor metallic carriers moving through conveyor networks. The sensor may also be integrated into robotic cells where precise position confirmation is required before automated handling actions are executed.

Advantages

• Non-contact metal detection
• 15 mm sensing range for reliable target recognition
• IP67 environmental protection
• Resistance to dust and moisture
• Compact M30 threaded installation
• Stable operation across a wide temperature range
• Suitable for industrial automation environments

Factors to Consider During Selection

When selecting an inductive proximity sensor, engineers should evaluate sensing distance requirements, available mounting space, target material characteristics, output configuration, and environmental conditions. Shielded sensors such as this model are particularly useful when installation space is limited or when nearby metal structures could affect sensing performance.

Additional information about compatible sensing technologies and related products can be found through Omron sensor product ranges.

Frequently Asked Questions

What type of objects can this sensor detect?

The sensor is designed primarily for metallic targets, including steel, iron, aluminum, and other conductive metals.

What is the sensing distance?

The rated sensing distance is 15 mm.

Is the sensor suitable for outdoor industrial environments?

The IP67 protection rating provides resistance against dust ingress and temporary water exposure.

What output configuration does the sensor use?

It provides a PNP normally open output.

Can the sensor be connected directly to a PLC?

Yes. The output is commonly used with PLC digital input modules operating within the specified voltage range.

What cable length is included?

The sensor is supplied with a factory-attached 2-meter cable.

Does the sensor require contact with the target?

No. Detection occurs through electromagnetic induction without physical contact.

Where is the Omron E2E-X15B3DL30 2M Inductive Proximity Sensor commonly used?

It is widely used in manufacturing equipment, packaging machinery, conveyor systems, and automated production cells.

What are the benefits of using the Omron E2E-X15B3DL30 2M Inductive Proximity Sensor?

The sensor offers reliable metal detection, environmental protection, reduced mechanical wear, and compatibility with industrial automation systems.
