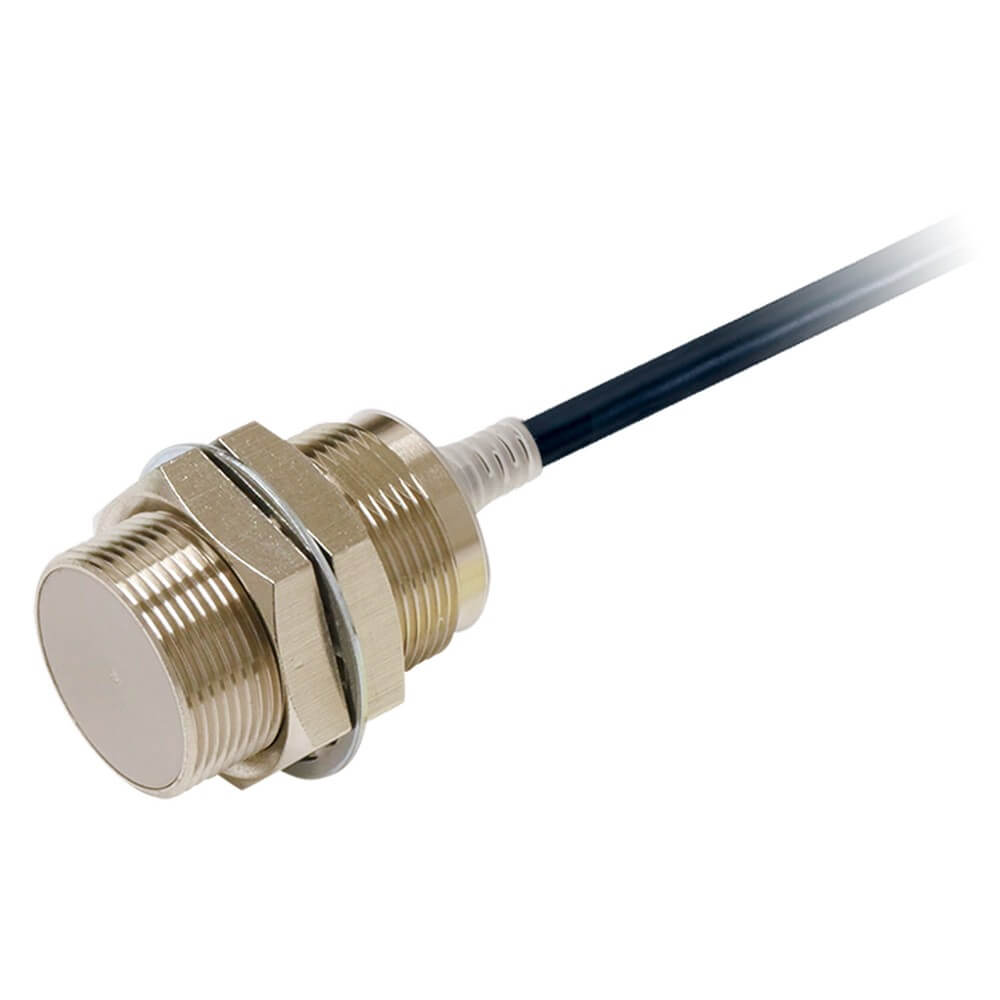

Omron E2E-X15B1T30 10M Inductive Proximity Sensor

The Omron E2E-X15B1T30 10M Inductive Proximity Sensor is developed for industrial environments that require dependable metal object detection over extended cable runs. Its M30 housing, flush mounting design, and 15 mm sensing distance support integration into large machinery and distributed automation architectures.

Technical Description

The Omron E2E-X15B1T30 10M Inductive Proximity Sensor is part of the E2E NEXT family, designed to provide stable sensing performance under challenging industrial conditions. The sensor uses inductive detection technology and delivers a PNP normally open output suitable for a wide range of PLC and control system inputs.

The sensor incorporates a 10-meter prewired cable, making it appropriate for installations where control cabinets are positioned far from sensing locations. The rugged nickel-plated brass enclosure contributes to mechanical durability in production facilities.

Working Principle

The sensing face generates an electromagnetic field through an internal oscillator circuit. When a metallic object enters the sensing range, induced eddy currents absorb energy from the field.

The sensor continuously monitors these changes and converts them into a switching signal. This non-contact operating method eliminates physical wear between the sensor and the detected object while maintaining consistent detection performance.

Applications

• Automated conveyor monitoring
• Machine positioning systems
• Metal component detection
• Industrial assembly equipment
• Material transport systems
• Manufacturing process automation
• Equipment safety interlocking systems

The Omron E2E-X15B1T30 10M Inductive Proximity Sensor is commonly integrated into facilities where long cable routing is required between sensing points and centralized control systems.

Omron E2E-X15B1T30 10M Industrial Applications

Automated Warehousing

The sensor can monitor metal carriers, transfer units, and conveyor mechanisms operating throughout large warehouse facilities.

Heavy Equipment Manufacturing

Used for detecting machine component positions and verifying operational sequences within fabrication systems.

Production Automation

Supports automated process control by providing reliable feedback regarding moving metal assemblies.

Packaging Operations

Assists with machine synchronization and product handling verification in automated packaging environments.

Advantages

• 15 mm sensing distance for stable metal detection.
• Extended 10 m cable for large installations.
• Flush mounting capability.
• PNP normally open output.
• Protection against dust, moisture, and washdown conditions.
• Mechanical durability through metal housing construction.
• Compatibility with modern industrial automation systems.

Sector-Specific Usage Examples

• Monitoring pallet transfer mechanisms in logistics centers.
• Detecting carriage positions in automated transport systems.
• Verifying actuator movement in industrial machinery.
• Monitoring machine cycle completion through metal target detection.
• Detecting indexing positions in manufacturing equipment.

Considerations When Selecting This Sensor

• Confirm compatibility with PNP input circuitry.
• Ensure metallic target materials are present.
• Verify installation space for M30 threaded housing.
• Review sensing distance requirements.
• Evaluate cable routing needs for the 10-meter connection.
• Consider environmental exposure and protection requirements.

The Omron E2E-X15B1T30 10M Inductive Proximity Sensor is suitable for industrial systems requiring reliable metal detection and long-distance sensor wiring. For additional sensing technologies, visit More Omron sensor solutions.

Omron E2E-X15B1T30 10M Frequently Asked Questions

What type of output does this sensor provide?

The sensor provides a PNP normally open output.

What is the rated sensing distance?

The rated sensing distance is 15 mm.

Can it detect non-metallic materials?

No. The sensing technology is intended for metallic targets.

Why does this model use a 10-meter cable?

The longer cable supports installations where the control system is located far from the sensing point.

What supply voltage is required?

The sensor operates from 10 to 30 VDC.

Can it be used in wet environments?

Yes. The sensor supports IP67, IP67G, and IP69K protection ratings.

Which industries commonly use this device?

Manufacturing, logistics, packaging, material handling, and machine-building industries commonly use this sensor.

How does the sensing technology work?

The sensor detects changes in an electromagnetic field caused by metallic objects entering the sensing zone.
