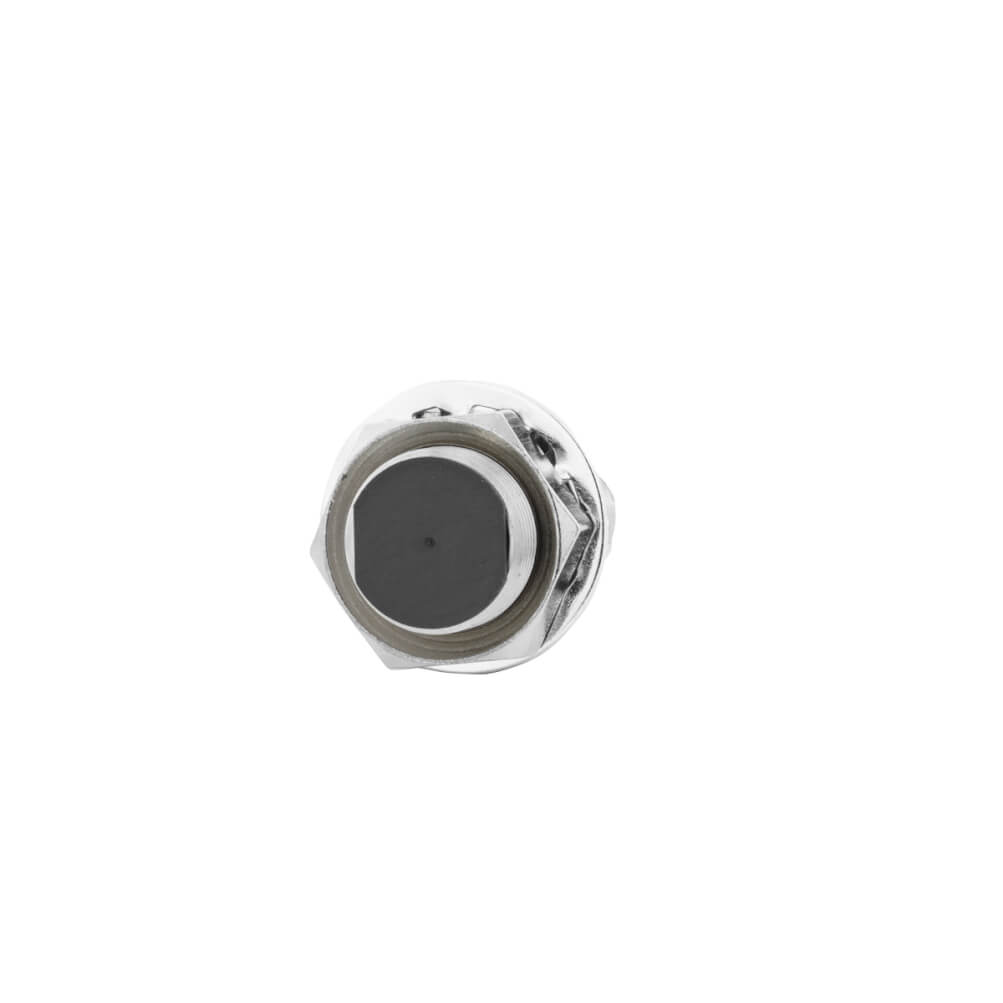

Omron E2E-X14C118-M1 Inductive Proximity Sensor

Modern industrial automation systems depend on accurate and repeatable object detection to maintain process consistency and equipment efficiency. The Omron E2E-X14C118-M1 Inductive Proximity Sensor is designed to provide dependable detection of metallic objects without physical contact, making it suitable for manufacturing machinery, automated handling systems, packaging equipment, and machine-building applications. Its connectorized design supports efficient installation and maintenance while helping standardize electrical connections throughout industrial facilities.

Technical Description

The Omron E2E-X14C118-M1 Inductive Proximity Sensor belongs to the E2E NEXT series and incorporates an NPN normally open output configuration. The sensor features an M18 cylindrical housing and a rated sensing distance of 14 mm. Designed for operation within a supply voltage range of 10 to 30 VDC, it can be integrated into a wide variety of industrial control architectures.

The nickel-plated brass housing provides durability against vibration, mechanical impact, and industrial contaminants. The M12 connector allows simplified wiring and facilitates rapid sensor replacement during maintenance activities, reducing machine downtime and improving serviceability.

Working Principle

The Omron E2E-X14C118-M1 Inductive Proximity Sensor operates by generating a high-frequency electromagnetic field at the sensing face. When a conductive metallic object enters the detection zone, eddy currents are generated within the target material. These currents influence the internal oscillator circuit and cause the output stage to switch.

Because the sensing method does not require direct physical contact, the sensor minimizes wear and supports long-term operation in applications involving frequent switching cycles and continuous machine movement.

Applications and Usage Areas

• Industrial conveyor systems
• Automated assembly machinery
• Robotic manufacturing cells
• Machine tool automation
• Packaging and processing equipment
• Material handling systems
• Metal component detection
• Automated transfer stations
• Production line monitoring
• Warehouse automation systems

Industrial Applications

Robotic Assembly Systems

Robotic work cells utilize proximity sensors to verify fixture positions and confirm the presence of metallic components before automated assembly operations begin.

Packaging Machinery

Packaging equipment often requires reliable monitoring of guide mechanisms, indexing systems, and machine positions during continuous production cycles.

Automated Warehousing

Storage and retrieval systems employ inductive sensors to monitor transport carriers, shuttle positions, and transfer equipment movement.

Metal Processing Equipment

Machining centers, fabrication systems, and metalworking machinery rely on metallic target detection to monitor workpiece presence and machine status.

Advantages

• Extended 14 mm sensing distance
• NPN normally open output configuration
• M12 connector for simplified installation
• Reliable metallic object detection
• IP67 and IP69K environmental protection
• Nickel-plated brass housing construction
• Reduced maintenance due to non-contact operation
• Suitable for demanding industrial environments

Sector-Specific Usage Examples

In automated logistics facilities, the Omron E2E-X14C118-M1 Inductive Proximity Sensor can monitor metallic transport carriers moving through conveyor-based distribution systems. In machine-building projects, the sensor may provide position feedback for actuators, transfer mechanisms, and indexing assemblies.

The Omron E2E-X14C118-M1 Inductive Proximity Sensor is also used in production lines where metallic fixtures must be verified before machining, assembly, or inspection processes. Its robust design supports reliable operation in facilities running continuous production schedules.

Considerations When Selecting the Sensor

• Verify compatibility with NPN PLC inputs.
• Confirm that a normally open output matches application requirements.
• Evaluate available installation space around the M18 housing.
• Review environmental conditions including moisture and contamination exposure.
• Consider target size and metallic composition.
• Assess connector accessibility for maintenance activities.
• Verify supply voltage compatibility with the control system.
