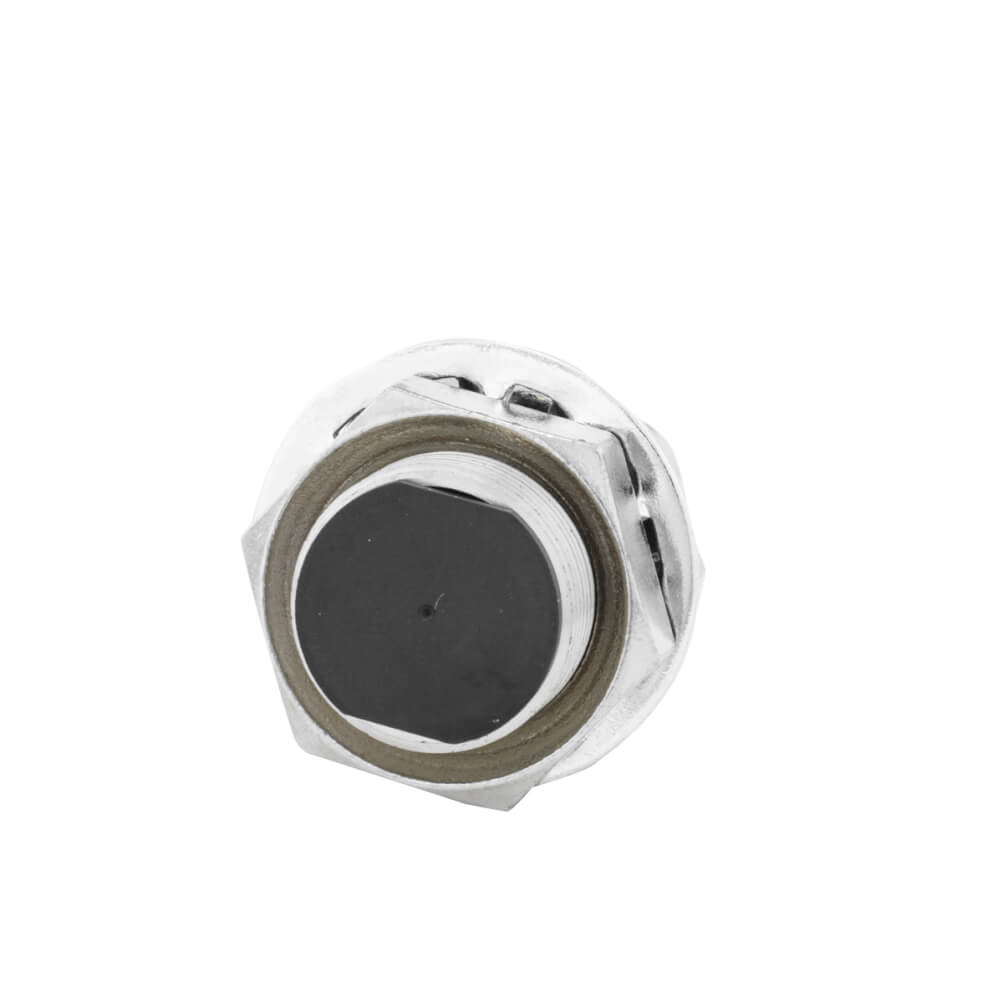

Omron E2E-X12C218-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Housing Diameter | M18 |
| Sensing Distance | 12 mm |
| Mounting Type | Non-Flush |
| Output Type | NPN Normally Open (NO) |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | M12 Connector |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 |
| Response Frequency | 250 Hz |
| Operating Temperature | -25°C to +70°C |
| Connector Type | M12 4-Pin |
The Omron E2E-X12C218-M1 Inductive Proximity Sensor is designed for industrial automation systems that require flexible installation and connector-based wiring. The M12 connector simplifies maintenance activities and allows quick replacement without rewiring the entire sensing circuit.
Technical Description
The Omron E2E-X12C218-M1 Inductive Proximity Sensor features a 12 mm sensing distance and NPN normally open output. The sensor belongs to the E2E proximity sensor family and is designed for reliable metallic object detection in automated machinery.
Working Principle
Using electromagnetic induction, the sensor identifies metallic objects entering the sensing field. Internal electronics process the resulting changes and activate the output signal when a target is detected.
Advantages
- M12 connector simplifies maintenance.
- 12 mm sensing range.
- Non-contact detection technology.
- Robust industrial construction.
- Reliable operation in automation systems.
- IP67 environmental protection.
- NPN output compatibility.
- Suitable for continuous-duty applications.
Application Areas
- Automated production lines
- Robotic systems
- Packaging equipment
- Machine tools
- Material transport systems
- Industrial assembly stations
- Metalworking facilities
- Automated inspection systems
The Omron E2E-X12C218-M1 Inductive Proximity Sensor is particularly useful in machinery where fast replacement and connector-based maintenance are priorities.
View additional Omron sensor products for related applications.
Industrial Applications
Robotics
Used for position confirmation and end-of-travel detection.
Assembly Automation
Supports verification of component presence during production processes.
Packaging Systems
Detects moving metallic machine elements and carriers.
Machine Building
Provides reliable position feedback for automated equipment.
Frequently Asked Questions
What is the sensing distance?
The rated sensing distance is 12 mm.
What type of connector is used?
An M12 4-pin connector is provided.
Which materials can be detected?
The sensor detects metallic objects.
Is the Omron E2E-X12C218-M1 Inductive Proximity Sensor suitable for automation systems?
Yes, it is designed for industrial automation applications.
What output type does it provide?
NPN normally open output.
What protection rating is available?
The sensor is rated IP67.
Does it require physical contact?
No, detection occurs without contact.
Why choose the connector version?
Connector-based wiring simplifies replacement and maintenance procedures.
