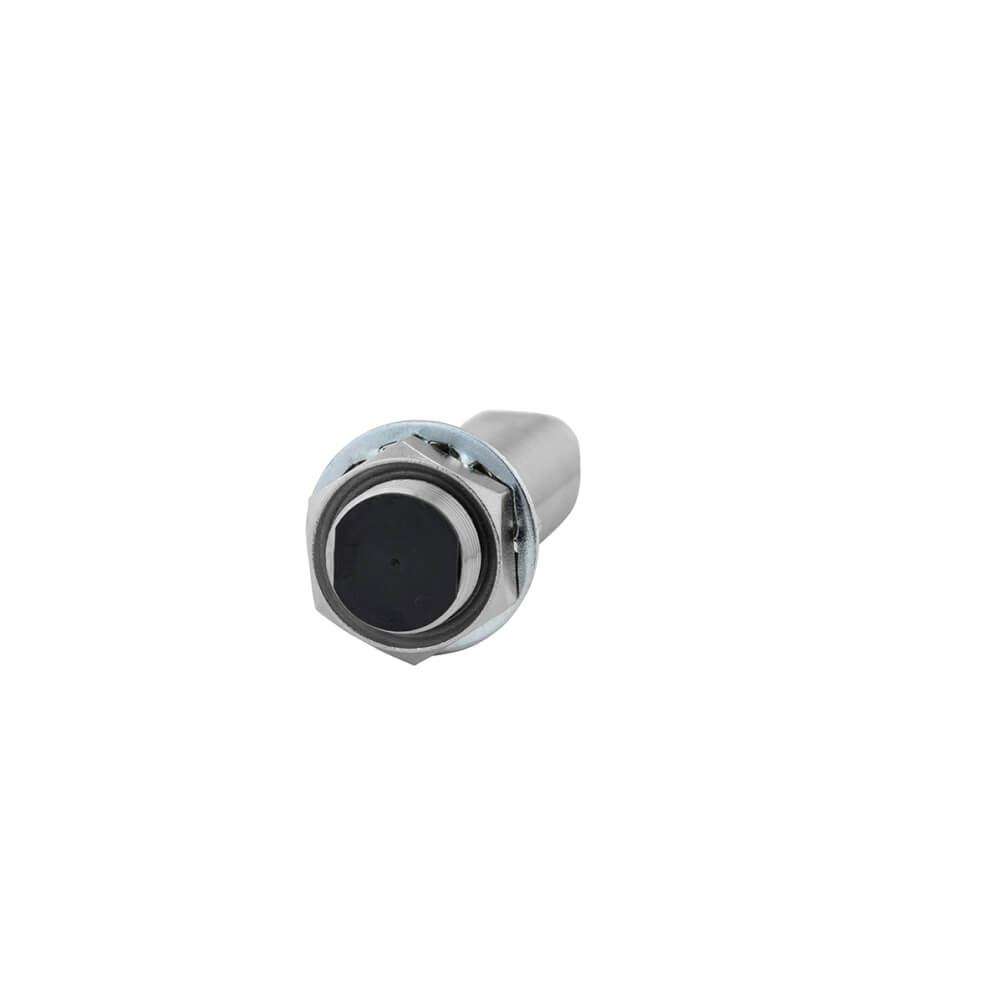

Omron E2E-X12B3DL18-M1 Inductive Proximity Sensor

The Omron E2E-X12B3DL18-M1 Inductive Proximity Sensor is designed for reliable non-contact detection of metallic objects in industrial automation systems. Featuring a shielded M18 cylindrical housing, a 12 mm sensing distance, and integrated IO-Link communication, this sensor supports modern machine monitoring and process control architectures. Its nickel-plated brass construction and high ingress protection rating make it suitable for demanding industrial environments where durability and stable operation are required.

Technical Overview

The Omron E2E-X12B3DL18-M1 Inductive Proximity Sensor belongs to the E2E NEXT series of industrial proximity sensors. It utilizes an electromagnetic field to detect metallic targets without physical contact. The sensor provides both normally open and normally closed switching outputs while supporting IO-Link communication for diagnostics and parameter management.

The M18 threaded body simplifies installation in machine frames, fixtures, and production equipment. With a sensing distance of 12 mm, the sensor can detect metallic components while maintaining a safe mechanical clearance between the target and sensing face.

Working Principle

Inductive proximity sensors generate a high-frequency electromagnetic field at the sensing surface. When a conductive metal object enters this field, eddy currents are induced within the target material. These currents alter the oscillator characteristics inside the sensor, allowing the electronics to determine the presence of the object.

The Omron E2E-X12B3DL18-M1 Inductive Proximity Sensor performs this detection process continuously and without physical contact. As a result, there is no mechanical wear, making it suitable for high-cycle industrial applications.

Key Features and Advantages

• 12 mm sensing distance for reliable metal detection.
• PNP output with NO and NC operating modes.
• Integrated IO-Link communication capabilities.
• Robust nickel-plated brass housing.
• IP67 and IP69K environmental protection.
• M12 connector for simplified installation and maintenance.
• Operating temperature range from -25°C to +70°C.
• 500 Hz response frequency for dynamic applications.

Typical Application Areas

The Omron E2E-X12B3DL18-M1 Inductive Proximity Sensor is commonly installed in manufacturing systems where metallic objects must be detected accurately and consistently.

• Automated assembly stations
• Metalworking machinery
• Packaging equipment
• Material handling systems
• Conveyor automation
• Robotic work cells
• CNC machining centers
• Industrial positioning systems

For additional industrial sensing solutions, explore Omron sensor products.

Industrial Applications

Automotive Manufacturing

In automotive production lines, the sensor can verify the presence of metallic brackets, body components, and fixture positions before automated processes begin.

Machine Tool Systems

CNC equipment often uses inductive sensors to monitor tool positions, clamp status, and workpiece presence. The sensor’s high durability supports continuous operation in these environments.

Material Transport Equipment

Conveyor systems frequently rely on proximity sensors to confirm pallet arrival, carrier positioning, and transfer point verification.

Robotic Automation

Industrial robots can use the Omron E2E-X12B3DL18-M1 Inductive Proximity Sensor to confirm part placement, fixture engagement, and end-of-travel positions.

Considerations When Selecting This Sensor

Several factors should be evaluated before selecting an inductive proximity sensor:

• Required sensing distance.
• Available installation space.
• Target material composition.
• Environmental conditions.
• Control system compatibility.
• Need for diagnostic communication through IO-Link.
• Connector and cabling requirements.
• Ingress protection requirements.

The Omron E2E-X12B3DL18-M1 Inductive Proximity Sensor is particularly suitable for installations requiring both conventional switching outputs and advanced IO-Link connectivity.

Maintenance and Operational Considerations

Routine inspection should include verification of connector integrity, mounting stability, and cleanliness of the sensing surface. Although the sensor operates without mechanical contact, excessive contamination or physical damage can affect long-term performance.

The diagnostic capabilities available through IO-Link can assist maintenance personnel in monitoring sensor status and identifying potential issues before unexpected downtime occurs.

Frequently Asked Questions

What type of objects can this sensor detect?

The sensor is designed to detect metallic objects through inductive sensing technology.

What is the sensing distance of this model?

The rated sensing distance is 12 mm.

Does the sensor support IO-Link communication?

Yes. It includes IO-Link functionality with COM2 communication speed.

What output configuration does it provide?

The sensor offers PNP output with both normally open and normally closed operation modes.

Is the Omron E2E-X12B3DL18-M1 Inductive Proximity Sensor suitable for washdown environments?

Its IP67 and IP69K protection ratings support use in demanding industrial environments where moisture and cleaning procedures are present.

What connection method is used?

The sensor uses a standard M12 connector for electrical connection.

Can it be integrated with PLC systems?

Yes. The PNP output is commonly used with industrial PLC input modules.

What industries commonly use this sensor?

Automotive manufacturing, machine building, packaging, material handling, robotics, and metal processing industries frequently use this type of sensor.

How does IO-Link improve maintenance?

IO-Link enables access to device diagnostics and operational information, simplifying troubleshooting and condition monitoring.

Why choose a shielded inductive sensor?

Shielded designs allow installation in confined metallic mounting structures while maintaining stable sensing performance.
