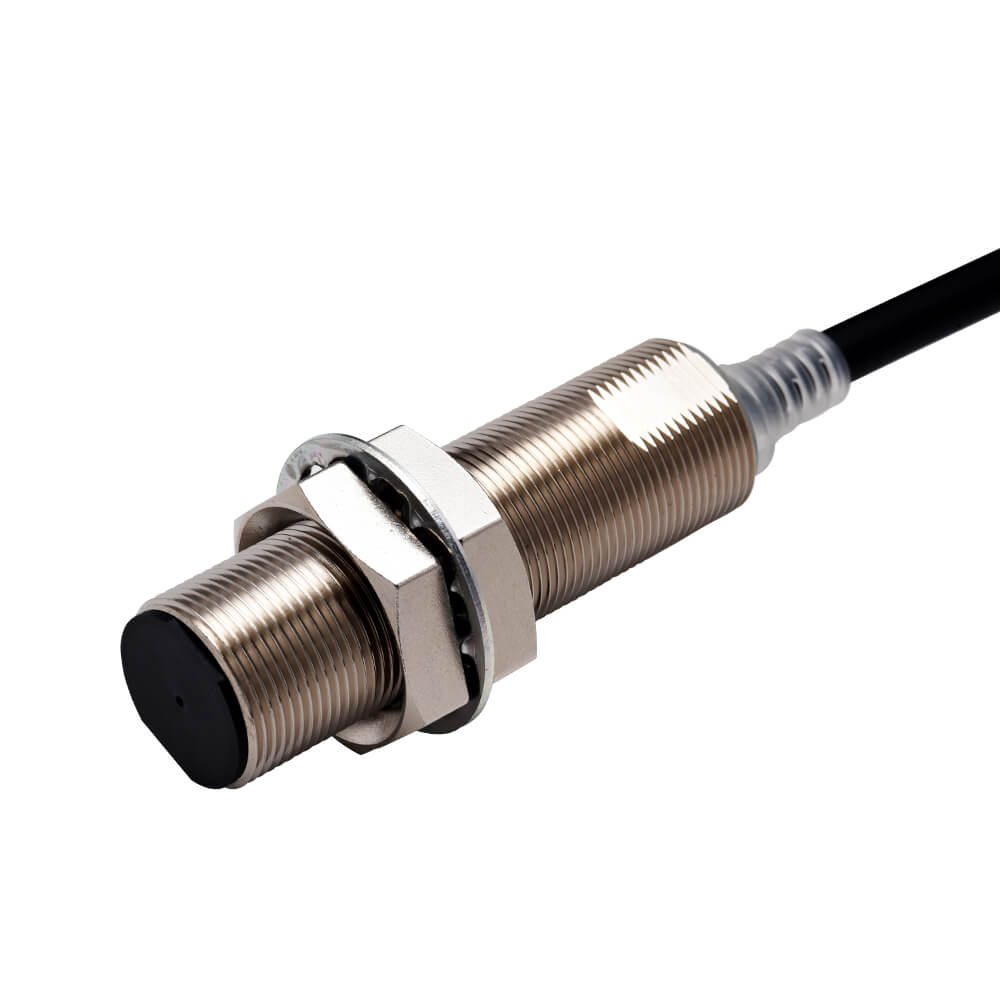

Omron E2E-X12B3DL18 2M Inductive Proximity Sensor

Technical Description

The Omron E2E-X12B3DL18 2M Inductive Proximity Sensor is developed for industrial applications that require stable non-contact detection of metallic objects under continuous operating conditions. As part of the E2E NEXT product family, this model combines robust mechanical construction with reliable sensing performance for automated production systems.

Its M18 cylindrical housing enables straightforward installation into machine structures, conveyor systems, and industrial automation equipment. The integrated 2-meter cable provides a direct wiring solution for installations where connectorized configurations are not necessary.

The Omron E2E-X12B3DL18 2M Inductive Proximity Sensor offers a nominal sensing distance of 12 mm and a PNP normally open output. The shielded sensing structure supports controlled detection characteristics and minimizes the influence of nearby metallic machine components.

Designed for industrial environments, the sensor incorporates a nickel-plated brass housing and IP67/IP69K protection ratings, supporting operation in areas exposed to moisture, dust, vibration, and washdown procedures.

Operating Principle

The sensor operates using electromagnetic induction. An oscillator inside the sensing head generates a high-frequency electromagnetic field. When a conductive metallic target enters this field, eddy currents are induced within the target material.

These currents affect the oscillator characteristics, and the sensor electronics detect the resulting changes. Once the target reaches the sensing threshold, the output switches and transmits a signal to the connected control system.

This contactless detection method eliminates mechanical wear and supports reliable long-term operation in demanding industrial applications.

Usage Areas

• Industrial automation equipment
• Machine tool systems
• Conveyor monitoring installations
• Automated assembly lines
• Packaging machinery
• Material handling equipment
• Warehouse automation systems
• Production machinery

Industrial Applications

Automotive Manufacturing

The sensor can verify metallic component positioning before robotic assembly, welding, or fastening operations are initiated.

Packaging Machinery

Packaging systems use proximity sensors to monitor moving machine components and support synchronized operation between machine stations.

Material Handling Equipment

Transfer systems rely on inductive sensing to confirm carrier locations and ensure proper movement of materials through automated processes.

Industrial Machinery

Machine builders integrate proximity sensors into equipment to monitor tooling positions, actuator movement, and machine operating sequences.

Advantages

• 12 mm sensing distance
• Integrated 2-meter cable
• PNP normally open output
• Shielded sensing design
• IP67 and IP69K environmental protection
• Reliable metallic object detection
• Reduced maintenance requirements
• Long operational service life

Sector-Specific Usage Examples

The Omron E2E-X12B3DL18 2M Inductive Proximity Sensor can be installed in automated manufacturing lines to detect metallic fixtures and workpieces before production sequences begin.

In logistics facilities, the sensor can monitor conveyor transfer positions and support automated sorting systems that depend on accurate position verification.

The Omron E2E-X12B3DL18 2M Inductive Proximity Sensor is also suitable for machine-building projects where reliable metal target detection is required throughout continuous production cycles.

Additional Omron sensor products can be evaluated for applications requiring alternative sensing distances, output types, or housing configurations.

Selection Considerations

When selecting an inductive proximity sensor, engineers should review sensing distance requirements, environmental conditions, target material properties, controller compatibility, and installation preferences.

This model is particularly suitable for applications requiring a direct cable connection and stable metallic object detection in industrial environments.

Omron E2E-X12B3DL18 2M Frequently Asked Questions

1. What is the sensing distance?

The nominal sensing distance is 12 mm.

2. What output type does the sensor use?

The sensor uses a PNP normally open output.

3. What connection method is available?

The model includes a factory-installed 2-meter cable.

4. What voltage range is supported?

The operating voltage range is 10 to 30 VDC.

5. Which materials can be detected?

The sensor is designed for conductive metallic objects.

6. What protection ratings are available?

The sensor provides IP67 and IP69K protection ratings.

7. Is the sensor suitable for industrial automation?

Yes. It is widely used in machinery, conveyors, and automated production systems.

8. Does the sensor require physical contact?

No. Detection is achieved through electromagnetic induction.

9. Which industries commonly use this sensor?

Automotive, logistics, packaging, manufacturing, and machine-building industries.

10. Why is non-contact sensing beneficial?

It minimizes mechanical wear and supports reliable long-term operation.
