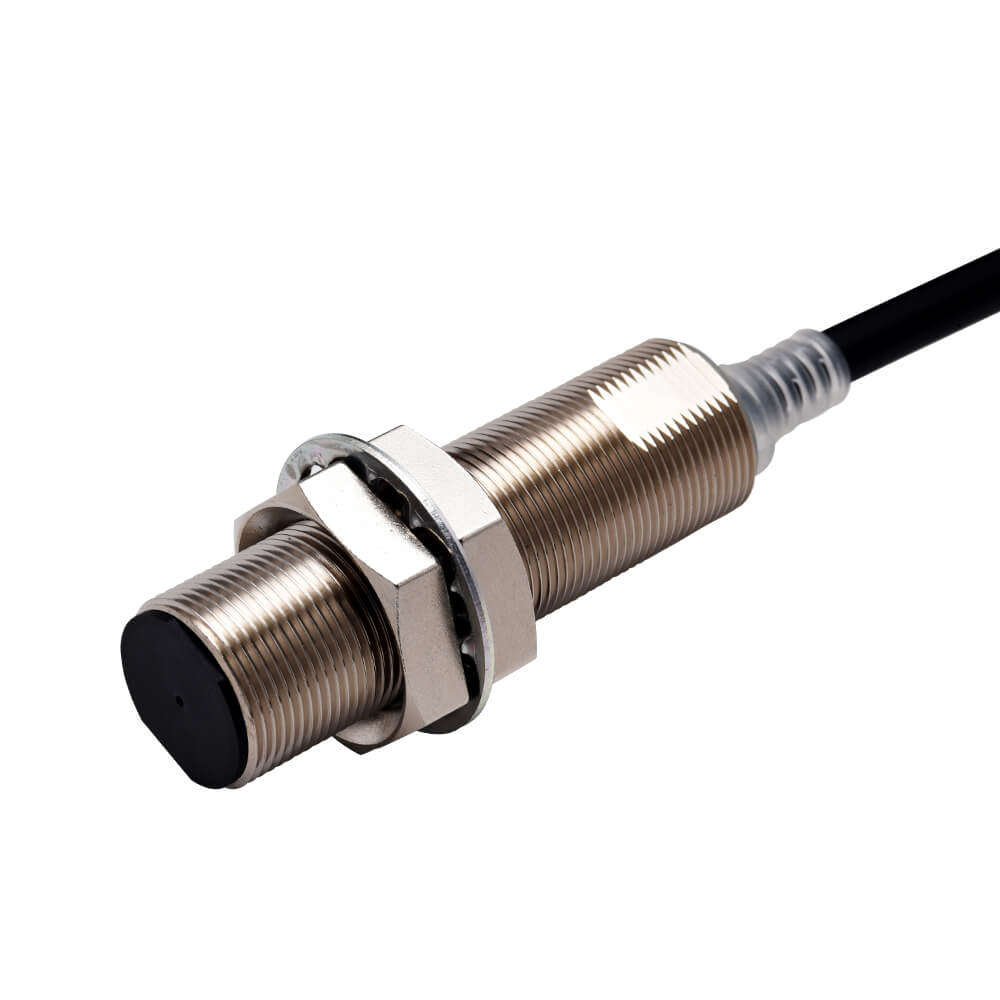

Omron E2E-X12B2L18 2M Inductive Proximity Sensor
| Specification | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Sensing Distance | 12 mm |
| Housing Diameter | M18 |
| Mounting Type | Shielded (Quasi-flush) |
| Output Type | PNP |
| Operation Mode | Normally Open (NO) |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 500 Hz |
| Connection Type | 2 m Oil-Resistant Cable |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP67G / IP69K |
| Operating Temperature | -25°C to +70°C |
| Length | 55.3 mm |
Technical Description
Reliable position sensing plays a critical role in automated machinery and production systems. The Omron E2E-X12B2L18 2M Inductive Proximity Sensor is designed to detect metallic objects without physical contact, helping automation equipment monitor movement, positioning, and process status accurately.
This model features a 12 mm sensing distance within a robust M18 housing and is equipped with a 2-meter pre-wired cable. Its normally open output configuration makes it suitable for control systems that require output activation upon target detection.
Operating Principle
The Omron E2E-X12B2L18 2M Inductive Proximity Sensor generates an electromagnetic field from the sensing face. When a conductive metallic object enters the sensing range, eddy currents are induced in the target material.
The resulting variation in the sensor oscillator is processed internally, causing the normally open output to switch. Because detection occurs without contact, the sensor avoids mechanical wear associated with traditional limit switches.
Main Features
- 12 mm sensing distance
- M18 threaded housing
- PNP normally open output
- 2-meter integrated cable
- Shielded sensing design
- 500 Hz switching frequency
- 10 to 30 VDC operating range
- Nickel-plated brass body
- IP67, IP67G, and IP69K protection levels
- Suitable for industrial automation systems
Typical Applications
- Conveyor automation
- Machine tool equipment
- Packaging systems
- Production machinery
- Transfer mechanisms
- Material handling systems
- Industrial assembly lines
- Automated inspection stations
Industrial Usage Examples
Conveyor Monitoring
The sensor can confirm pallet positions and detect metallic carriers moving through automated transport systems.
Machine Position Verification
Manufacturing equipment often relies on inductive sensors to verify actuator travel limits and machine status conditions.
Assembly Automation
The Omron E2E-X12B2L18 2M Inductive Proximity Sensor may be used to detect metallic components before assembly operations begin.
Packaging Machinery
Packaging systems can use the sensor to monitor mechanical positions and synchronize machine movements.
Advantages
- Non-contact detection technology
- Reduced mechanical wear
- Reliable switching performance
- Resistance to moisture and contaminants
- Suitable for demanding industrial conditions
- Simple installation with pre-wired cable
- Stable operation across a wide temperature range
Important Selection Factors
Engineers should evaluate sensing distance requirements, output logic, installation constraints, target material characteristics, and environmental conditions before selecting the Omron E2E-X12B2L18 2M Inductive Proximity Sensor.
Verification of controller compatibility and available power supply specifications is also recommended during system design.
For broader sensing requirements, additional Omron sensor solutions may be reviewed within the Omron portfolio.
The Omron E2E-X12B2L18 2M Inductive Proximity Sensor is commonly integrated into automated equipment requiring dependable metal object detection. The Omron E2E-X12B2L18 2M Inductive Proximity Sensor supports process monitoring tasks where reliable switching and environmental durability are important considerations.
Frequently Asked Questions
What is the sensing distance?
The sensor provides a nominal sensing distance of 12 mm.
What output type is available?
This model features a PNP normally open output.
What is the cable length?
The sensor is supplied with a 2-meter pre-wired cable.
What voltage range does it support?
The operating voltage range is 10 to 30 VDC.
Can it be used in wet environments?
Yes. The sensor is rated IP67, IP67G, and IP69K.
What type of targets can be detected?
The sensor is designed for metallic object detection.
What is the switching frequency?
The response frequency is 500 Hz.
Which industries commonly use this sensor?
Manufacturing, logistics, packaging, automation, and machine-building industries frequently utilize this model.
Does the sensor require contact with the target?
No. Detection occurs through an electromagnetic sensing field.
What material is used for the housing?
The housing is made from nickel-plated brass.
