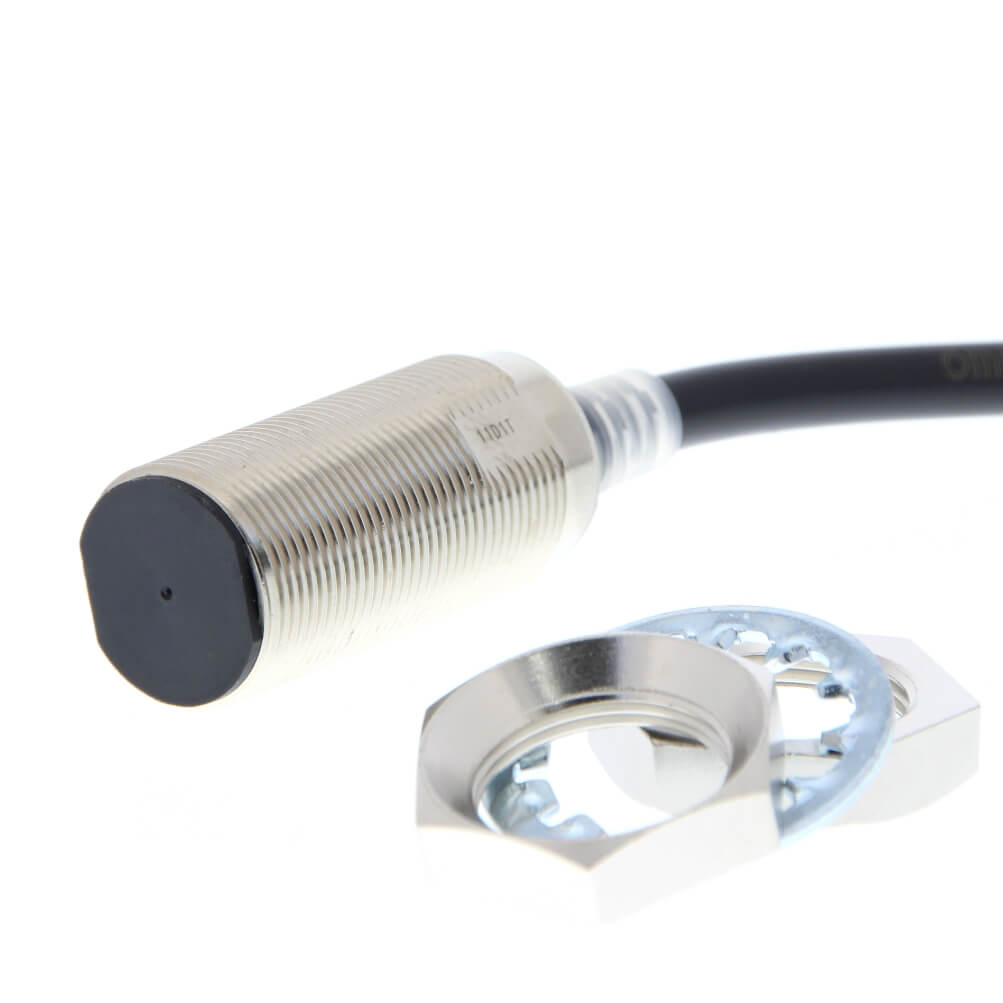

Omron E2E-X11D118-TR 5M Inductive Proximity Sensor

Technical Description

The Omron E2E-X11D118-TR 5M Inductive Proximity Sensor is designed for reliable metal detection in industrial automation environments where extended cable routing and mechanical durability are required. Built with an M18 cylindrical housing and an 11 mm sensing distance, the sensor supports stable detection performance while minimizing installation constraints.

The sensor incorporates a flexible oil-resistant cable specifically intended for applications involving repetitive motion, moving machine sections, cable carriers, and robotic equipment. Its robust mechanical construction and multiple environmental protection ratings make it suitable for demanding industrial environments exposed to moisture, cleaning processes, and contaminants.

The Omron E2E-X11D118-TR 5M Inductive Proximity Sensor is part of the E2E NEXT family, developed to provide extended sensing capabilities while maintaining compatibility with common industrial control architectures.

Omron E2E-X11D118-TR 5M Working Principle

Inductive sensing technology operates by generating a high-frequency electromagnetic field at the sensing surface. When a conductive metallic object enters the sensing area, eddy currents are induced within the target. These currents affect the oscillation circuit inside the sensor, causing the output state to change.

Because no physical contact is required, the sensor can perform continuous detection without mechanical wear. This principle is particularly useful in automated machinery where reliable object presence monitoring is essential for process control and safety.

Main Features and Benefits

• 11 mm sensing distance for extended detection capability.
• Flexible 5-meter robotic cable for moving applications.
• 2-wire DC output simplifies installation.
• Normally Open switching configuration.
• No polarity wiring design.
• Nickel-plated brass housing for mechanical resistance.
• IP67, IP67G, and IP69K environmental protection.
• Oil-resistant cable construction.
• Compact M18 threaded mounting design.

Typical Areas of Use

The Omron E2E-X11D118-TR 5M Inductive Proximity Sensor is widely used in manufacturing systems that require consistent metallic object detection and long cable routing distances.

• Robotic welding stations
• Automated assembly equipment
• Industrial conveyors
• Transfer systems
• Machine tool automation
• Packaging machinery
• Material handling equipment
• Production line monitoring systems

Industrial Applications

Robotic Production Cells

The flexible cable design allows installation on articulated robotic arms where constant movement would place stress on standard cables.

Automated Material Flow

The sensor can monitor metallic carriers, fixtures, and pallets moving through automated transport systems.

Machine Tool Equipment

Position verification, tooling detection, and machine status monitoring can be achieved through reliable inductive sensing.

Packaging Operations

Metal component presence detection within packaging machinery helps maintain accurate equipment sequencing.

Engineers seeking additional sensing technologies can explore Omron sensor series for various industrial automation requirements.

Advantages in Automation Systems

• Contactless operation reduces maintenance requirements.
• Long cable length supports large machine installations.
• High environmental protection enables operation in harsh conditions.
• Reliable detection of metallic targets.
• Suitable for continuous industrial operation.
• Mechanical durability supports demanding production environments.

Important Selection Considerations

• Ensure the target object is metallic.
• Verify that an 11 mm sensing distance meets application requirements.
• Confirm compatibility with the control system input specifications.
• Evaluate available installation space for an M18 sensor body.
• Consider cable routing requirements in moving machinery.
• Review environmental exposure to moisture, oils, and cleaning agents.

The Omron E2E-X11D118-TR 5M Inductive Proximity Sensor is particularly useful in large-scale industrial systems where sensor placement requires longer cable runs without sacrificing sensing performance.

Omron E2E-X11D118-TR 5M Frequently Asked Questions

What type of objects can this sensor detect?

The sensor is designed to detect metallic objects using inductive sensing technology.

What is the rated sensing distance?

The rated sensing distance is 11 mm.

What output configuration is provided?

The sensor features a 2-wire Normally Open output.

Is the cable suitable for moving equipment?

Yes. The flexible robotic cable is intended for applications involving repeated movement.

How long is the cable?

The cable length is 5 meters.

What environmental protection ratings are available?

The sensor is rated IP67, IP67G, and IP69K.

Can it be used in washdown environments?

Yes. The IP69K rating supports operation in environments subject to high-pressure cleaning procedures.

Which industries commonly use this model?

Automotive manufacturing, packaging, robotics, machine building, logistics, and industrial automation sectors commonly use this sensor.
