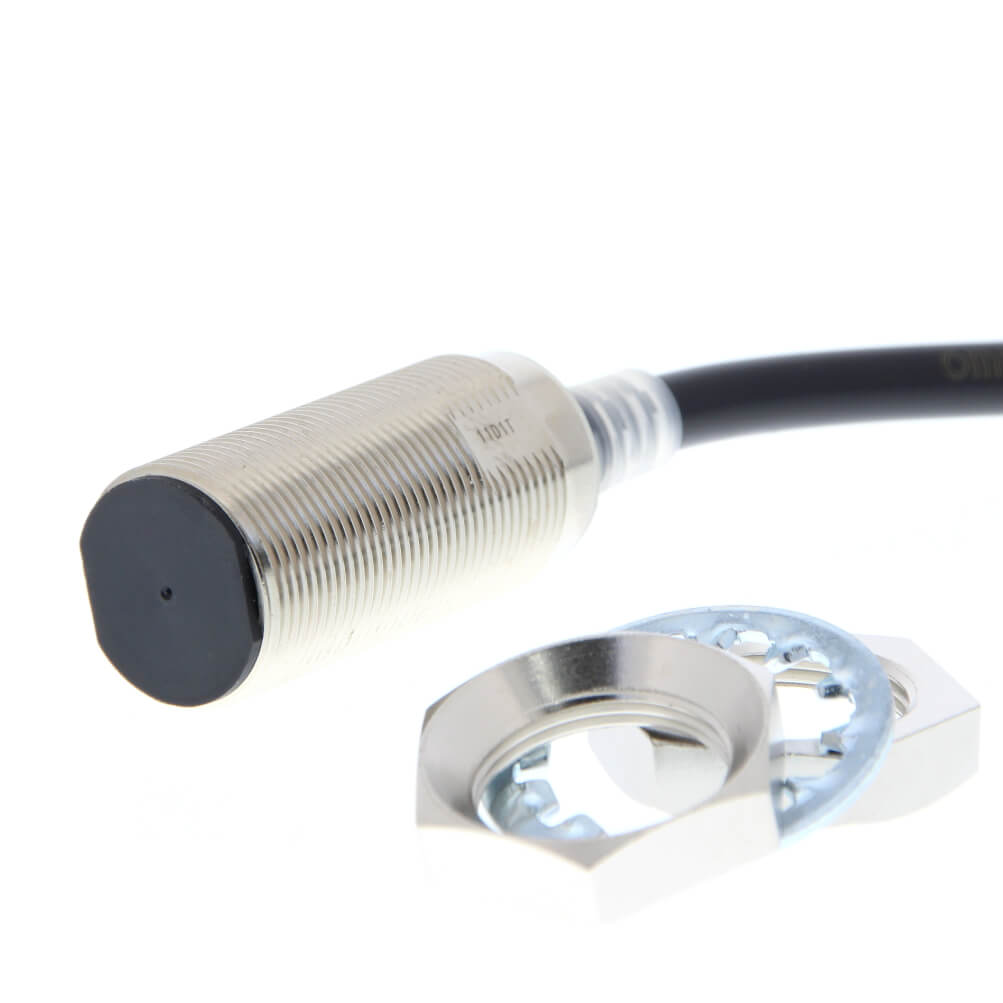

Omron E2E-X11D118 5M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive proximity sensor |
| Series | E2E NEXT |
| Size | M18 |
| Mounting Type | Quasi-flush |
| Sensing Distance | 11 mm |
| Output Type | DC 2-wire |
| Operation Mode | NO |
| Connection Method | Cable |
| Cable Length | 5 m |
| Cable Specification | Oil-resistant PVC |
| Housing Material | Nickel-plated brass |
| Sensing Surface Material | PBT |
| Overall Length | 55.3 mm |
| Thread Length | 33 mm |
| Protection Rating | IP67, IP67G, IP69K |
Technical Description
The Omron E2E-X11D118 5M Inductive Proximity Sensor is an M18 inductive sensor with an 11 mm sensing distance and a DC 2-wire NO output. Its quasi-flush mounting design allows integration into metal machine structures while maintaining defined sensing performance.
The sensor uses a nickel-plated brass housing and an oil-resistant PVC cable. The 5 m cable length supports installation in larger machines, transfer lines, and decentralized automation systems.
Omron E2E-X11D118 5M Operating Principle
The sensor operates by producing an electromagnetic field at the sensing surface. A metallic object entering this field changes the oscillation conditions inside the sensor circuit. The electronics process this change and switch the normally open output.
The Omron E2E-X11D118 5M Inductive Proximity Sensor is suitable for applications requiring robust metal detection without mechanical contact.
Usage Areas
- Metal carrier detection
- Machine position feedback
- Conveyor station monitoring
- Hydraulic and pneumatic actuator position sensing
- Automated transfer confirmation
- Fixture and pallet verification
Industrial Applications
In heavy machinery, this model can detect large metal components or moving mechanical assemblies. In conveyor systems, it may confirm pallet position before transfer. In automated welding cells, it can verify that a fixture is correctly seated before the next process step begins.
Advantages
- M18 housing for industrial mounting
- 11 mm sensing distance
- Quasi-flush installation structure
- NO output operation
- 5 m oil-resistant PVC cable
- IP67, IP67G, and IP69K protection ratings
Sector-Specific Usage Examples
In metal fabrication, the sensor can confirm the presence of steel plates on a fixture. In material handling, it may detect metal pallets on transfer modules. In industrial presses, it can provide feedback from moving slides, guards, or tooling elements.
Selection Considerations
Engineers should evaluate the target material, sensing range, available thread depth, wiring distance, and output mode before choosing this model. For a wider view of compatible sensing components, Omron sensor series can be compared.
Omron E2E-X11D118 5M Frequently Asked Questions
What is the body size?
The sensor has an M18 cylindrical body.
What is the sensing distance?
The sensing distance is 11 mm.
What does quasi-flush mounting mean?
It means the sensor can be installed with a defined degree of embedding in metal while maintaining specified detection behavior.
What output mode does it use?
It uses an NO operation mode.
What is the cable length?
The cable length is 5 m.
What material is used for the housing?
The housing is nickel-plated brass.
Can this sensor be used in wet environments?
The IP67, IP67G, and IP69K ratings support use in demanding environments when installed correctly.
What should be checked during replacement?
Thread size, sensing distance, output logic, cable length, and mounting type should be confirmed.
