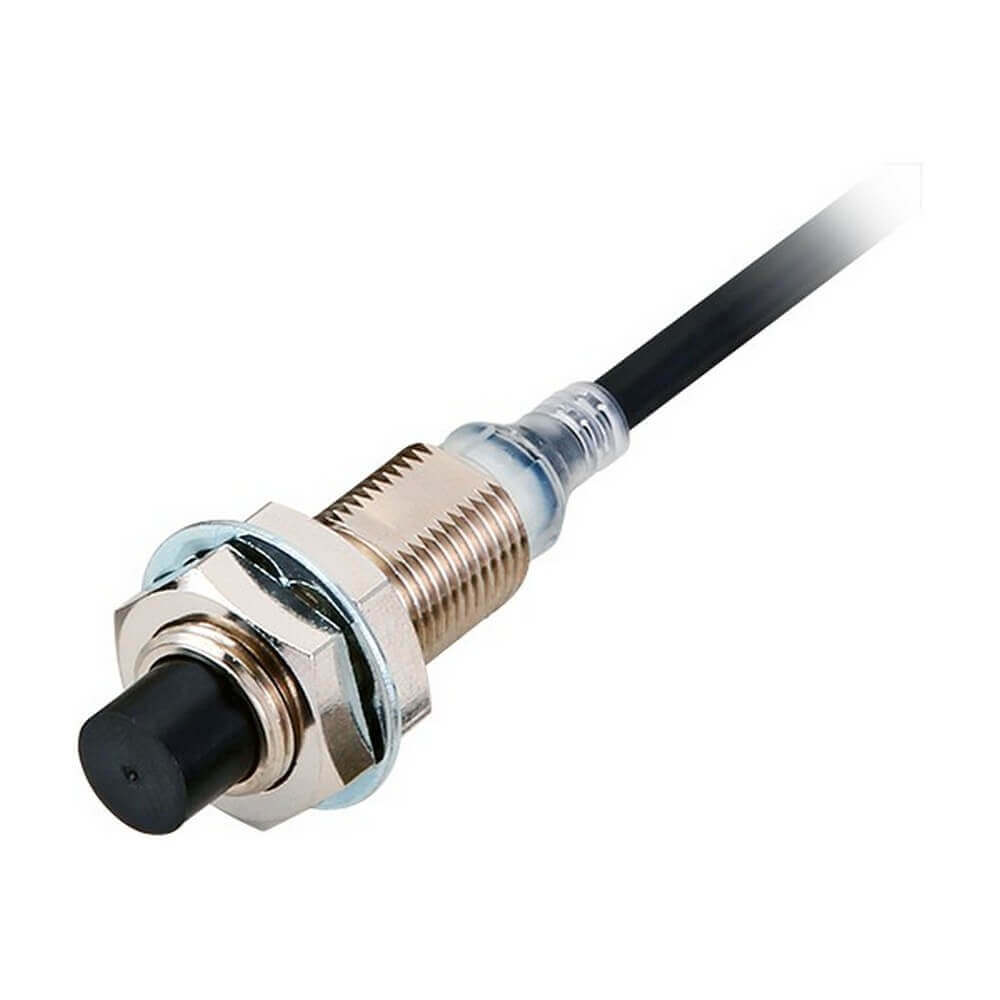

Omron E2E-X10MD212-R 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M12 |
| Mounting Type | Non-flush |
| Sensing Distance | 10 mm |
| Output Type | DC 2-wire |
| Operation Mode | NC |
| Cable Length | 2 m |
| Housing Material | Nickel-plated Brass |
| Cable Material | Oil-resistant PVC |
| Protection Rating | IP67 / IP67G / IP69K |
| Overall Length | 47 mm |
| Thread Size | M12 |
Technical Specifications and Design
Designed for reliable metal object detection, the Omron E2E-X10MD212-R 2M Inductive Proximity Sensor combines a compact cylindrical form factor with a 10 mm sensing range. The sensor belongs to the E2E NEXT series, which is widely used in industrial automation systems that require stable non-contact sensing under continuous operating conditions.
The sensor features a DC 2-wire normally closed output configuration and a durable nickel-plated brass housing. A factory-installed 2-meter cable simplifies installation in machinery where remote wiring connections are required.
How the Sensor Operates
The sensing face generates an electromagnetic field. When a conductive metallic object enters the detection zone, eddy currents are created within the target. These currents alter the sensor oscillator circuit, allowing the output state to change according to the configured switching mode.
The Omron E2E-X10MD212-R 2M Inductive Proximity Sensor performs this process without physical contact, reducing mechanical wear and extending operational reliability.
Common Applications
- Part presence verification
- Machine positioning systems
- Automated assembly equipment
- Transfer and conveyor systems
- Industrial robotics
- Packaging machinery
- Automated sorting equipment
- Manufacturing cells
Omron E2E-X10MD212-R 2M Industrial Use Cases
Automated Production Lines
Used to verify metal component positioning before downstream manufacturing processes begin.
Robotic Workstations
Supports position feedback and end-point confirmation in robotic handling applications.
Food and Beverage Machinery
The IP69K-rated housing allows deployment in equipment exposed to intensive cleaning procedures.
Metal Processing Equipment
Detects workpiece arrival and positioning during machining and fabrication operations.
Benefits in Automation Systems
- Long sensing distance for an M12 sensor body
- Stable metal detection performance
- Compact installation dimensions
- Resistance to water, oil, and dust ingress
- Reduced maintenance requirements due to non-contact operation
- Suitable for demanding industrial environments
- Flexible installation using a 2-meter cable connection
Omron E2E-X10MD212-R 2M Industry Examples
- Monitoring carrier plates in assembly systems
- Detecting fixture movement in welding equipment
- Position sensing in pallet transfer stations
- Detecting metal trays in packaging equipment
- Monitoring actuator stroke positions
The Omron E2E-X10MD212-R 2M Inductive Proximity Sensor is often selected for installations requiring reliable metallic object detection while maintaining simple wiring and installation practices.
Engineers integrating the Omron E2E-X10MD212-R 2M Inductive Proximity Sensor into automation systems should ensure proper mounting clearances associated with non-flush sensor designs.
Factors to Consider During Selection
- Required sensing distance and target dimensions
- Control system compatibility with DC 2-wire sensors
- Environmental exposure levels
- Required switching logic (NC operation)
- Available installation space
- Cable routing requirements
Additional sensing technologies can be reviewed through Omron sensor series.
Frequently Asked Questions
What sensing technology does this sensor use?
It uses inductive sensing technology for detecting metallic objects.
What is the sensing distance?
The nominal sensing distance is 10 mm.
What cable length is supplied?
This model is supplied with a fixed 2-meter cable.
Does the sensor require physical contact with the target?
No. Detection occurs through an electromagnetic field.
What output type is provided?
The sensor uses a DC 2-wire normally closed output.
Can it operate in wet environments?
Yes. The enclosure supports IP67, IP67G, and IP69K protection levels.
Which materials can be detected?
The sensor is designed primarily for metallic targets.
Which industries commonly use this sensor?
It is frequently used in manufacturing, robotics, packaging, logistics, and machine-building applications.
