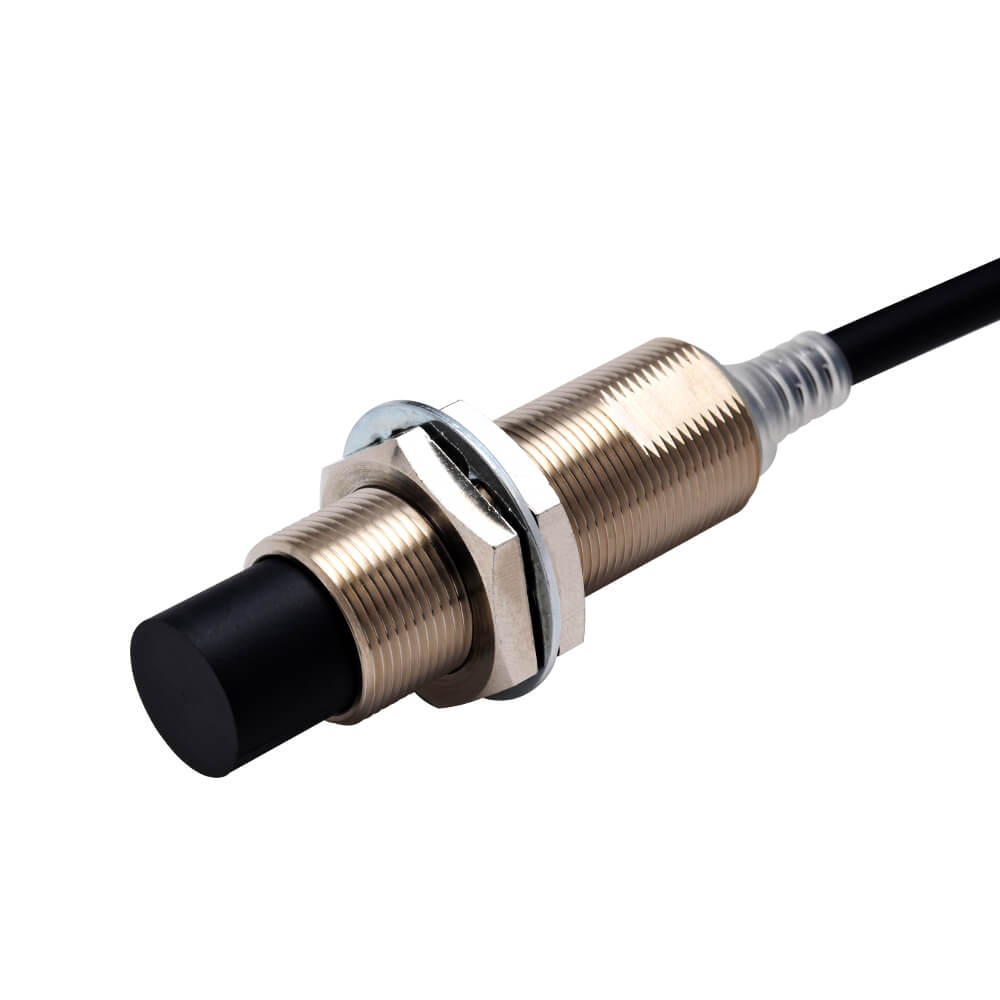

Omron E2E-X10MC1L18 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M18 |
| Mounting Type | Non-flush (Unshielded) |
| Sensing Distance | 10 mm |
| Output Type | NPN Normally Open (NO) |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | Pre-wired Cable |
| Cable Length | 2 m |
| Response Frequency | 400 Hz |
| Housing Material | Nickel-plated Brass |
| Protection Rating | IP67 / IP69K |
| Operating Temperature | -40°C to +85°C |
Technical Overview
The Omron E2E-X10MC1L18 2M Inductive Proximity Sensor is a cylindrical M18 sensing device designed for non-contact detection of metallic objects in industrial automation systems. This model belongs to the E2E NEXT family and utilizes inductive sensing technology to identify the presence of metal targets without physical contact.
The sensor incorporates an NPN normally open output configuration and operates from a DC power supply ranging between 10 and 30 VDC. Its unshielded design provides a 10 mm sensing distance while maintaining reliable detection performance in manufacturing and material handling environments.
The Omron E2E-X10MC1L18 2M Inductive Proximity Sensor is frequently integrated into machine automation projects where consistent position detection is required. The nickel-plated brass housing enhances durability while IP67 and IP69K protection ratings support operation in demanding industrial conditions.
Omron E2E-X10MC1L18 2M Working Principle
Inductive proximity sensors generate a high-frequency electromagnetic field from the sensing face. When a metallic object enters this field, eddy currents are induced within the target material. These currents alter the oscillator characteristics inside the sensor.
The internal electronics continuously monitor these changes. Once the target reaches the specified sensing distance, the output switches state and sends a signal to a PLC, controller, relay module, or industrial I/O device.
This detection method eliminates mechanical wear because no physical contact occurs between the sensor and the target.
Key Application Areas
- Conveyor position monitoring
- Automated assembly systems
- Packaging machinery
- Metal component detection
- Transfer line automation
- Machine tool position sensing
- Industrial robotics
- Material handling equipment
Industrial Applications
The Omron E2E-X10MC1L18 2M Inductive Proximity Sensor can be found in various industrial sectors where reliable metal detection is required.
Automotive Manufacturing
Used for detecting vehicle body components, fixture positions, and automated assembly movements.
Packaging Industry
Supports position verification of metallic machine parts and moving assemblies within packaging lines.
Machine Building
Provides feedback for actuators, indexing systems, and machine positioning mechanisms.
Material Handling Systems
Monitors metal carriers, pallets, and transport equipment moving through automated production areas.
Omron E2E-X10MC1L18 2M Advantages
- Non-contact sensing minimizes mechanical wear.
- 10 mm sensing distance allows flexible installation.
- NPN NO output supports common industrial control systems.
- Wide operating temperature range from -40°C to +85°C.
- Nickel-plated brass housing offers mechanical durability.
- IP67 and IP69K protection support washdown environments.
- 400 Hz response frequency enables fast detection.
- Suitable for continuous industrial operation.
Industry-Specific Examples
In a metal fabrication facility, the sensor can confirm the presence of steel workpieces before robotic processing begins.
In automated warehouse systems, it can verify the position of metallic carriers moving between conveyor zones.
Within food processing equipment, it may be used to monitor stainless-steel machine components while maintaining resistance to cleaning procedures.
In machine tool applications, the sensor can provide position feedback for moving fixtures and indexing assemblies.
Selection Considerations
- Verify that the target material is metallic.
- Confirm that a 10 mm sensing range is sufficient.
- Check compatibility with NPN control inputs.
- Consider available mounting space for the M18 body.
- Evaluate environmental exposure to water, dust, and chemicals.
- Ensure the required cable length matches installation needs.
- Review response frequency requirements for moving targets.
Additional Omron Sensor Solutions
Engineers seeking broader sensing technologies can explore Omron sensor products for additional automation applications and system integration requirements.
Omron E2E-X10MC1L18 2M Frequently Asked Questions
1. What type of sensor is the Omron E2E-X10MC1L18 2M?
It is an inductive proximity sensor designed to detect metallic objects without physical contact.
2. What is the sensing distance?
The sensor provides a nominal sensing distance of 10 mm.
3. Which output configuration is used?
The unit features an NPN normally open (NO) output.
4. What supply voltage is required?
The operating voltage range is 10 to 30 VDC.
5. Is the sensor suitable for washdown environments?
Yes. The housing is rated IP67 and IP69K for demanding industrial environments.
6. What is the response frequency?
The sensor supports switching frequencies up to 400 Hz.
7. Where is the Omron E2E-X10MC1L18 2M Inductive Proximity Sensor commonly used?
Typical applications include conveyors, assembly systems, machine tools, robotics, and material handling equipment.
8. What housing material is used?
The sensor body is manufactured from nickel-plated brass for mechanical durability and industrial reliability.
